SAAS Black Oil Separator Catch Can Ford Ranger PJ PK 3.0 Turbo Diesel 2006-11

SAAS Oil Separator Catch Can Ford Ranger PJ PK 3.0 Turbo Diesel 2006-2011

Suits the 3.0-litre Turbo Diesel in the PJ PK Ranger from 2006-2011

An oil separator kits protect your modern diesel engine by sustainably reducing the amount of oil entering the engine from blow-by gas in the crankcase ventilation system.

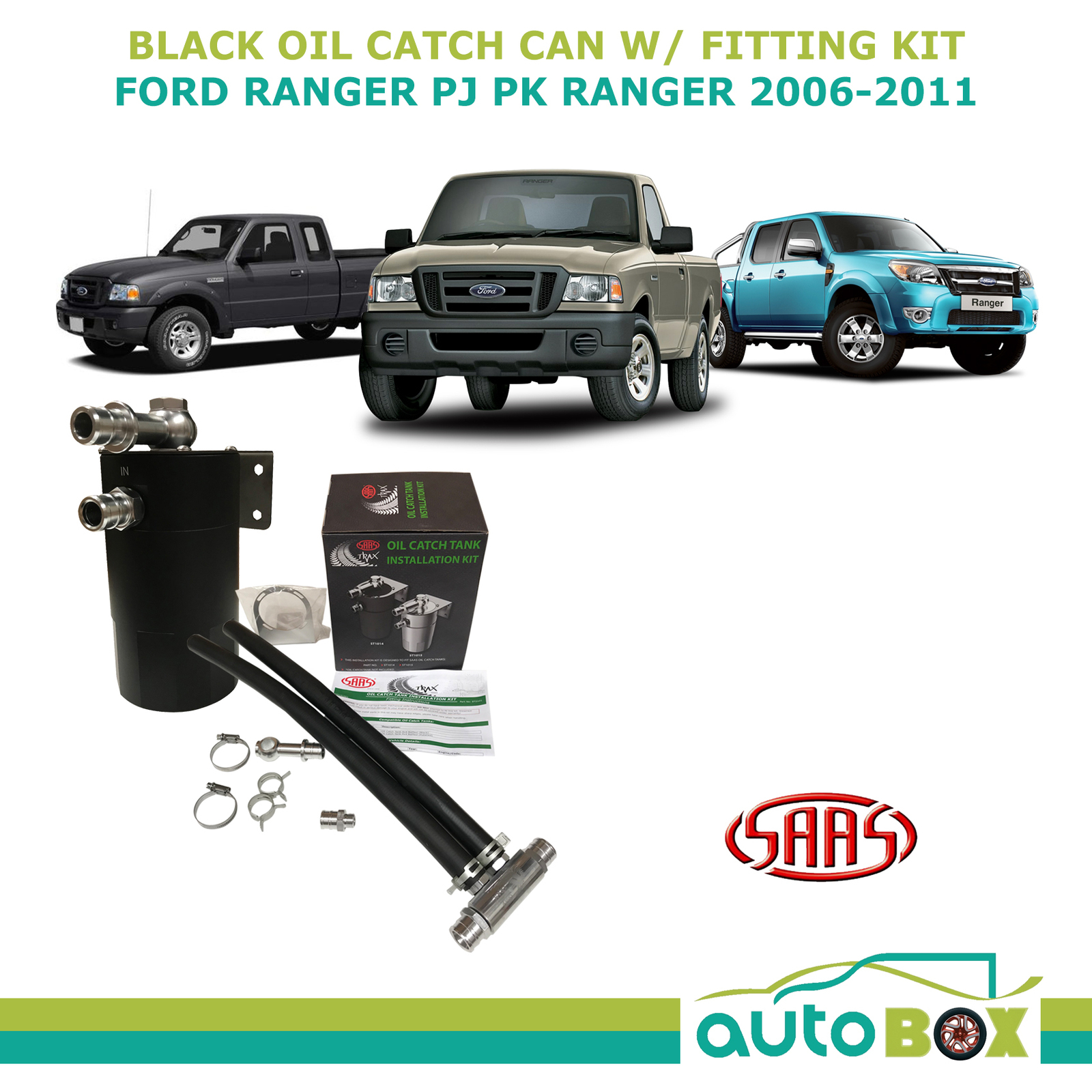

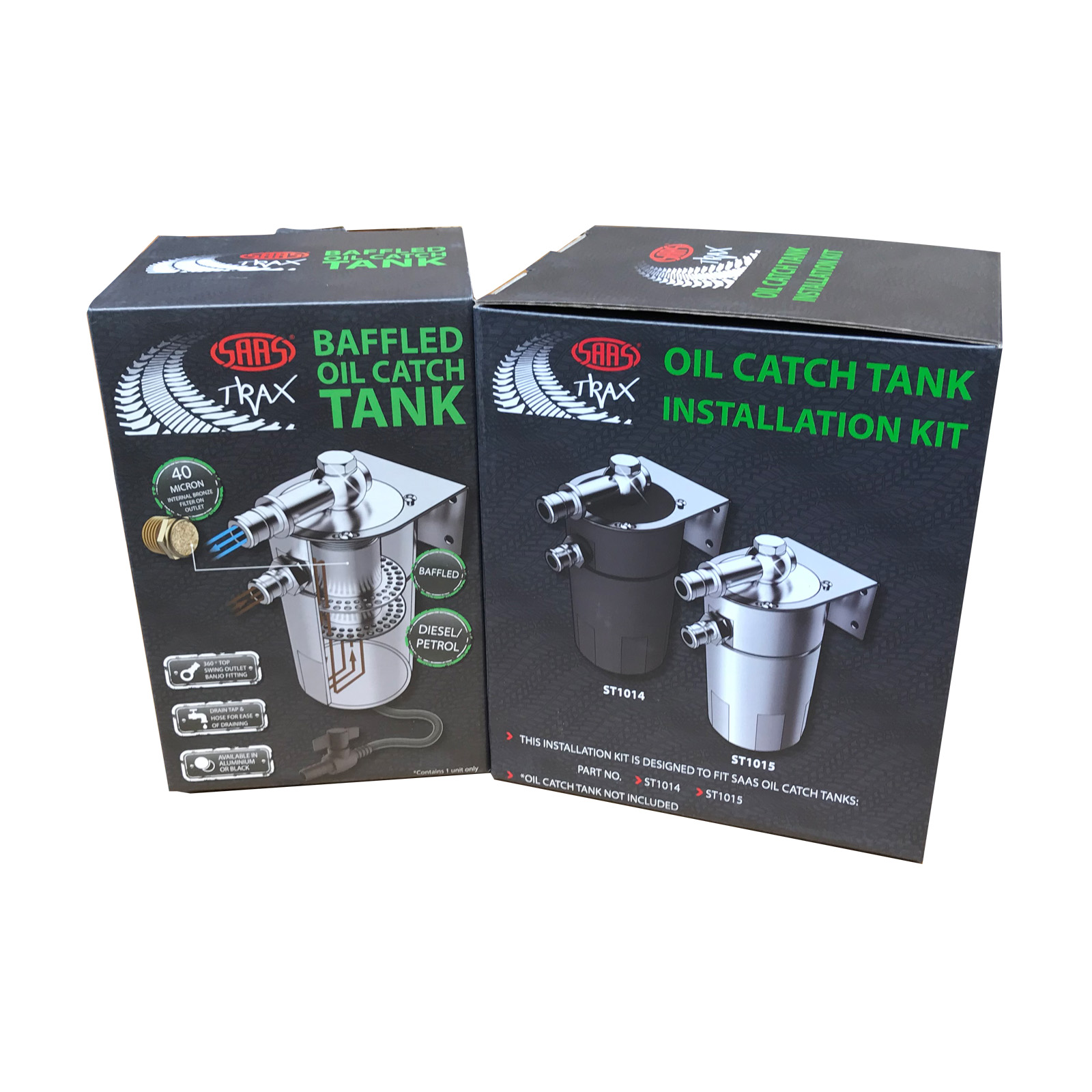

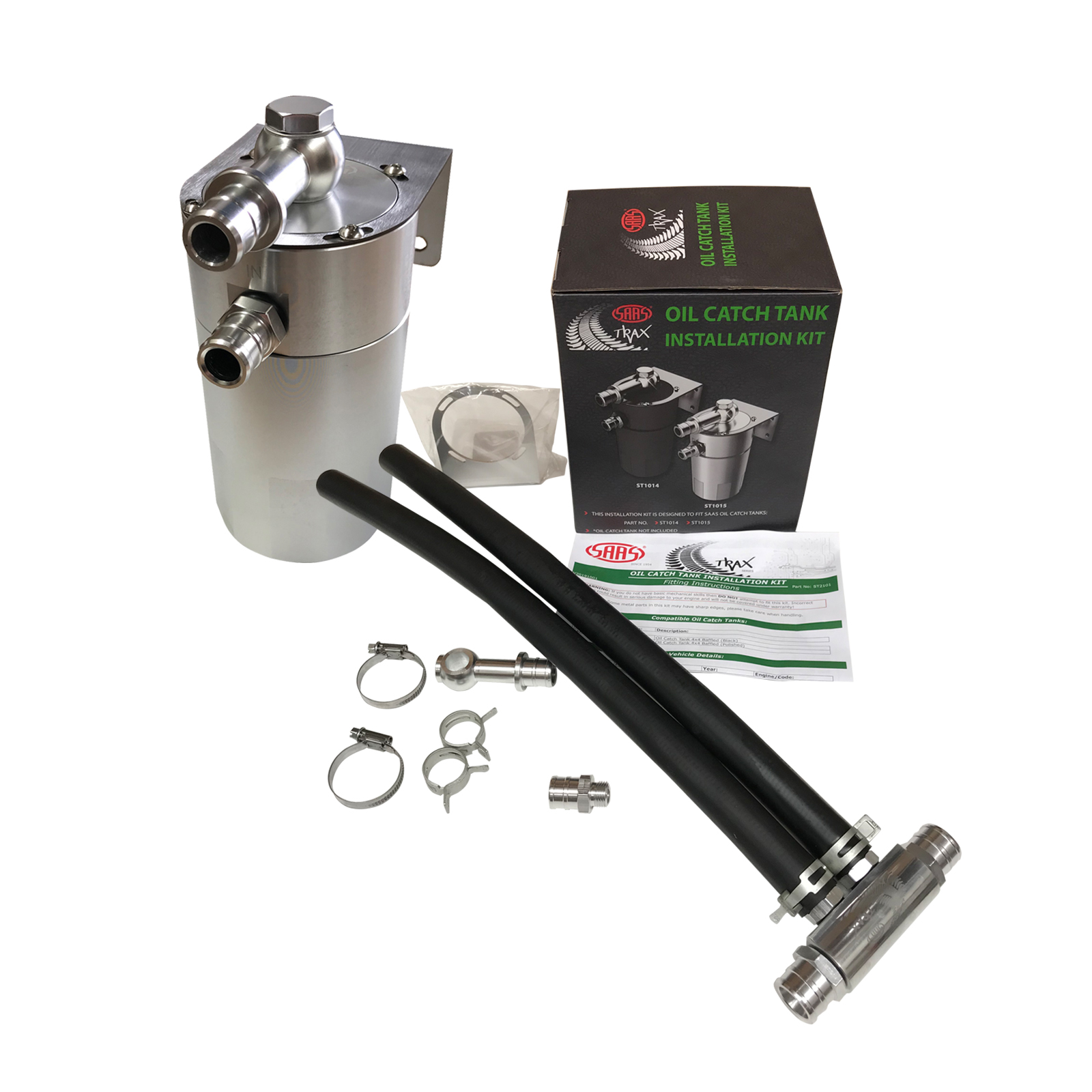

Kit includes:

• SAAS Black Oil Catch Can
• SAAS Oil Catch Can Fitting kit for the PJ PK Ranger including all hardware and instructions required

Compact 4WD internal baffled catch tank for all diesel and petrol engine vehicles.

The tank has been designed with unique push-in lock fittings (no need for hose clamps), and a 3-way rotating mounting option bracket so the tank can be secured in all directions.

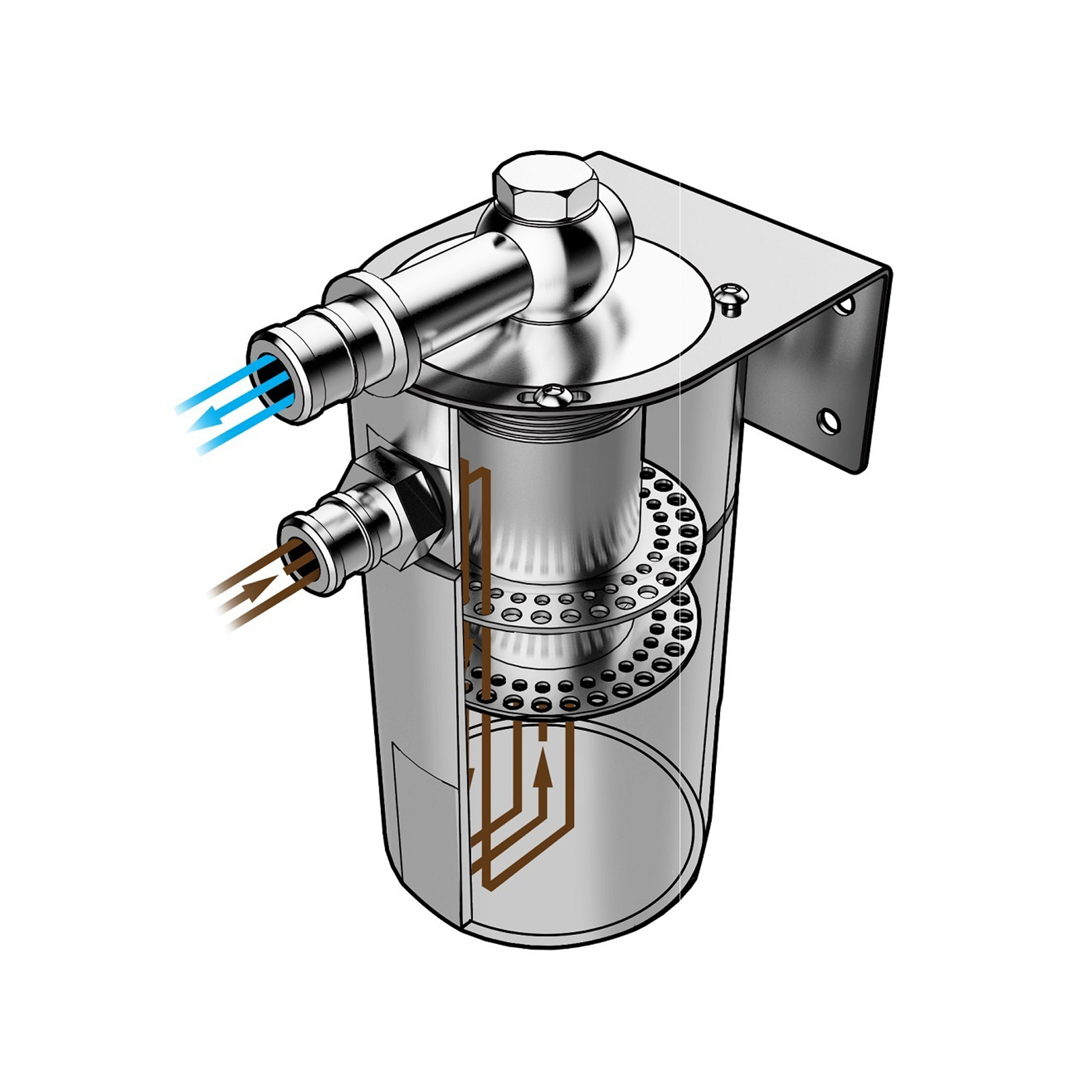

The internal pipe is directed to the bottom of the tank, which allows the oil to reside on the bottom (allowing clean air to vent back through the baffle system, free from oil).

Tank includes a 40 Micron bronze filter on outlet designed to separate oil particles from the air.

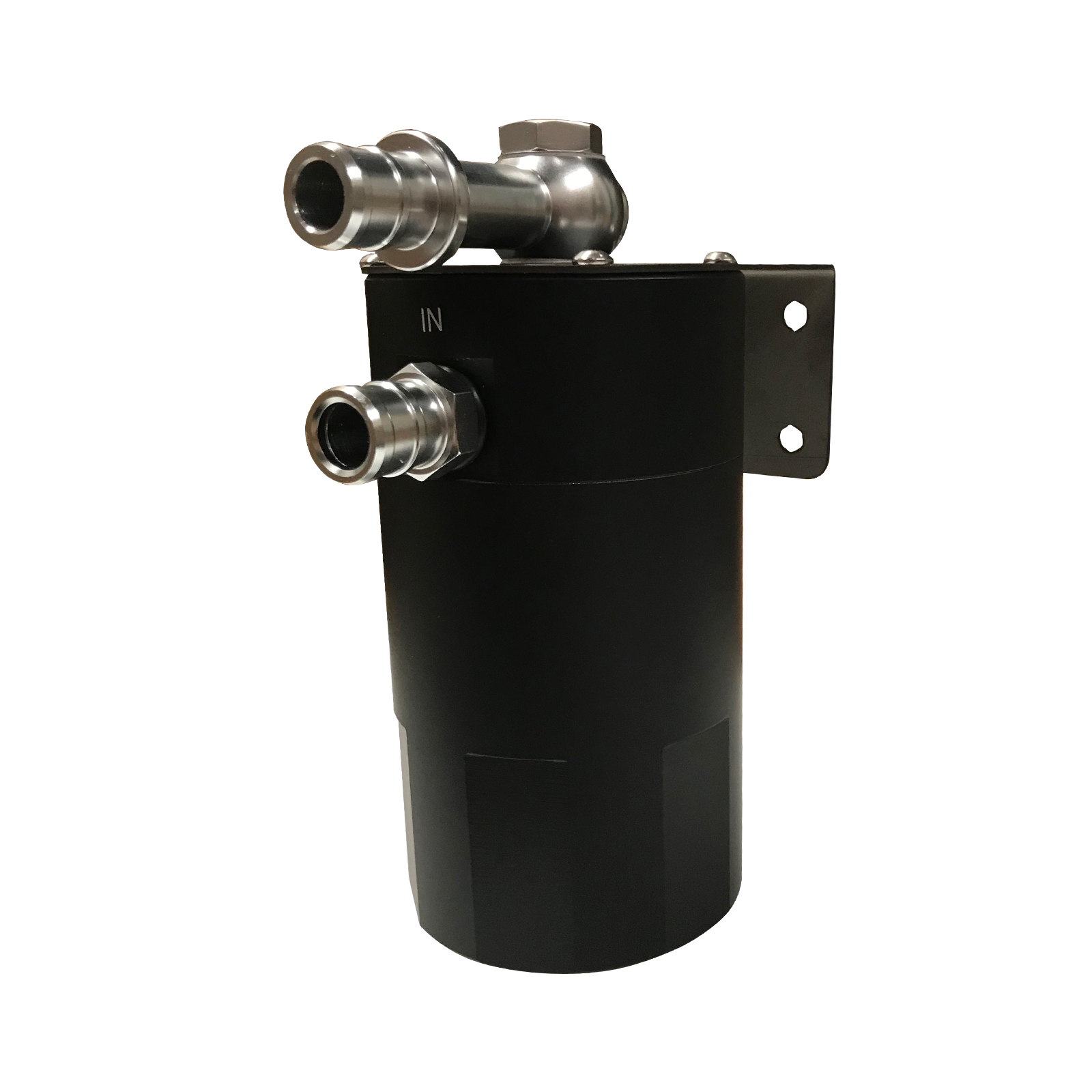

Catch Can:

• 500 cc capacity
• 180mm (height)
• 80mm (width)
• Machined from T6061 grade billet aluminium
• Internal Baffles
• 3-way rotating mounting option
• 360 degree Top Swing Banjo Outlet fitting
• Push-in lock Fittings (no need for hose clamps)
• Supplied with 16mm hose fittings (ID~12mm) (thread is M16 x 1.5)
• Supplied with 600mm Drain hose with tap and tank fitting
• Colour Black (Silver also available)

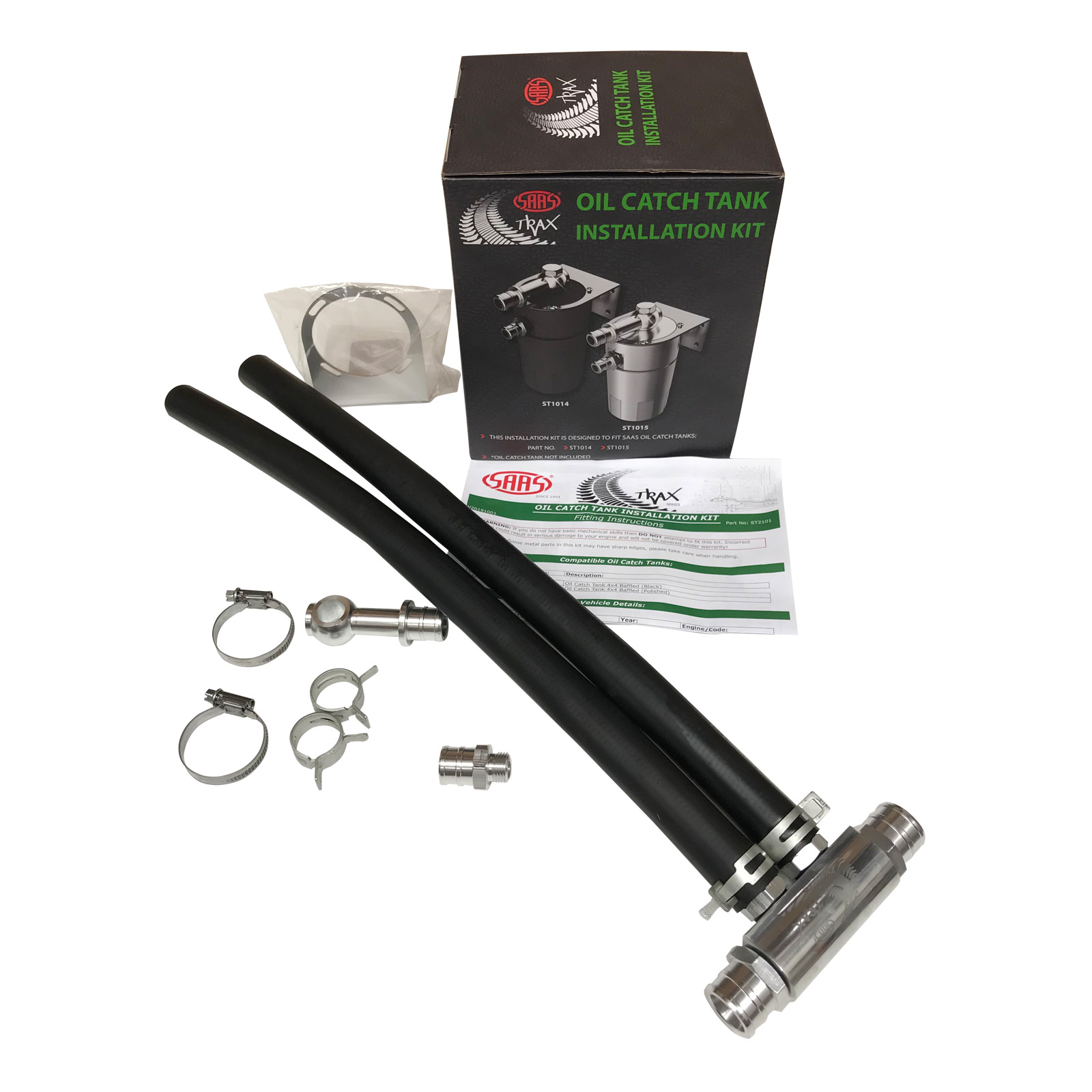

Fitting Kit:

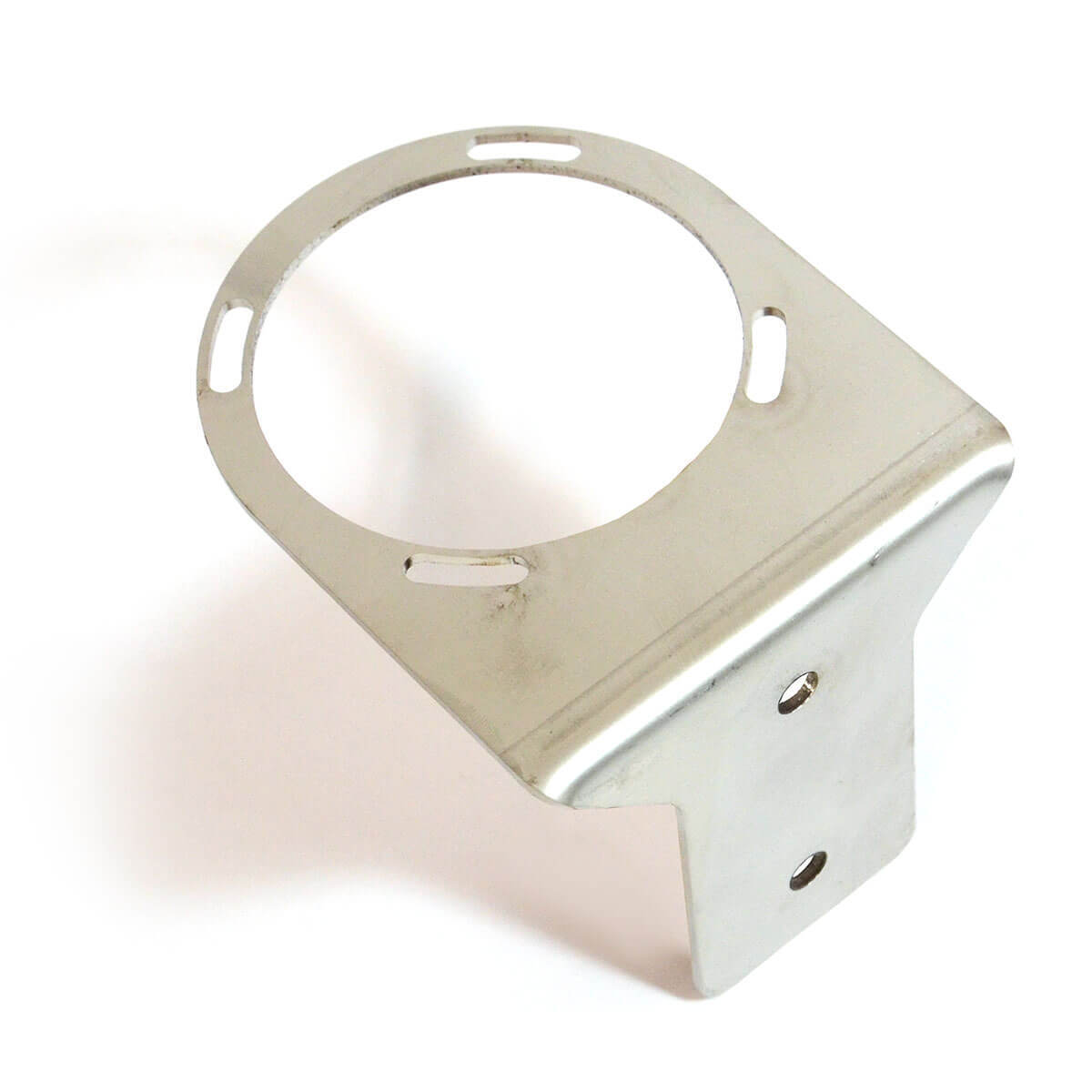

• Tank bracket which fits left inner guard behind the headlight
• 19mm Hose and fittings to suit Ford Ranger installation
• Hose splitter box (pre-installed) as shown in the photo, making for easy installation
