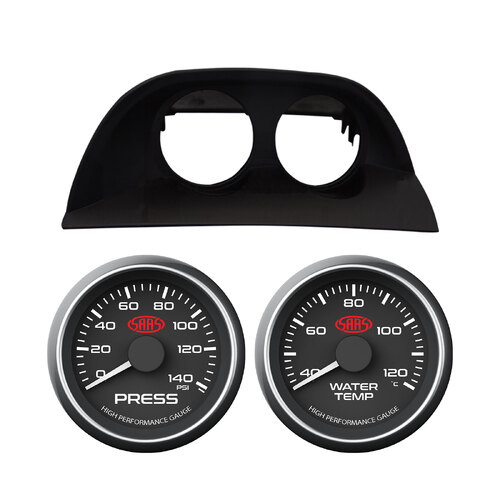

SAAS Clip In Dual Gauge Pod Black Series Oil Pres Water Temp for VY VZ Commodore

SAAS Clip In Dual Gauge Black Pod Oil Pres Water Temp Black Series for VY VZ Commodore

SGPVYVZB-SGOP52B-SGWT52B

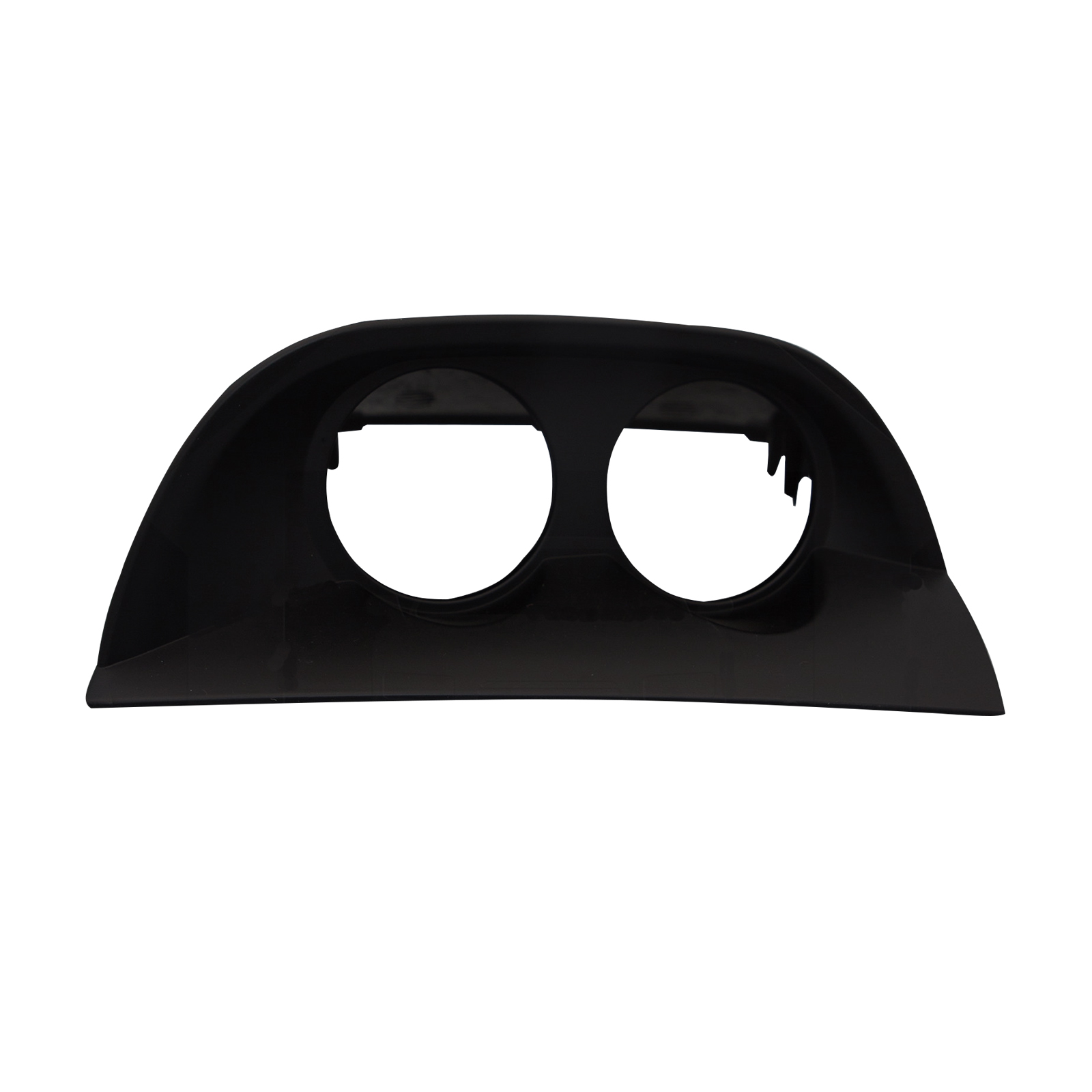

SAAS Clip In Dual Gauge Black Pod for VY VZ Commodore
Suita VY and VZ
Holden Commodore

SGPVYVZB

Features:

• Clips into dash (no screws required) above Air Vents
• Accommodates 2 x 52mm Gauges. Gauges NOT included, but can be purchased separately in our Store
• Please see Fitting Instructions to understand how easy these are to fit. There is a need to cut a small piece of behind dash plastic away
• Uses original clips to hold in place
• Every effort has been made to match the original Graphite interior colour, slight variations can occur
• Will only fit VY VZ Commodores with Turn Dial Air Con Controls - not Climate Control. (The panel is a different size in a climate control car and not available)

Note:

• Factory dash must have removable panel to allow fitment
• Will not fit with cars with dash compartment (lift up lid)

SAAS Oil Pressure Gauge 0-140psi 52mm Black Muscle Series

SGOP52B

Engine oil pressure is one your engine's most vital signs and monitoring for any variation is critical. Keep an eye on pressure movement and make a interior design statement at the same time with our Muscle series of gauges.

Features:

• 0-140 PSI Pressure Range
• LED lighting with 4 colour options
• Micro switch for backlight changes
• Replacement spares available (see below)

Contents:

• Oil Pressure Gauge
• Oil Pressure Sender
• SGA-320051 Brass Adaptor Bush (3/8" NPT - 1/8"NPT)
• Wiring Loom
• Mounting Bracket and fittings

Notes:

The sender is most commonly piggy backed off the OE oil pressure sender/switch using a brass T-Adaptor. Alternatively, consider using a SAAS oil filter sandwich plate that provides up to 3 sender ports for accessories.

Should the standard sender wire not be long enough, splice in an additional length of wire with a gauge NO GREATER than supplied loom wire. SAAS recommends <= 20AWG wire. Use of a heavier gauge wire or of too greater length will impact resistance and distort temperature readings.

SAAS Water Temperature Gauge 40°-120° 52mm Black Muscle Series

SGWT52B

Keep an eye on your vehicle's water temperature and be on the alert for possible overheating or other potential engine issues.

Features:

• 40°-120° Temperature Range
• LED lighting with 4 colour options
• Micro switch for backlight changes
• Replacement spares available (see below)

Contents:

• Water Temp Gauge
• Water Temperature Sender
• SGA-320051 Brass Adaptor Bush (3/8" NPT - 1/8"NPT)
• Wiring Loom
• Mounting Bracket and fittings

Notes:

The sender can be mounted directly into an available water temp port (for example, inlet manifold), piggy backed off the OE sender/switch using a brass T-Adaptor or most commonly, into a top radiator hose inline t-piece. Should the standard sender wire not be long enough, splice in an additional length of wire with a gauge NO GREATER than supplied loom wire. SAAS recommends <= 20AWG wire. Use of a heavier gauge wire or of too greater length will impact resistance and distort temperature readings.
