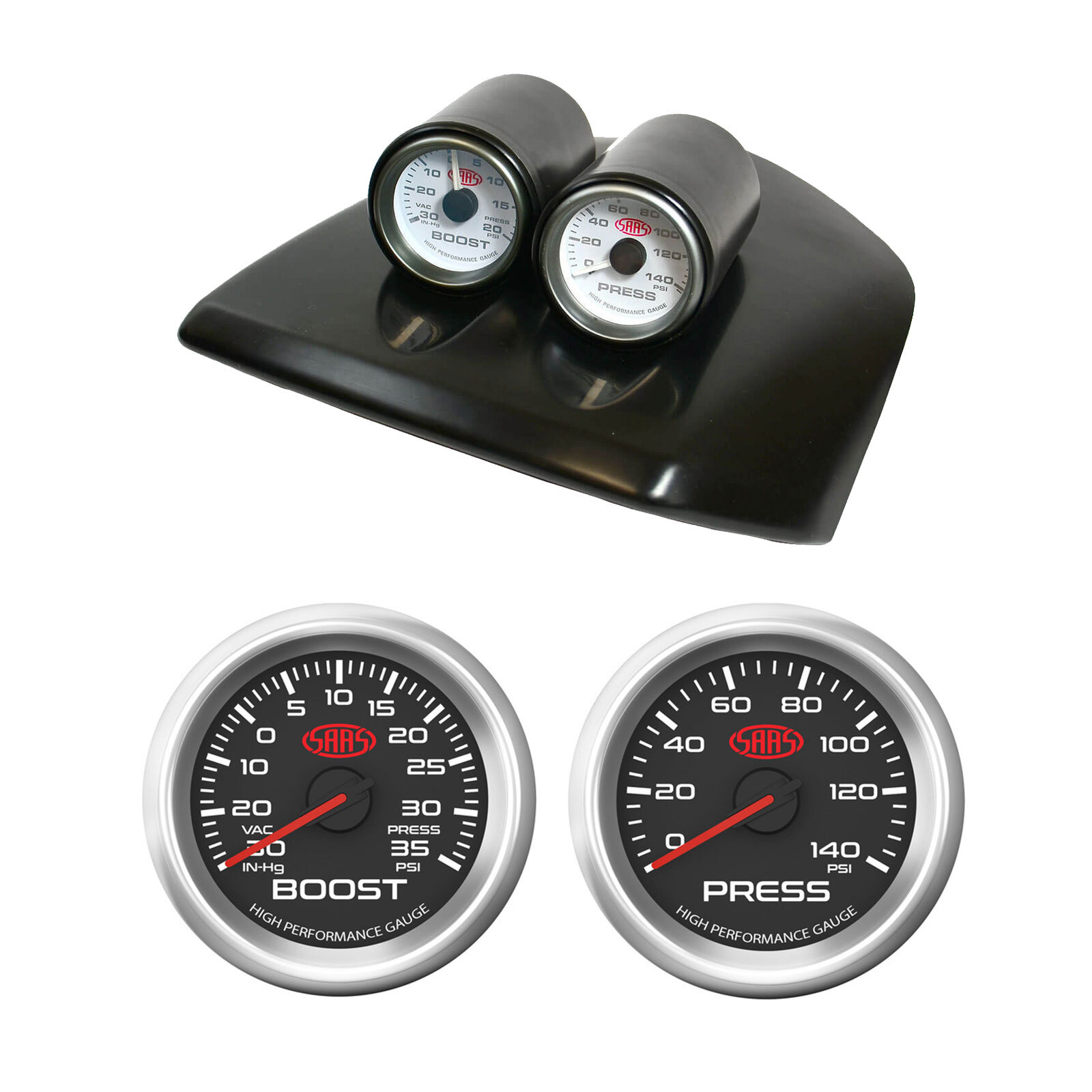

Clip In Dual Gauge Dash Pod Black Ser 3 Boost Oil Pres for Falcon FG MKII 11-16

Clip In Dual Gauge Dash Pod Black Ser 3 Boost Oil Pres for Falcon FG MKII 11-16

SGP2203-SG32211-SG32230

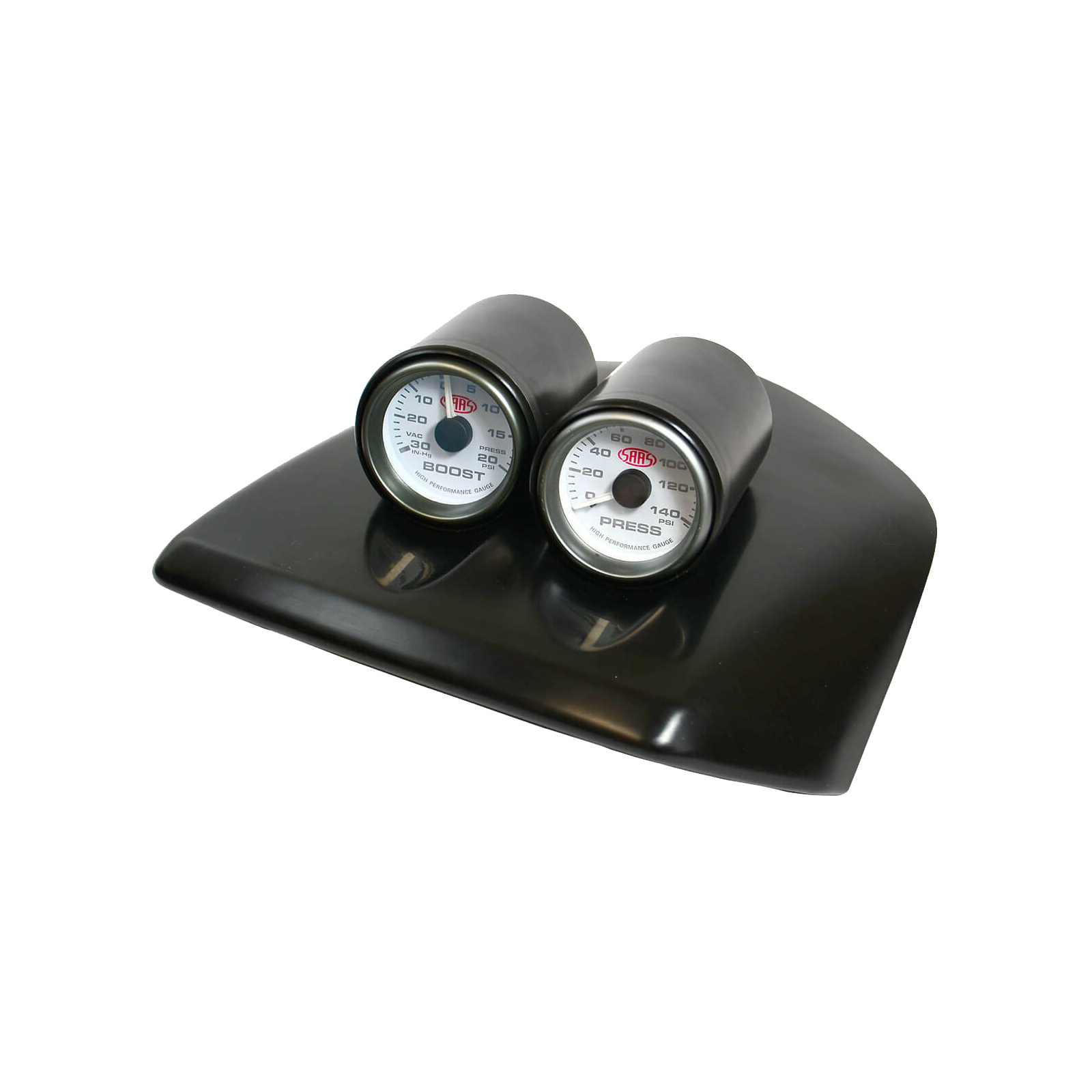

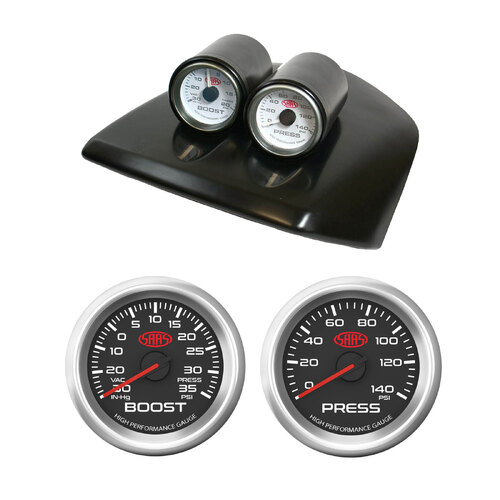

SAAS Clip In Gauge Dual Black Pod for Ford Falcon FG Series 2 MKII FG-X 2011-2016
Holder Suits 2 x 52mm Gauges

SGP2203

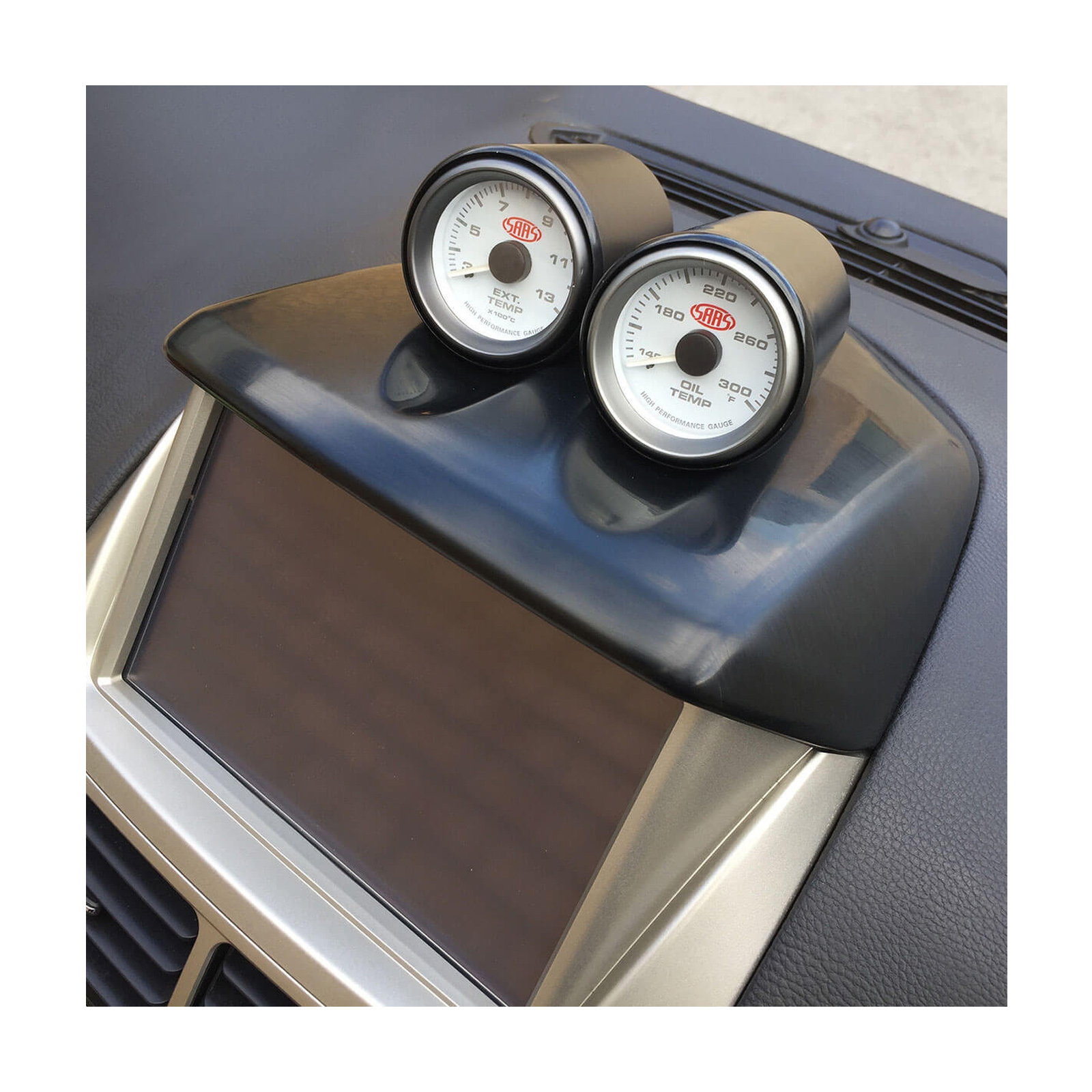

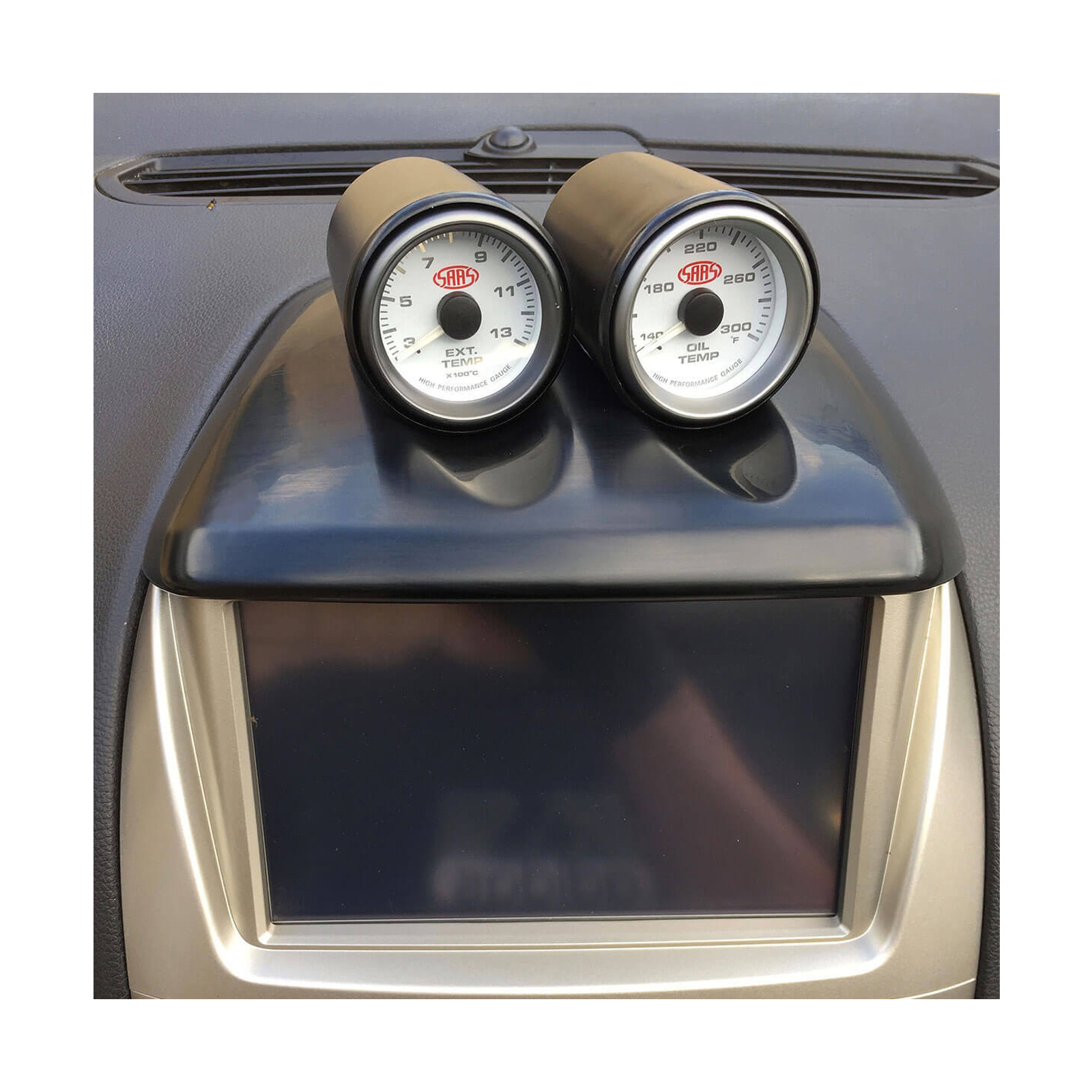

Finally - a dash pod system that fits with Ford's FG MKII and FG-X factory 8 inch touchscreen centre stack.

Designed right here in Melbourne, Australia and fabricated locally to boot, the SAAS SGP2203 Dash Pod uses an OEM style ABS plastic for a compatible factory look.

Features:

• Fits all models from 2011 - 2016 with factory 8" touchscreen
• Dual 52mm Gauge Pods suitable for our range of SAAS Gauges
• Gauge Pods recessed into the base for better forward vision
• Pods discreetly angled towards the driver
• Full clip-in design replacing factory dash (ICC) cover - no other mods required
• Dash Pod can be installed in under 5 minutes (excluding gauges)
• Finished in a raw Black ABS (brushed) for easy colour matching

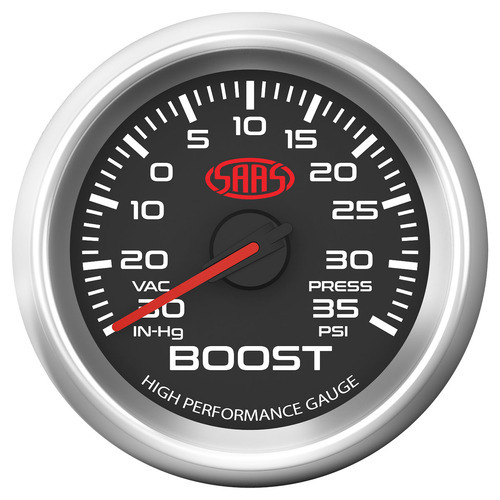

SAAS Boost Gauge 30inHg-35psi 52mm Black Muscle Series 3

SG32211

A boost gauge is an instrument that is used to show the amount of pressure a turbo charger or super charger is producing. Typically, a turbo or super charger system is designed to give the maximum benefit at a particular amount of boost pressure. By monitoring the boost gauge, you are able to keep the vehicle's engine components in the proper power range to achieve the most performance from your vehicle.

SAAS Boost/Vac Gauges are effectively two gauges in one measuring both manifold pressure and vacuum. The stylish and easy to read face make it a breeze to monitor when your boost transitions in. For diesel engines please refer to our Diesel only gauges.

Features:

• Gauge Diameter: 52mm/2"
• Gauge Operating Range: 30 inHg-35psi
• Polished Bezel Surround
• Rear set colour change button

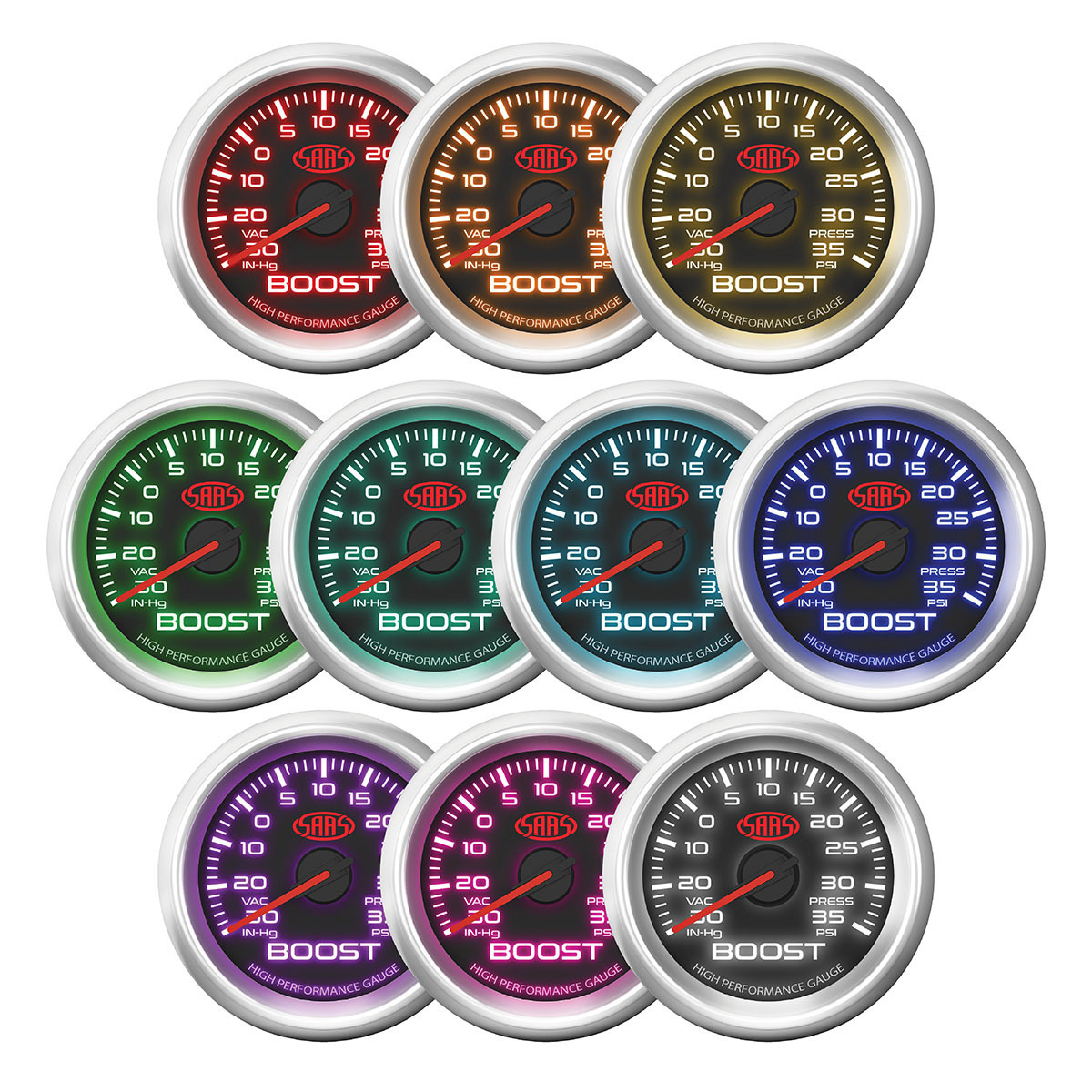

• 10 Colour Backlight options: Red, Red amber, Orange, Green, Aqua, Cyan, Blue, Purple, Pink & White

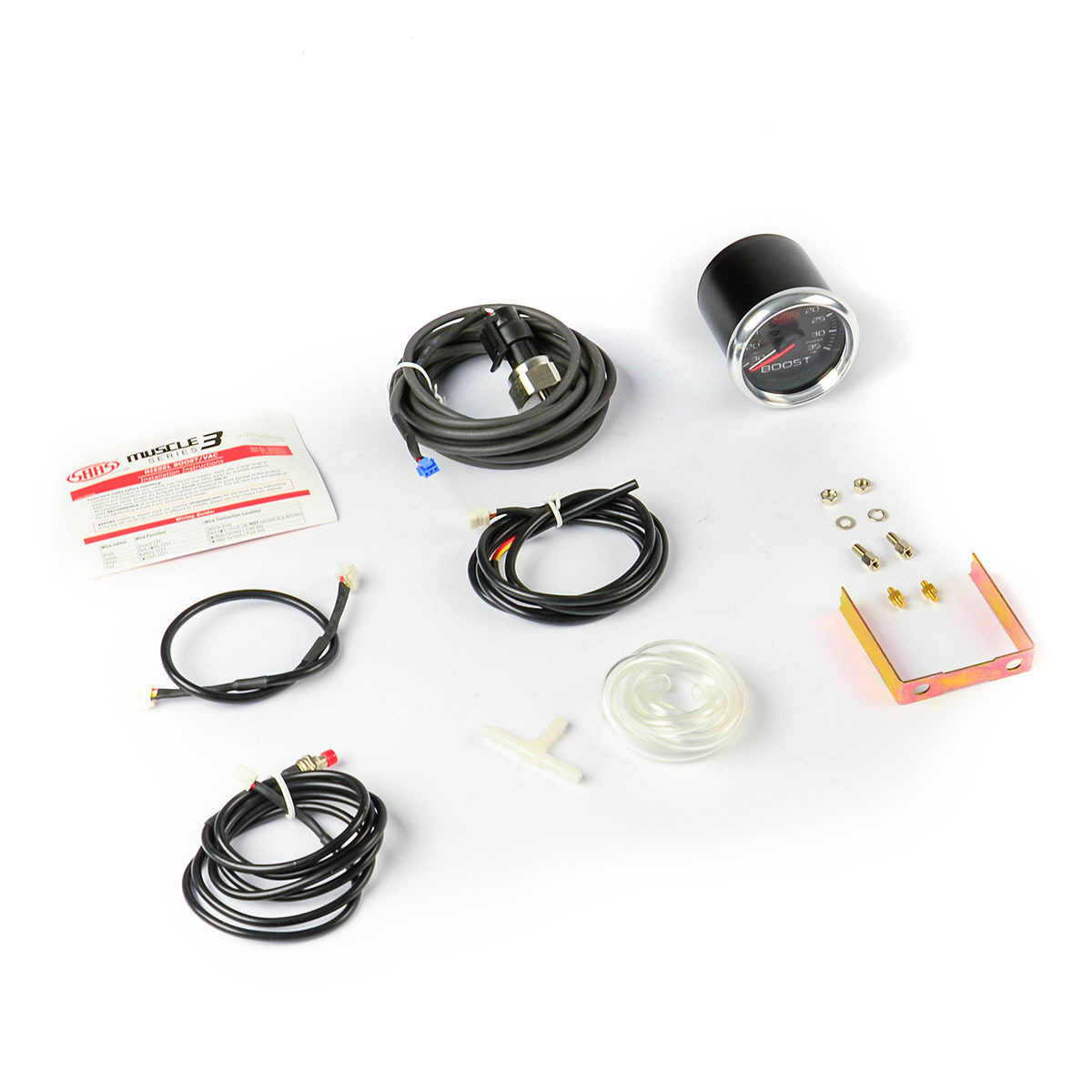

• Includes all mounting hardware, bracket and sender
• 5 levels day / night dimming function
• User pre-set warning functions
• Advanced stepper motor technology

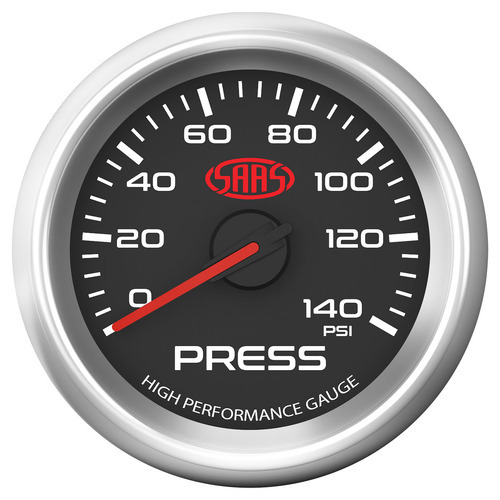

Oil Press Gauge 0-140psi 52mm Black Muscle Series 3

SG32230

Engine oil pressure is one your engine's most vital signs and monitoring for any variation is critical. Keep an eye on pressure movement and make a interior design statement at the same time with our Muscle series 3 of gauges.

Features:

• Gauge Diameter: 52mm/2"
• Gauge Operating Range: 0-140 PSI
• Polished Bezel Surround
• Rear set colour change button

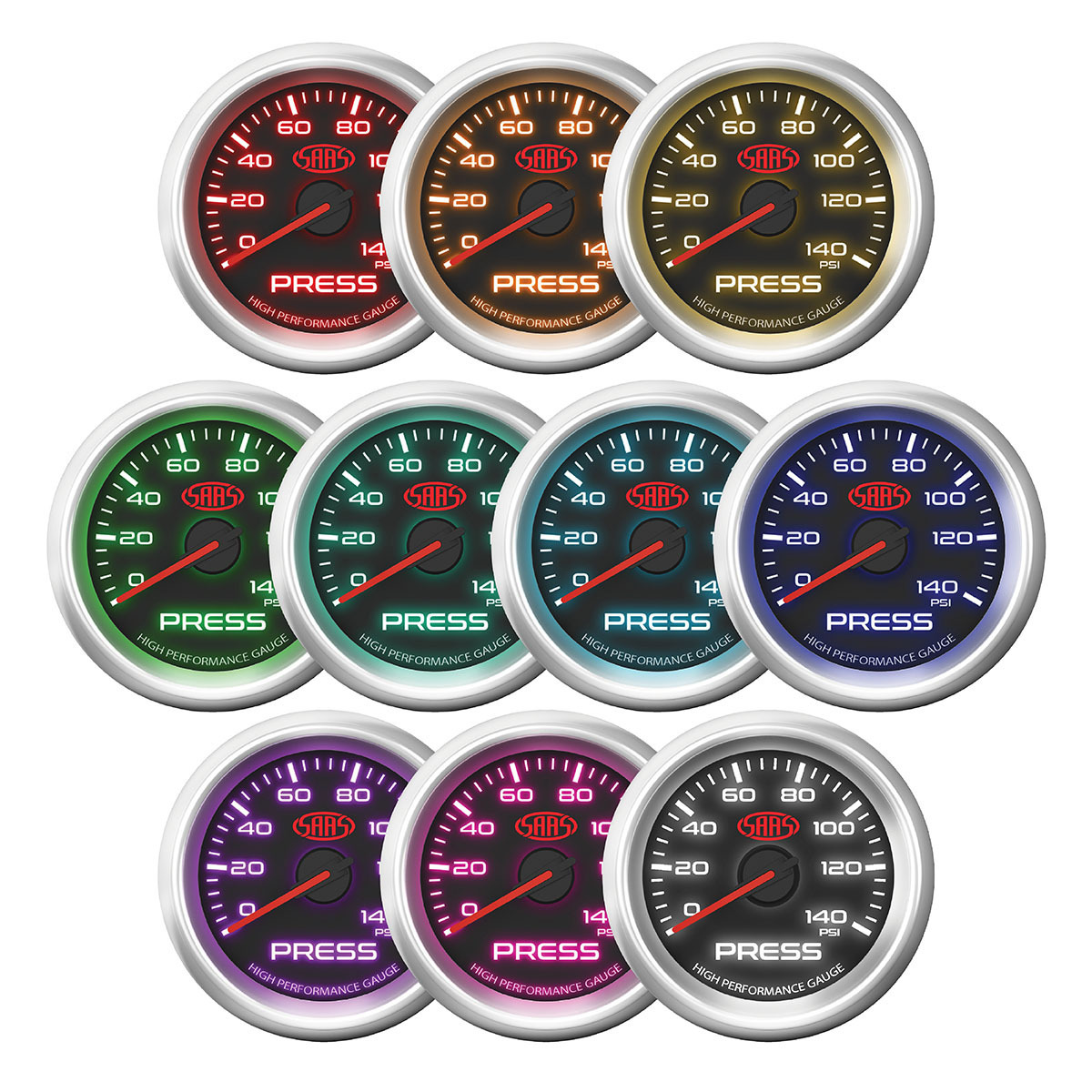

• 10 Colour Backlight options: Red, Red amber, Orange, Green, Aqua, Cyan, Blue, Purple, Pink & White

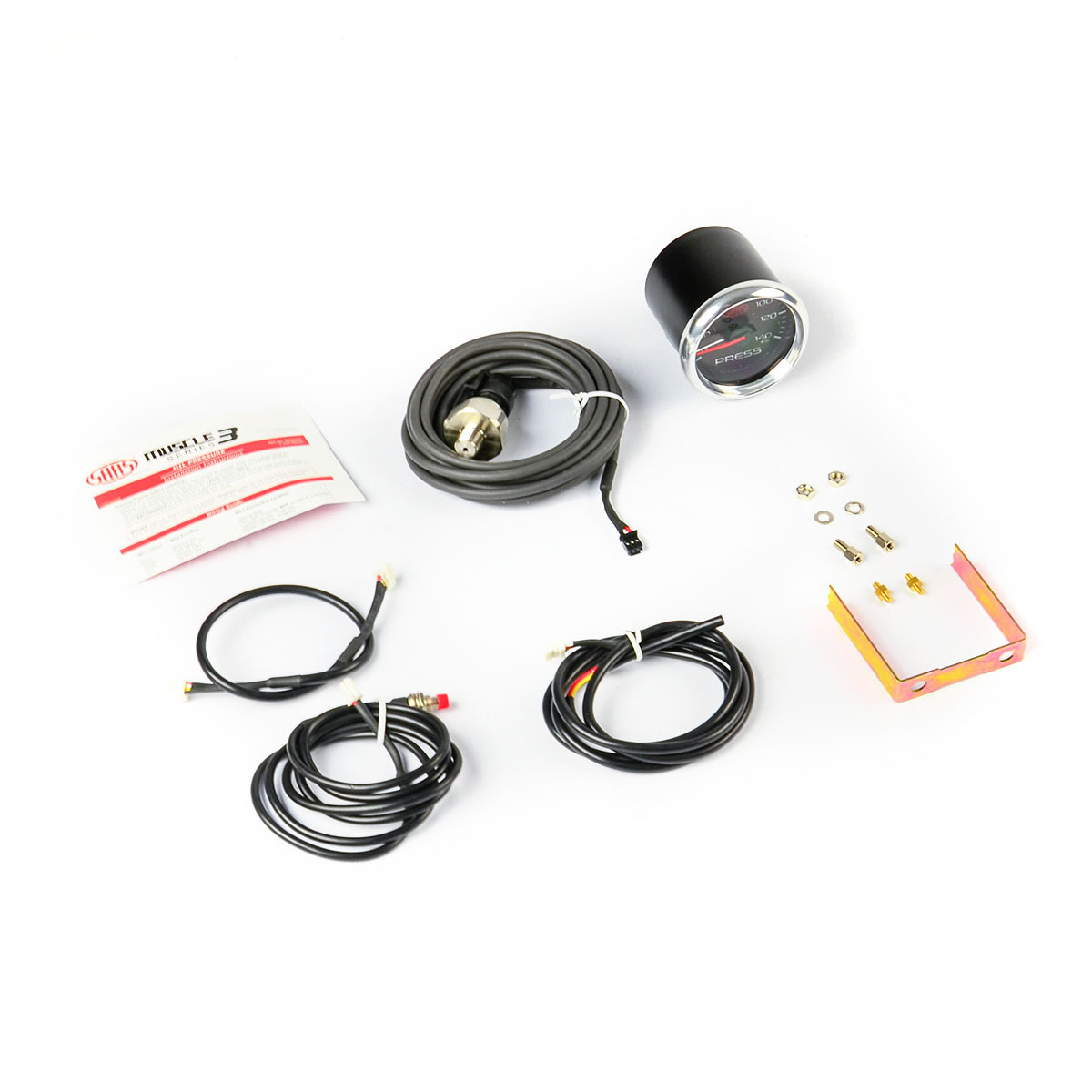

• Includes all mounting hardware, bracket and sender
• 5 levels day / night dimming function
• User pre-set warning functions
• Advanced stepper motor technology

The sender is most commonly piggy backed off the OE oil pressure sender/switch using a brass T-Adaptor. Alternatively, consider using a SAAS oil filter sandwich plate that provides up to 3 sender ports for accessories. Should the standard sender wire not be long enough, splice in an additional length of wire with a gauge NO GREATER than supplied loom wire.

SAAS recommends <= 20AWG wire. Use of a heavier gauge wire or of too greater length will impact resistance and distort temperature readings
