DIESEL FUEL FILTER WATER SEPARATOR Pre-Filter for TOYOTA PRADO 155 2015-2018 TD

30 Micron Diesel Fuel Filter Kit  / Water Separator Pre-Filter

Toyota Prado 155 1KD-FTV 2015-2018

An absolute must for anybody considering an Outback trip

Description:

Dirty fuel is becoming an increasingly widespread problem with common rail diesel engines.

Any moisture or contaminants allowed to pass through into the fuel system can potentially damage injectors, pumps and other expensive components, and with injectors costing thousands of dollars per set to replace, the price of repairing this damage can quickly become expensive.

Features:

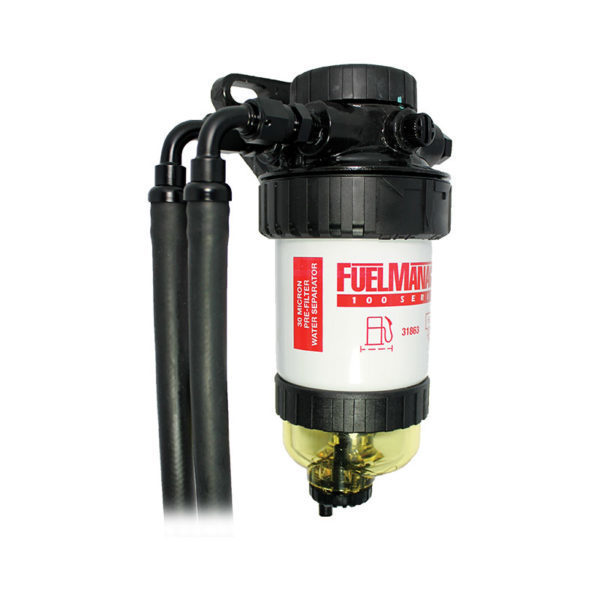

The Fuel Manager consists of a 30-micron diesel pre-fuel filter designed to eliminate expensive engine damage by reducing fuel contaminants that could potentially cause blockages if allowed to pass through to the original 2-4 micron filter found in most common rail diesel engines.

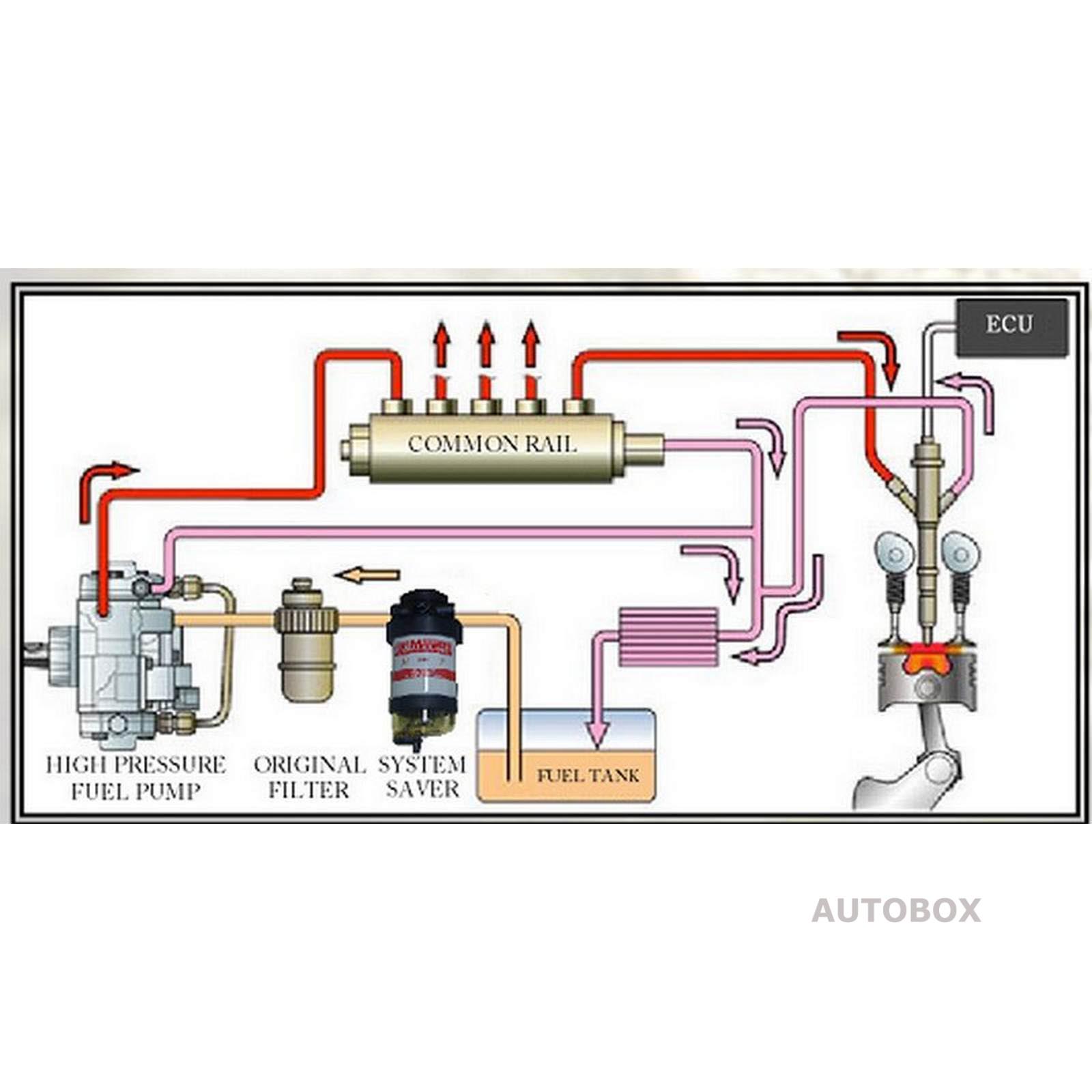

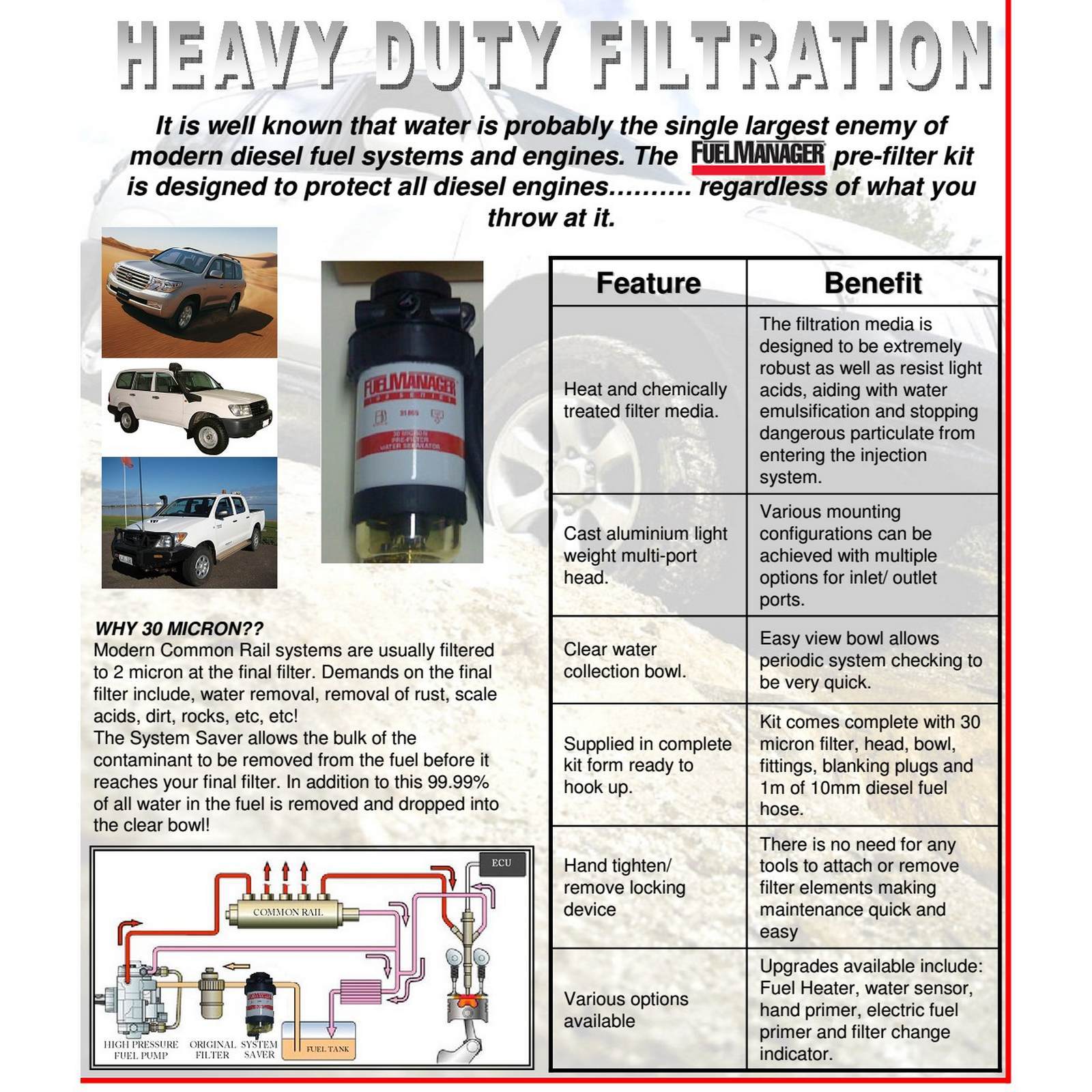

The System Saver allows the bulk of the contaminant to be removed from the fuel before it reaches your final filter. In addition to this 99.99% of all water in the fuel is removed and dropped into the clear bowl.

The Fuel Manager is easily fitted to any common rail engine as a primary filter to clean dirty fuel before it reaches the system components, and acts as an agglomerator, causing moisture to form droplets of water and collect into a Perspex drain bowl before it has the opportunity to become hazardous. The Perspex bowl allows the filter to function effectively while avoiding damage that can occur in glass by elements such as frost and stones.

Full range of spare parts is available for the Fuel Manager.

Specification:

• The Fuel Manager basic assembly consists of a cast aluminum header with two inlet and two outlet female threaded ports for fuel line connections. The flexible design has an inlet port on each side, and an outlet port on each side, allow for easy mounting and pipe flow. Unused ports are plugged with the caps provided.
• Attached to the header is the element, which contains the media to remove water & other contaminants.
• Suitable for all Diesel engines from 50hp to 350hp (37kw to 261kw) with a maximum fuel operating pressure of 60psi.

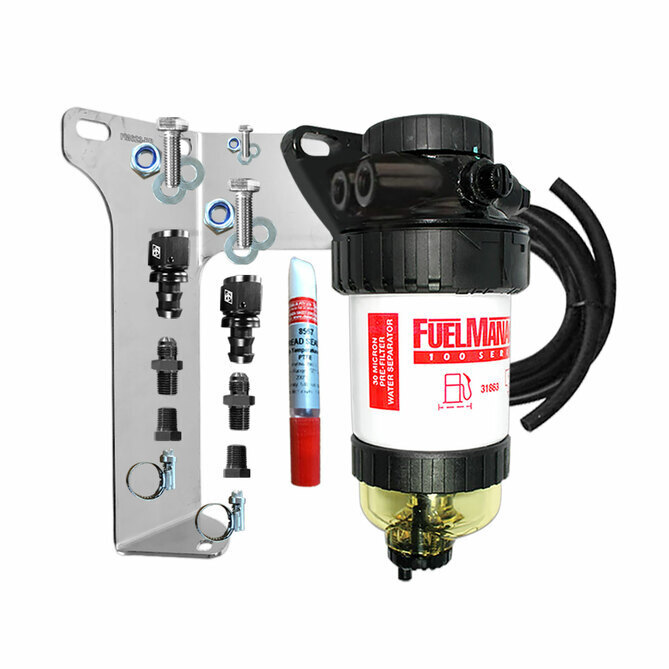

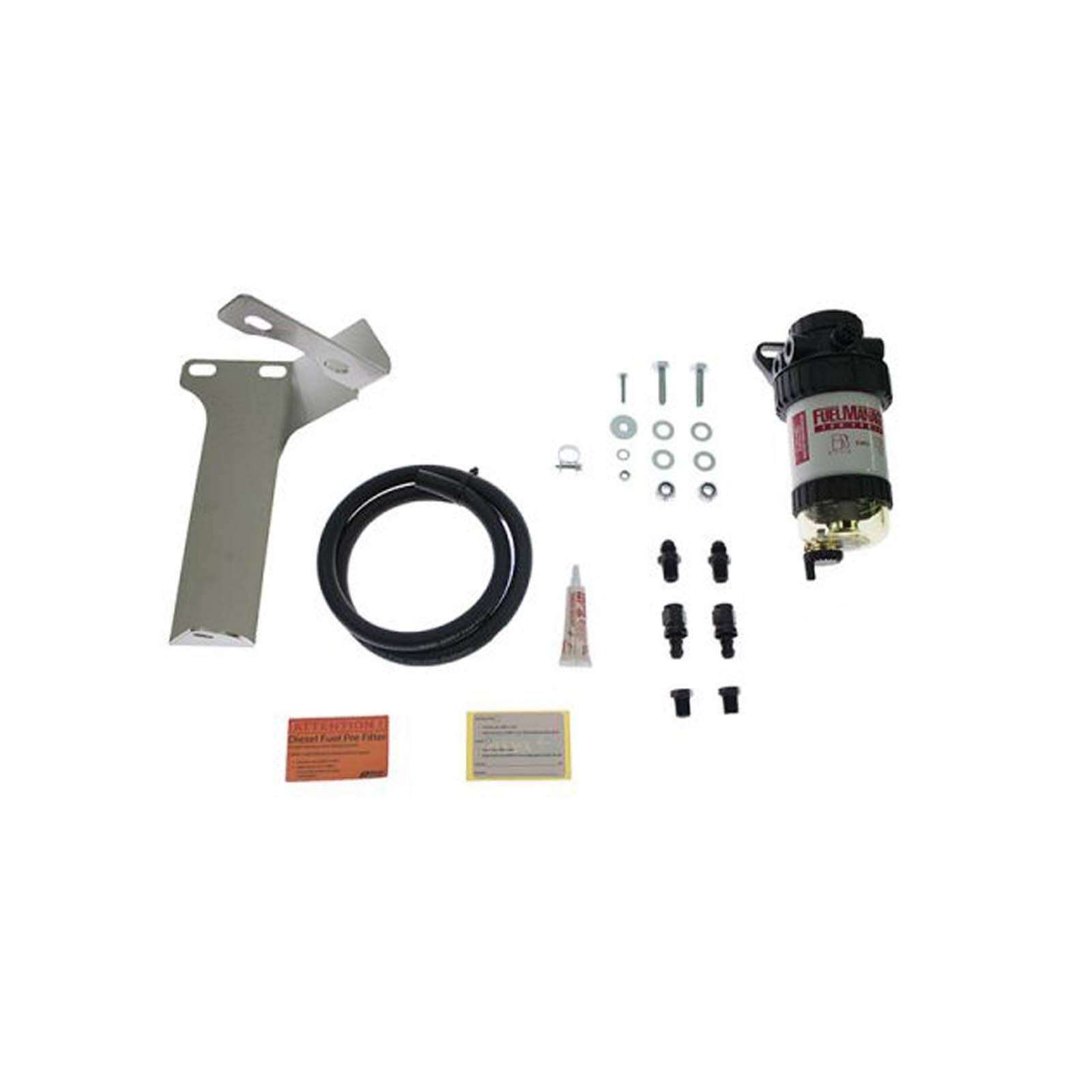

Kit Includes: See Images

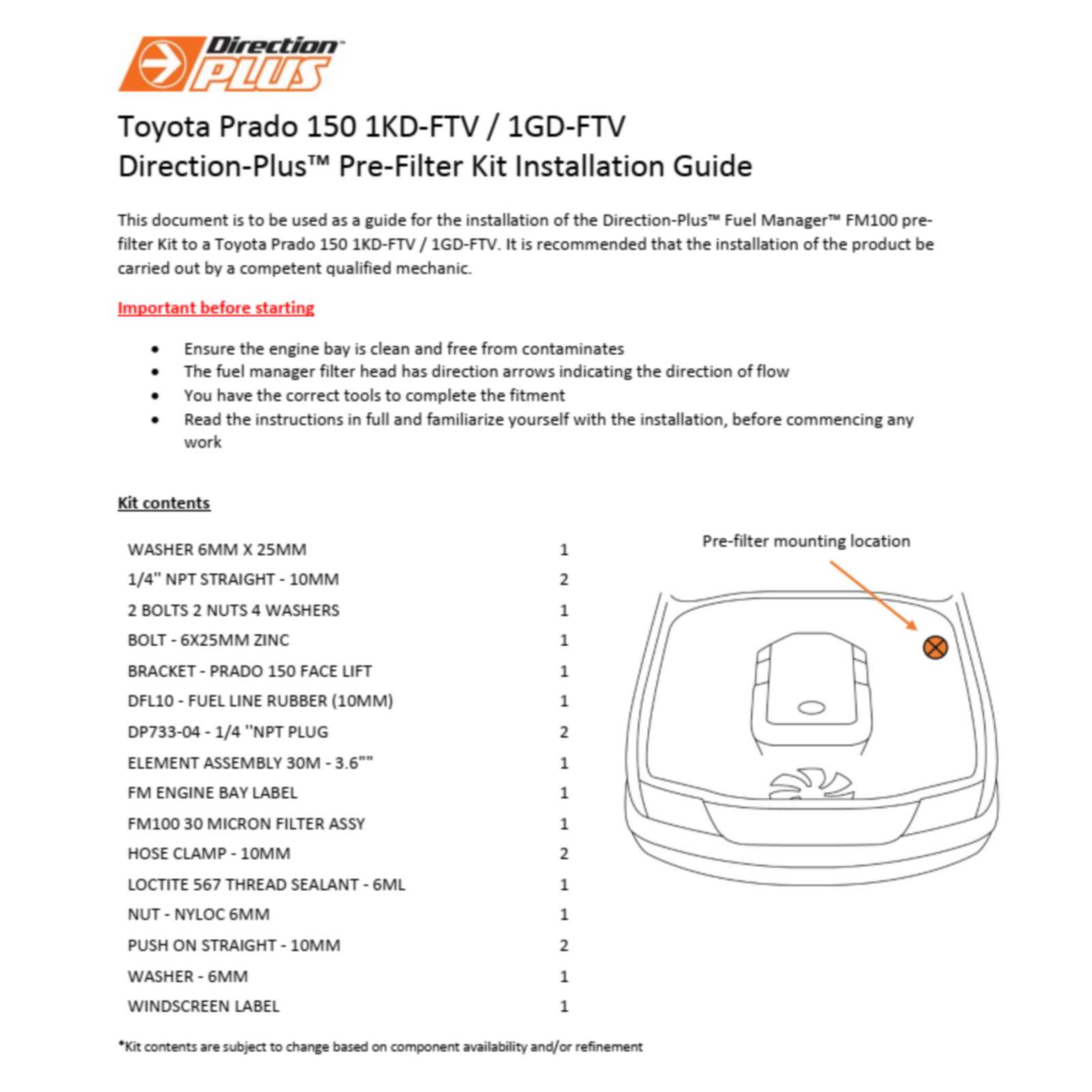

Fitting Instructions: See Images

Service:

• Check the filters for water regularly, and drain as required.
• Water will collect at the bottom of the bowl, and appears a different color from the fuel.
• Drain water by opening the self-venting drain valve and allowing all water to escape. The see-through bowl is re-usable.
• Change the element canister when necessary.
