Dual Pillar Pod W Code Painted Single Piece Suits Nissan GU Patrol Y61 1997-2015 w/ Boost EGT Water Oil Gauge

Dual Pillar Pod W Code Painted Single Piece 5 w/ Boost EGT Water Oil Gauge

Suits GU Patrol Y61 1997-2015

SGP4203SW-SG611240-SG613020

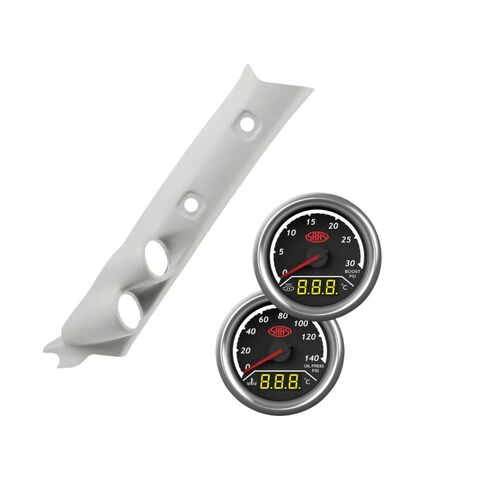

Australia's best pillar pods now have a younger brother - the all new SAAS single piece pillar pod. Made by us right here in Melbourne, Australia, these one piece ABS plastic pods replace your existing A-Pillar trim and provide a super sleek mount for 2 52mm SAAS gauges.

Better still, these custom lines are painted to match popular interior trim codes.

Fitting Notes:

Trim code (K) Brown - usually found in early model Patrol’s from 1997 - 2003
Trim code (G or J) Grey/Beige - usually found in later model Patrol’s from 2004 - 2016
Trim code (W) Light Grey - usually found in Patrol wagons from 2002 - 2004
Trim code location - vehicle compliance plate, engine bay firewall

SAAS 2 in1 Trax Gauge

Introducing the latest of Australian designed dual reading analog/digital Trax series gauges. Packed with features and unsurpassed quality built components for the most demanding conditions, Trax gauges are equally At Home in Outback Tracks And Urban Environments.

• User pre-set audible and visual warnings on both readouts with the ability to select off or on.
• Opening and closing ceremony with auto calibration.
• Selectable 7 colours back-lit with nighttime dimming function.
• Advanced stepper motor technology. Super fast needle response and silent movement.
• Oem style hi-quality plug-in electronic senders with weatherproof connectors.
• Saas link system cable included. Power up one gauge and use included link cable to power up multiple gauges.
• 52mm body and u bracket included.

SAAS 2 in 1 Diesel Turbo Boost and Exhaust Temp Gauge Features:

• Analog Face Diesel Boost Gauge from 0 - 30psi.
• Digital Face Exhaust Gauge from 0 - 900c with Bright White Display.
• Selectable 7 Colour LED Back-light with Night Time Dimming Function. (hardwire)
• Boost Warning: Needle and Back-light Will Flash and Gauge Will Beep When a Preset Level is Passed. (Adjustable)
• Exhaust Temp Warning: Digital Display and Back-light Will Flash and Gauge Will Beep When a Preset Level is Passed. (Adjustable)
• Selectable Gauge Warning Tone. (on-off)

SAAS 2 in 1 Oil Pressure and Water Temp Gauge Features:

• Analog Face Oil Pressure Gauge from 0 - 140psi.
• Digital Face Water Temp Gauge from 0 - 120c with Bright White Display.
• Selectable 7 Colour LED Back-light with Nighttime Dimming Function. (Hardwire)
• Oil Pressure Warning: Needle and Back-light Will Flash and Gauge Will Beep When Pressure Drops Below a Preset Level. (Adjustable)
• Water Temp Warning: Digital Display and Back-light Will Flash and Gauge Will Beep When a Preset Level is Passed. (Adjustable)
• Selectable Gauge Warning Tone. (On-Off)

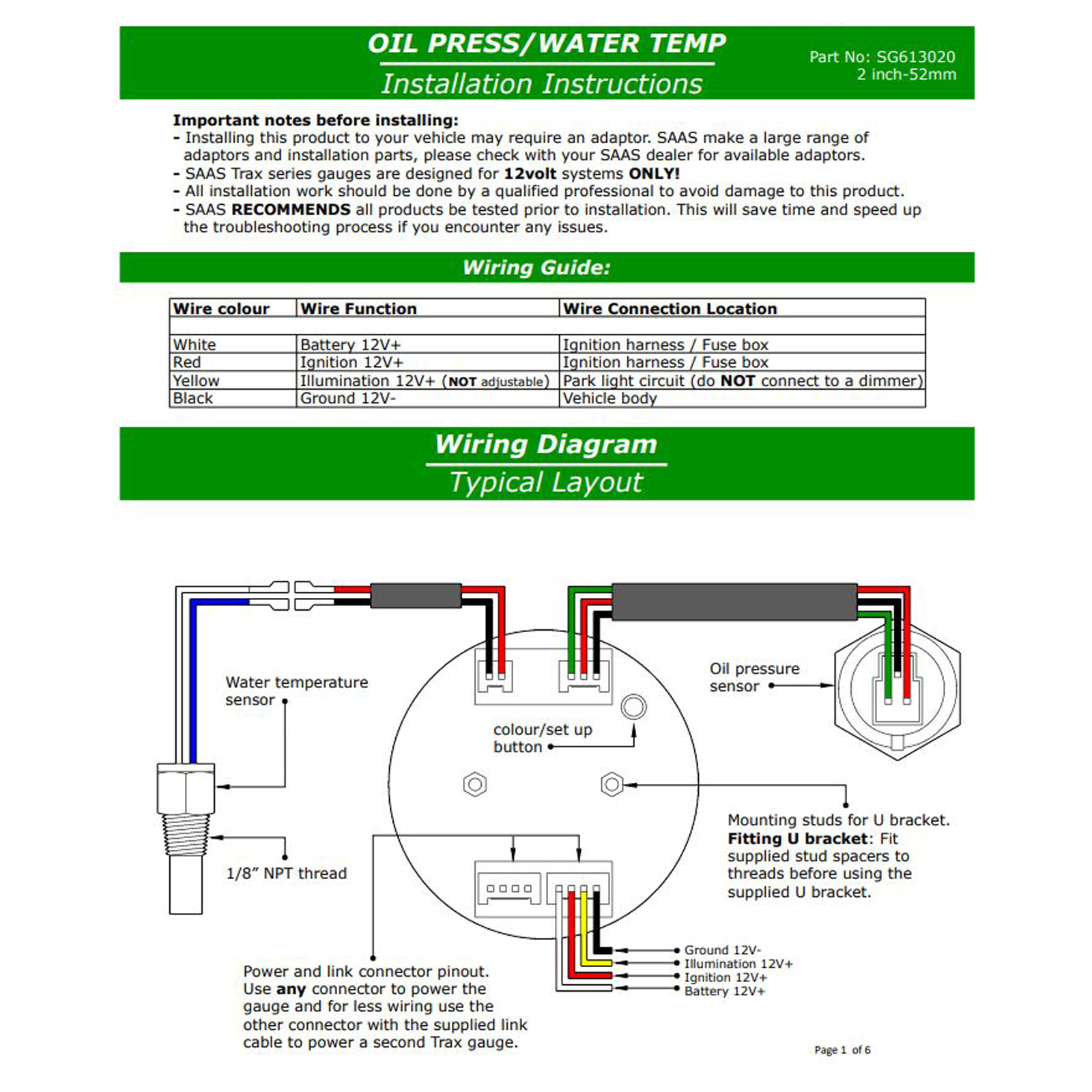

Installation Features:

• High-quality OEM style electronic plug-in sensors with weatherproof connectors. (2m long) Electronic Boost Sender and Exhaust Temperature Probe included
• Faster installation times and minimal wiring thanks to the new saas link system, power up one gauge and use the included link cable to power up multiple gauges.
