Elecbrakes Electric Bluetooth Brake Controller Plug n Play 7/7pin Flat Caravan

Elecbrakes Electric Bluetooth Brake Controller Plug n Play 7/7pin Flat Caravan

EB2-PS-A7-7

A brake controller as the name suggest is the device that controls the braking force on the trailers brakes. It does this by varying the voltage output based on how hard you apply the brakes in the vehicle. This is called proportional braking. The brake controller also allows the user to adjust braking force and apply manual override which applys trailer brakes only.

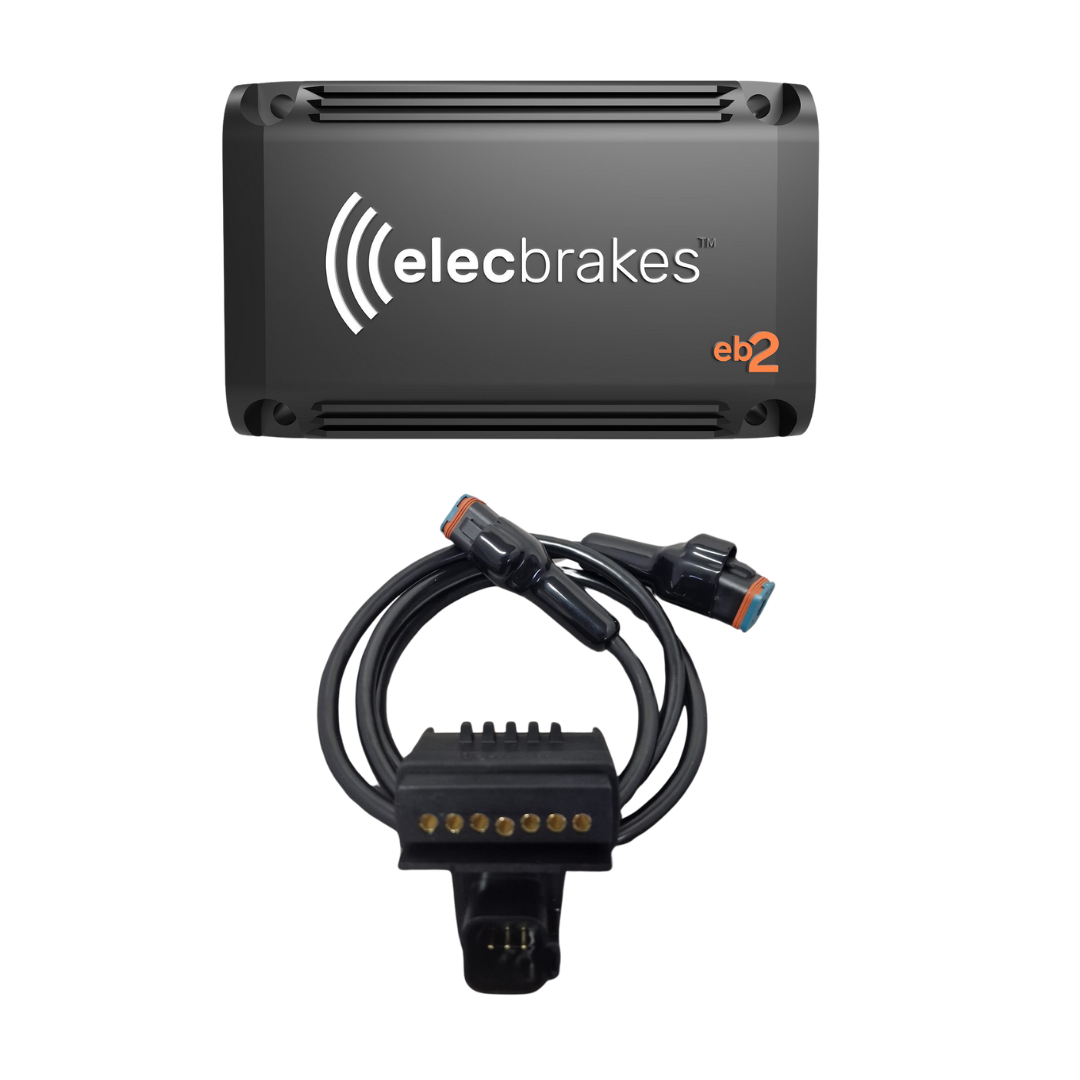

Elecbrakes is a trailer mounted electric brake controller. Unlike other brake controllers on the market, Elecbrakes doesnt need to be hard wired into your vehicle, it mounts to the trailers draw bar and connects with a plug and play adapter to the vehicles lighting circuits for its power. You can adjust the brakes on your trailer via the Elecbrakes app on your phone, or the optional remote.

A trailer mounted brake controller using proportional braking to stop your trailer. Elecbrakes gives you the smoothest, safest towing experience!

How it works:

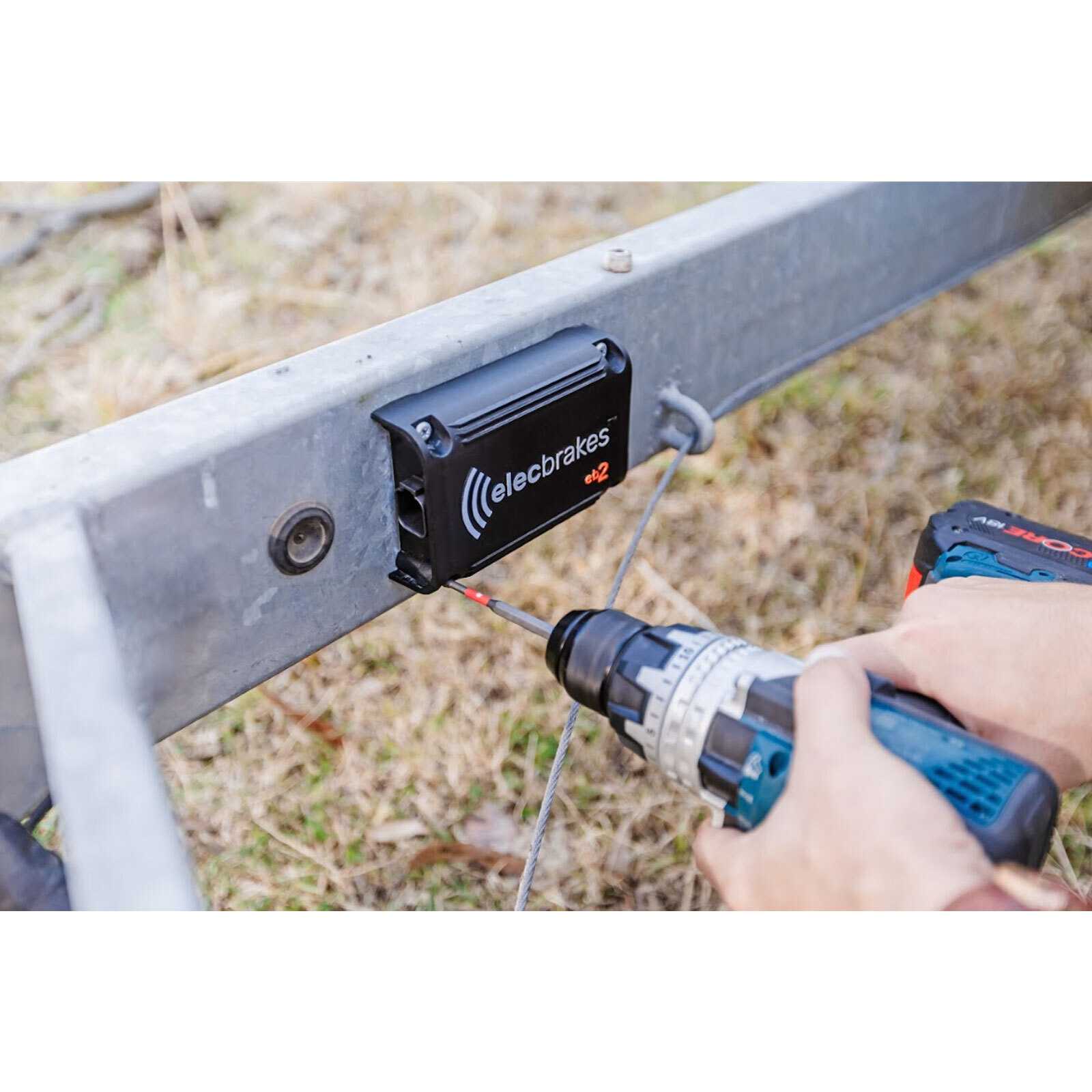

1. Mount the unit to the drawbar of your trailer.
2. Plug in the Elecbrakes lead into the unit and the ElecConnect adaptor.
3. Connect the ElecConnect adaptor to the car and trailer sockets.
4. Your electric brake controller is now ready to use with the default settings.
5. Access and adjust your brake controller settings on the phone app.
6. Use the remote or phone app for driver controlled changes.

Our Tap + Tow technology leverages the power of NFC (near field communication) that is embedded in most modern smartphones llowing for seamless device pairing, access to unit diagnostics and providing advanced troubleshooting capabilities all in the palm of your hand.

Use our Tap + Tow technology to download the app. Simply tap your phone to the Elecbrakes logo on your brake controller and download the app from the App Store or Play Store.
Once installed, open the app and select ‘add device’.

Important: When using a mobile phone ensure that it is mounted securely in a cradle.

Features:

• The integrated Deutsch allows EB2 to be mounted in tighter spaces.
• EB2 is rugged. The unit is waterproof, shock proof and dust proof.
• Use the tap technology (NFC) to download the app and connect the unit.
• EB2 is built to last. With the intelligence to regulate itself with thermal protection and short circuit protection.
• EB2 will measure the power applied to the brakes and feed this information back to the user’s app. It can be used for intelligent
• diagnosis.
• EB2 will have improved firmware update capabilities allowing feature updates, accessible through the Elecbrakes App via the user’s phone.
• EB2 allows the user to have better management of their device.
