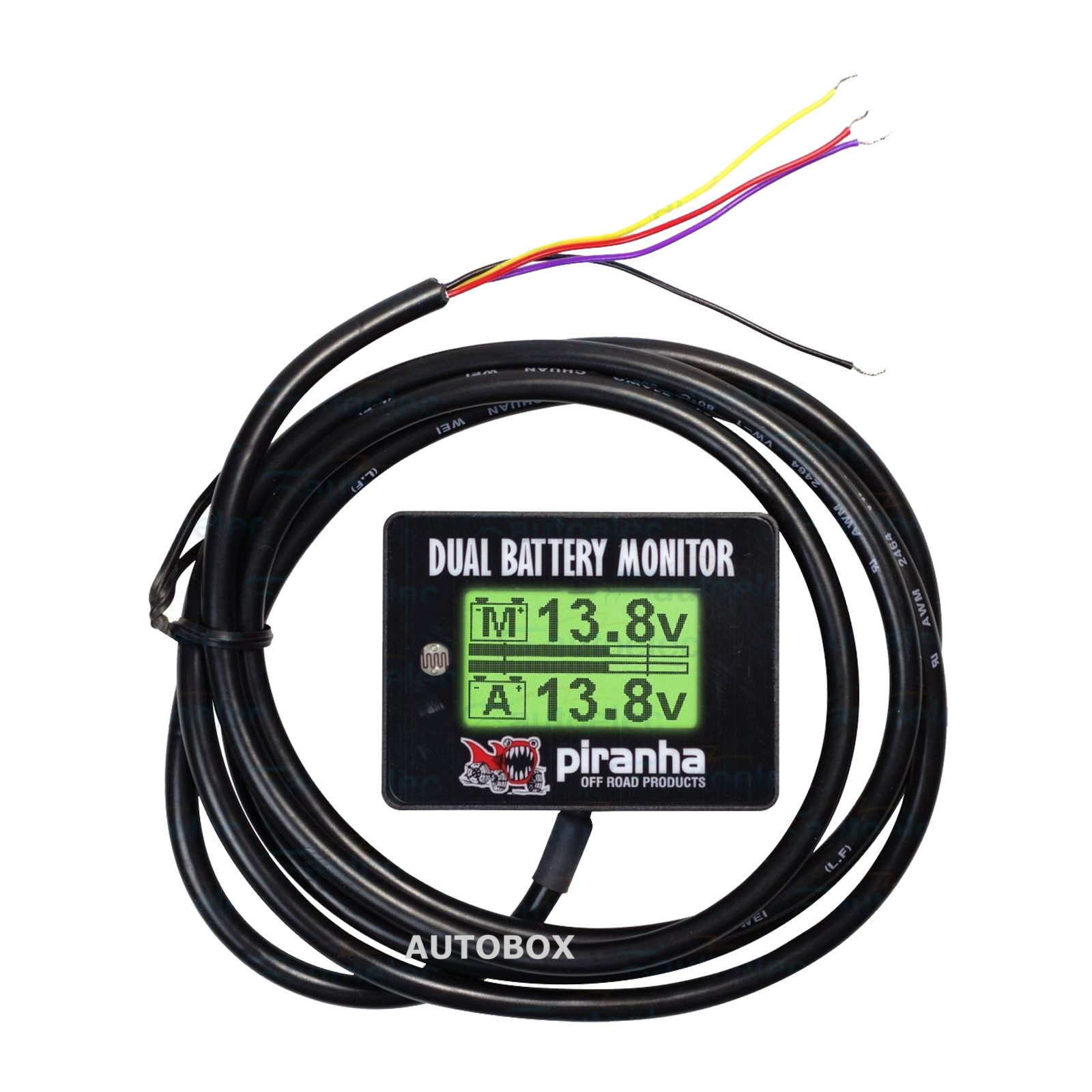

PIRANHA DUAL BATTERY MONITOR

DISPLAYS BOTH MAIN AND AUX BATTERY VOLTS

Don't be caught out undercharging or overcharging your dual battery setups again with the Piranha Dual Battery Monitor

Dual Battery Monitor is designed to give you a guide indicating the voltages on your Main and Auxiliary batteries in a dual battery setup or just a main or auxiliary battery in a single battery setup.

Features:

• Accurate to 50mV, this dash-mounted monitor will not leave you in the dark about your charging states again.
• Visual indications of Low Battery charge when lower than 11.00V and Over Voltage over 15.00V.
• Auto-dimming display for low light conditions without the need for an extra wire to the vehicle.
• Measurements displayed both in 0.01V increments as well as a bar graph.
• Can be used in both Dual Battery mode or Single Battery mode.
• Supplied with easily attached velcro (so no drilling required!)

Product: Dual Battery Monitor

• Input Voltage (DC):5V to 17V
• Current Draw:35mA Running - 0.4mA Standby
• Display: Dual 4 Digit Graphical with Bargraph
• Accuracy:50mV
• Physical Dimensions:59mm x 44mm x 21mm

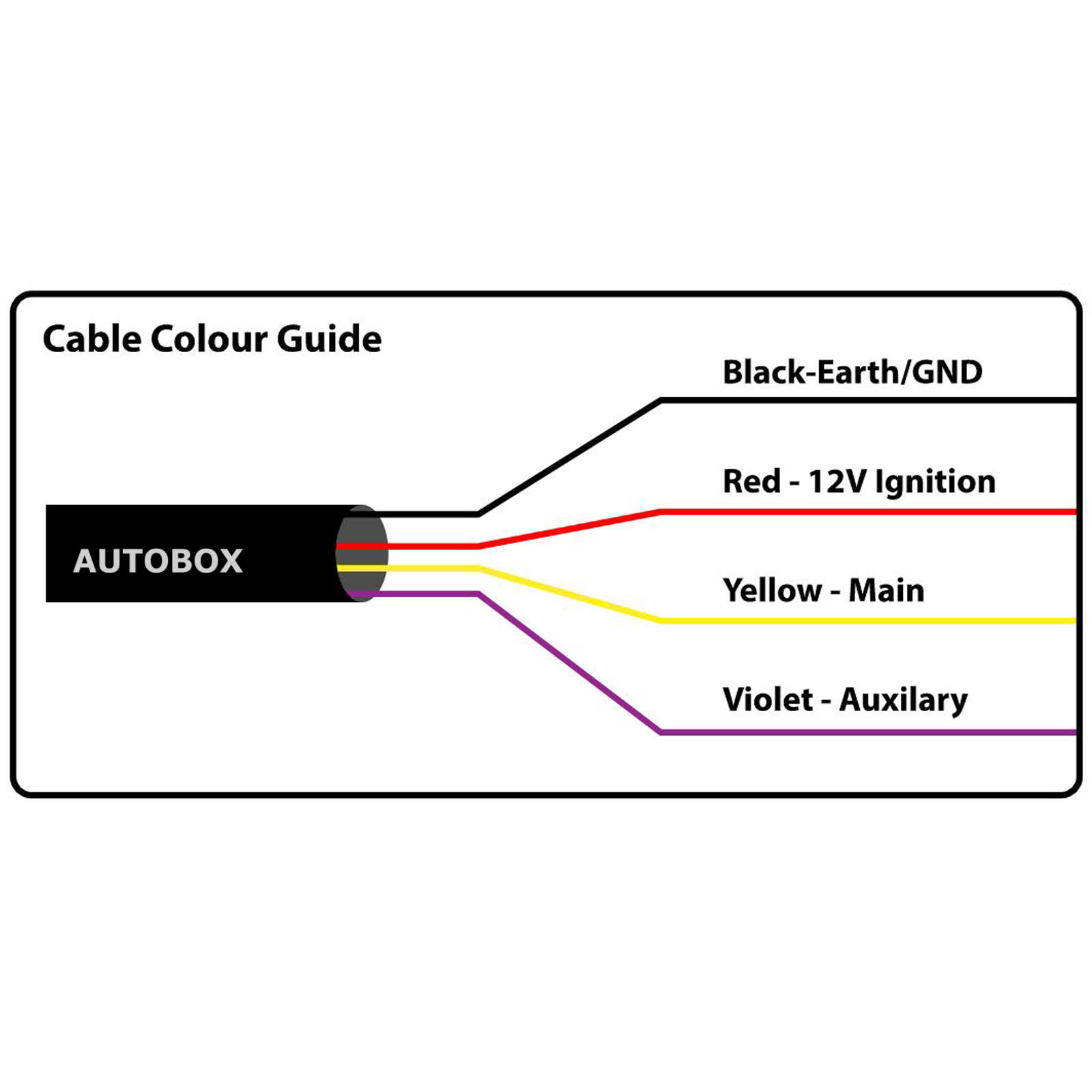

• Connections:1.5M 4 Core Cable
