Provent 200 Universal Oil Separator 4WD Diesel Breather Catch Can Crankcase

MANN + Hummel 4WD Diesel Universal Oil Separator Provent 200

Made in Germany

The ProVent 200 is a compact crankcase ventilation system for any diesel engine up to 250 kW and is characterised by the following advantages:

• Up to 200 l/min blow-by gas
• Very compact design
• Equipped as standard with high-efficiency medium
• Integrated pressure regulation for crankcase
• Suitable for use as an open or closed CCV

Direction Plus ProVent benefits:

• Prevent oil and soot contamination entering the clean air intake
• Excellent protection for turbocharger
• Minimises oil consumption*
• Prevent oil build up in intercoolers
• Regulates crankcase pressure
• Keeps critical engine components clean
• Reduces exhaust smoke and odours
• Save you money

* only in installations where the oil is returned to the sump

Kit Includes:

• 1 x Provent 200 Housing with Filter fitted
• 2 x 25-12mm Silicone reducers
• 1 Metre 12mm 35PSI Diesel Oil Hose
• 1 x ball valve tap to connect to the drain on the Provent filter (many of the competitors have this as a cost option)

Protection against costly repairs and poor performance

Direction plus, ProVent oil separator kits protect your modern diesel engine by sustainably reducing the amount of oil entering the engine from blow-by gas in the crankcase ventilation system.

The problem is compounded with modern engines fitted with exhaust gas recirculation systems (EGR) whereby a proportion of the exhaust gas is routed back into the engine. With the presence of oil from the crankcase ventilation system, the oil collects the exhaust particles. The combination of oil and exhaust particles from the EGR build up to a point where it blocks inlet manifolds and valves, resulting in reduced engine performance or failure.

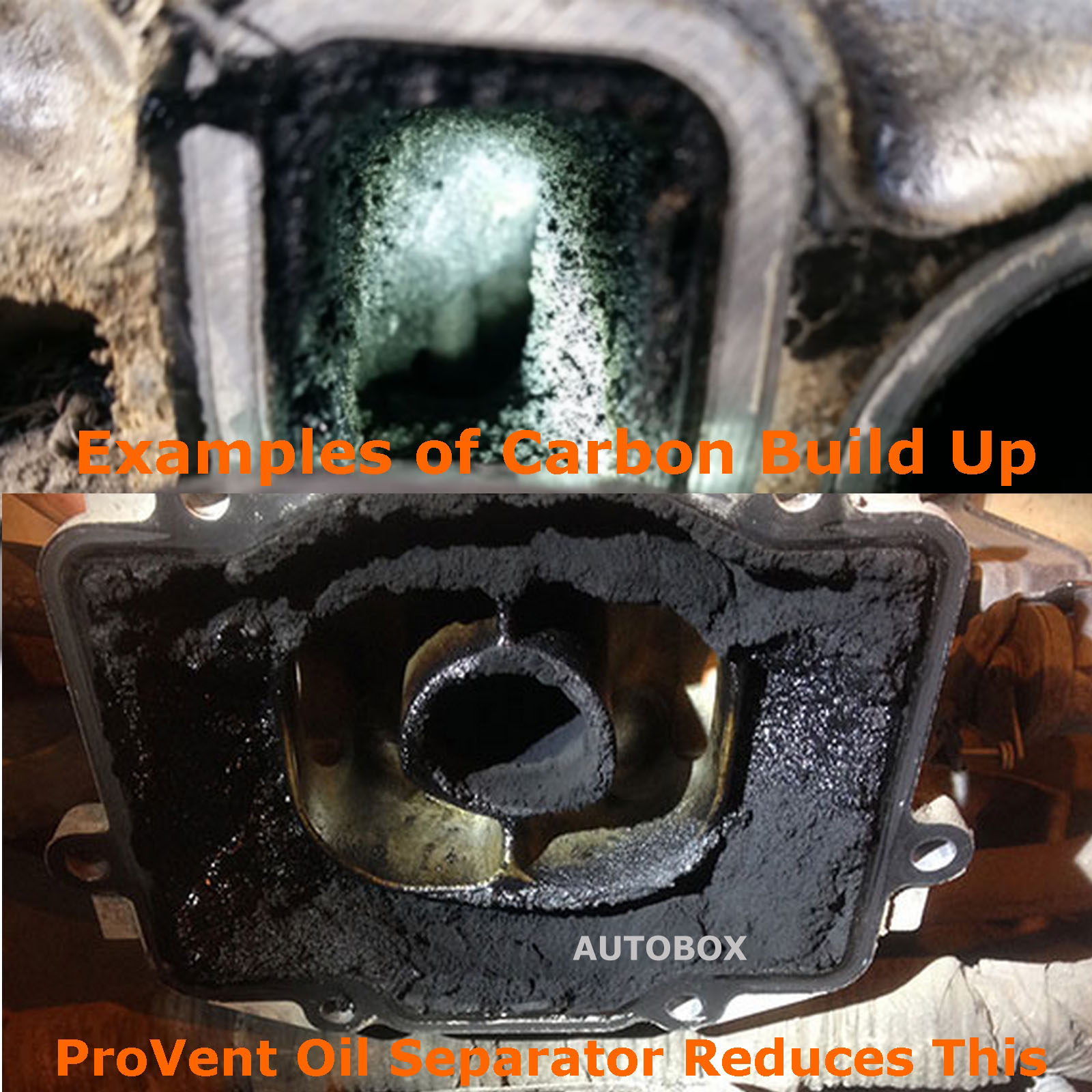

By not fitting a Direction Plus ProVent system, it is likely that your engine will experience a progressive reduction in performance. The images below are typical examples of the build-up in engines not fitted with a Direction Plus ProVent system.

Direction Plus ProVent systems, are specifically designed for its ability to separate and redirect oil and air from blow-by gas produced from within the crankcase. The Direction Plus ProVent system also provides the option of returning the oil back to the sump.

For the ultimate defence against oil and soot contamination, investing in a Direction Plus ProVent oil separator kit will protect your investment 24 hours a day, 365 days a year.

Servicing: The ProVent 200 element will need replacing after between 30-40,000 km or when oil starts to seep from the top cap & the ProVent body.

BENEFITS OF FITTING A PRELINE-PLUS PRE-FILTER KIT:

• Remote multi-stage water alert system (visual and audible)

• 100% water separation efficiency (based on 150μm droplet size)

• 98% particle separation (based on 30 micron particles)

• Reliable protection from corrosion and abrasion

• No need to visually check for water – included alarm

• Simple spin on style filter
