SAAS 2in1 Analogue Digital Trax Diesel Boost Oil Press & Ext Temp Volt Gauge Set

SAAS 2in1 Analogue Digital Trax Diesel Boost Oil Press & Ext Temp Volt Gauge Set

Manufacturer Number: SG614050-SG611230

$275.85
Only 2 Left!

Advanced stepper motor technology. Super fast needle response and silent movement.

Calculate Shipping
Description

SAAS

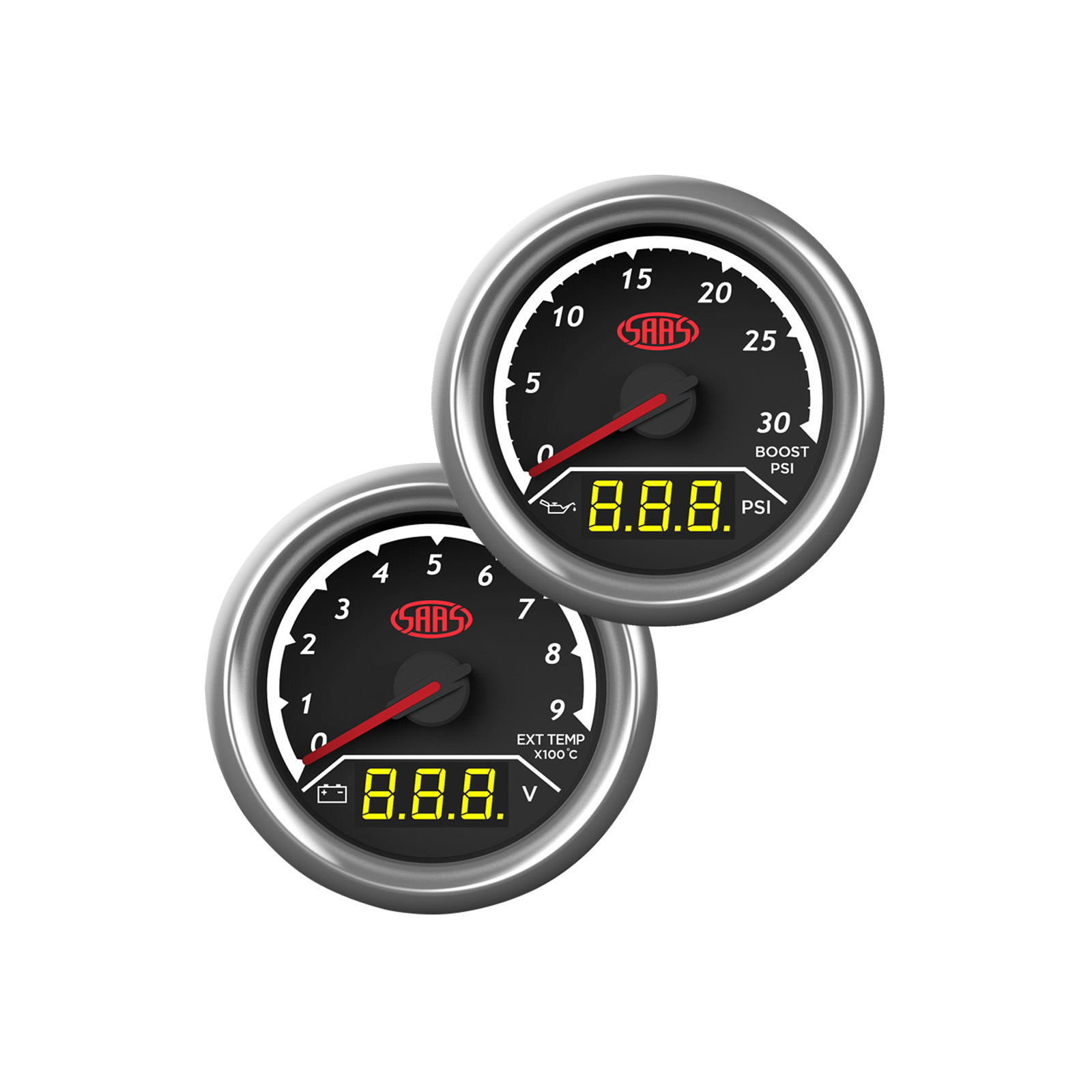

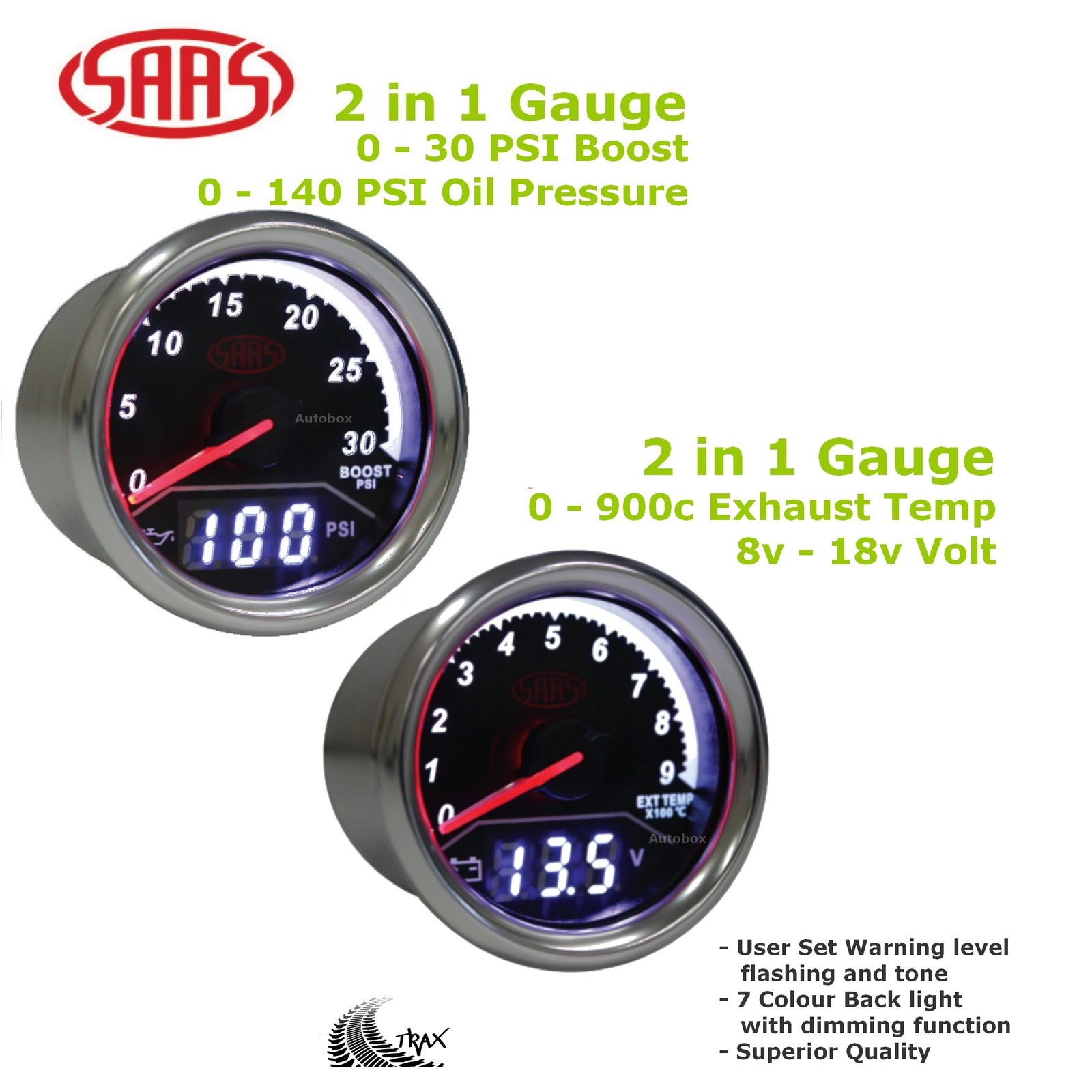

2in1 Diesel Turbo Boost and Oil Pressure Gauge

PLUS

2in1 Exhaust Temperature and Volt Gauge

Introducing the latest of Australian designed dual reading analog/digital Trax series gauges. Packed with features and unsurpassed quality built components for the most demanding conditions, Trax gauges are equally At Home in Outback Tracks And Urban Environments.

  • User pre-set audible and visual warnings on both readouts with the ability to select off or on.
  • Opening and closing ceremony with auto calibration.

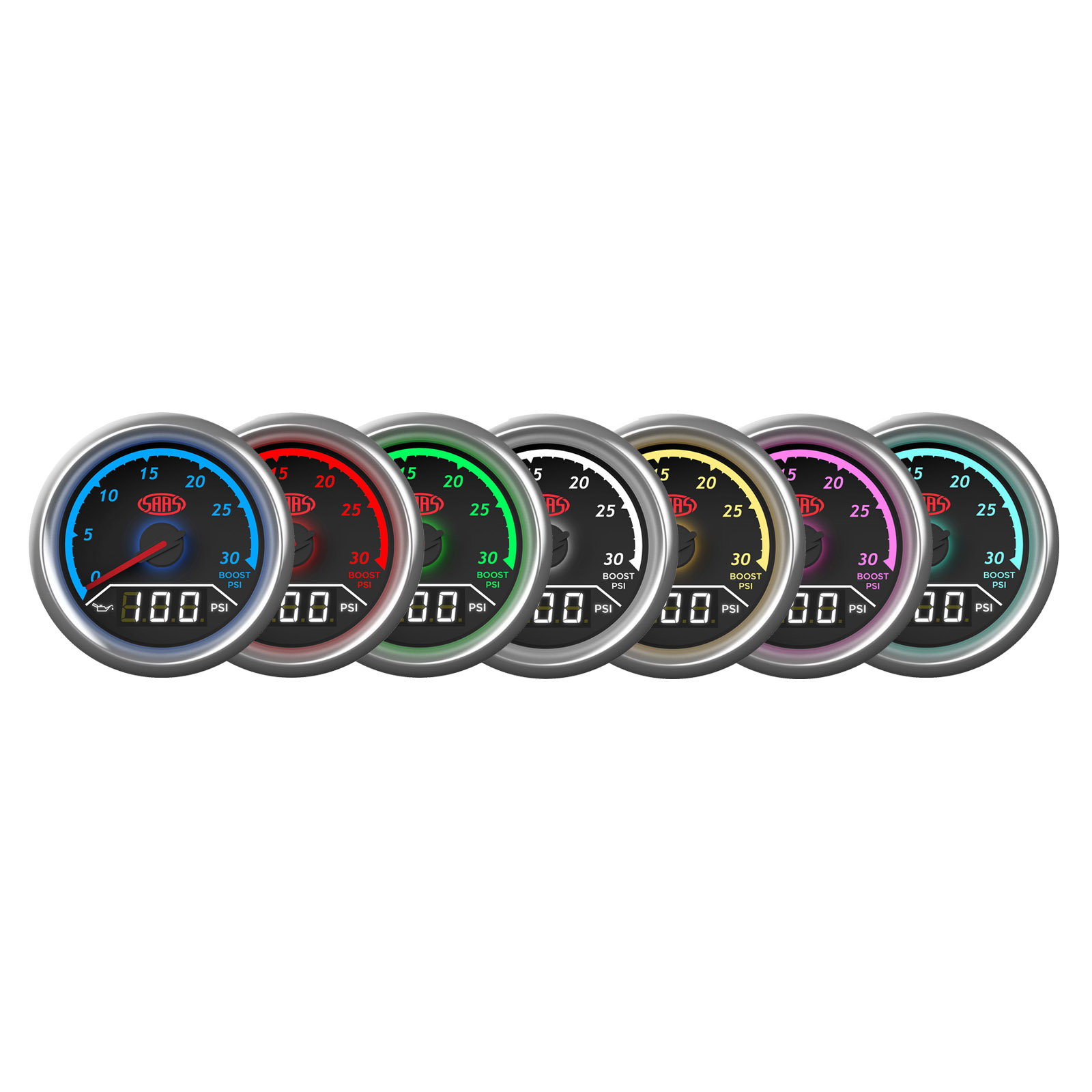

  • Selectable 7 colours back-lit with nighttime dimming function.
  • Advanced stepper motor technology. Super fast needle response and silent movement.
  • Oem style hi-quality plug-in electronic senders with weatherproof connectors.
  • Saas link system cable included. Power up one gauge and use included link cable to power up multiple gauges.
  • 52mm body and u bracket included.

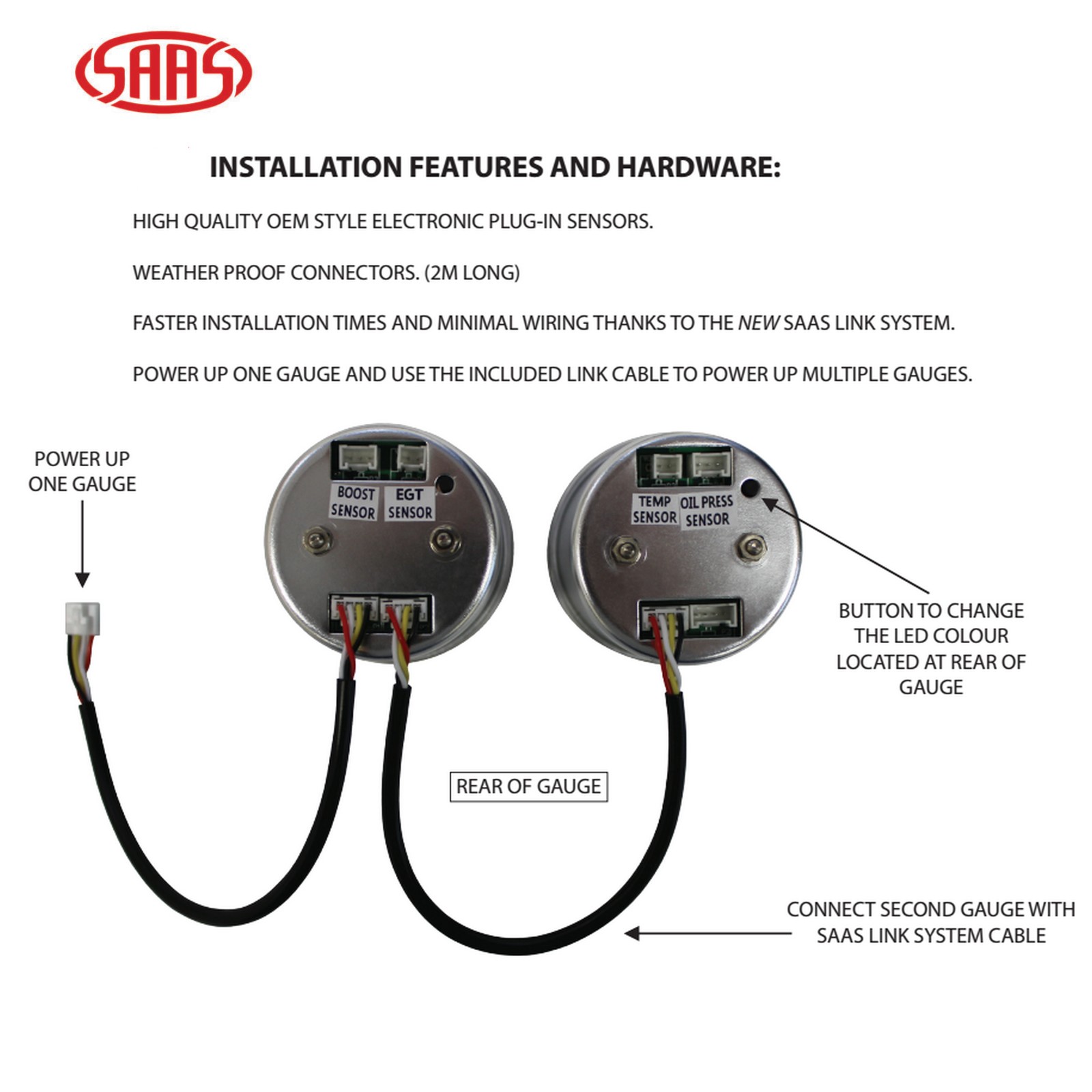

INSTALLATION FEATURES:

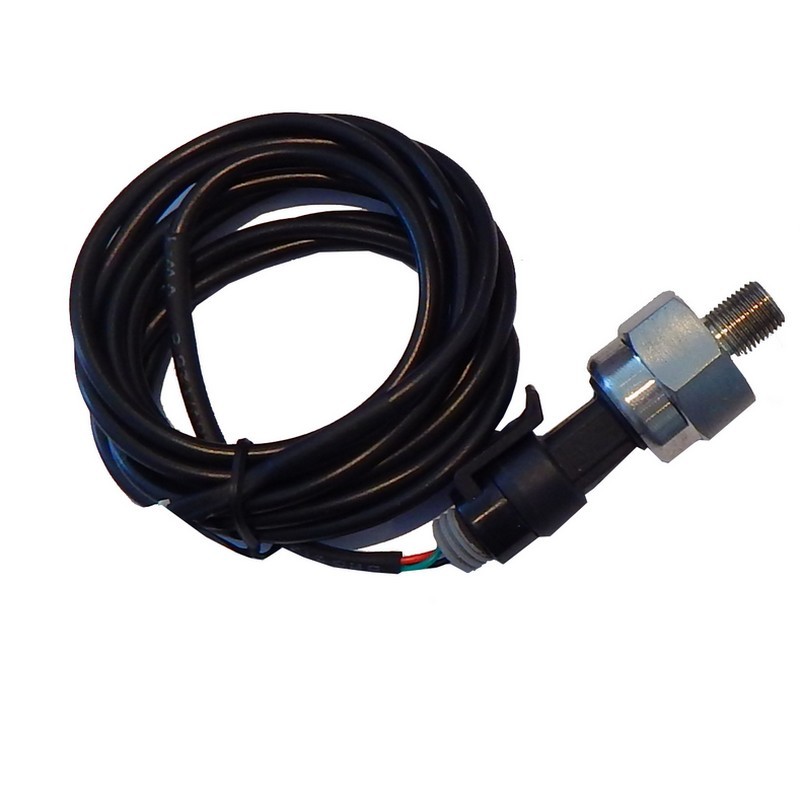

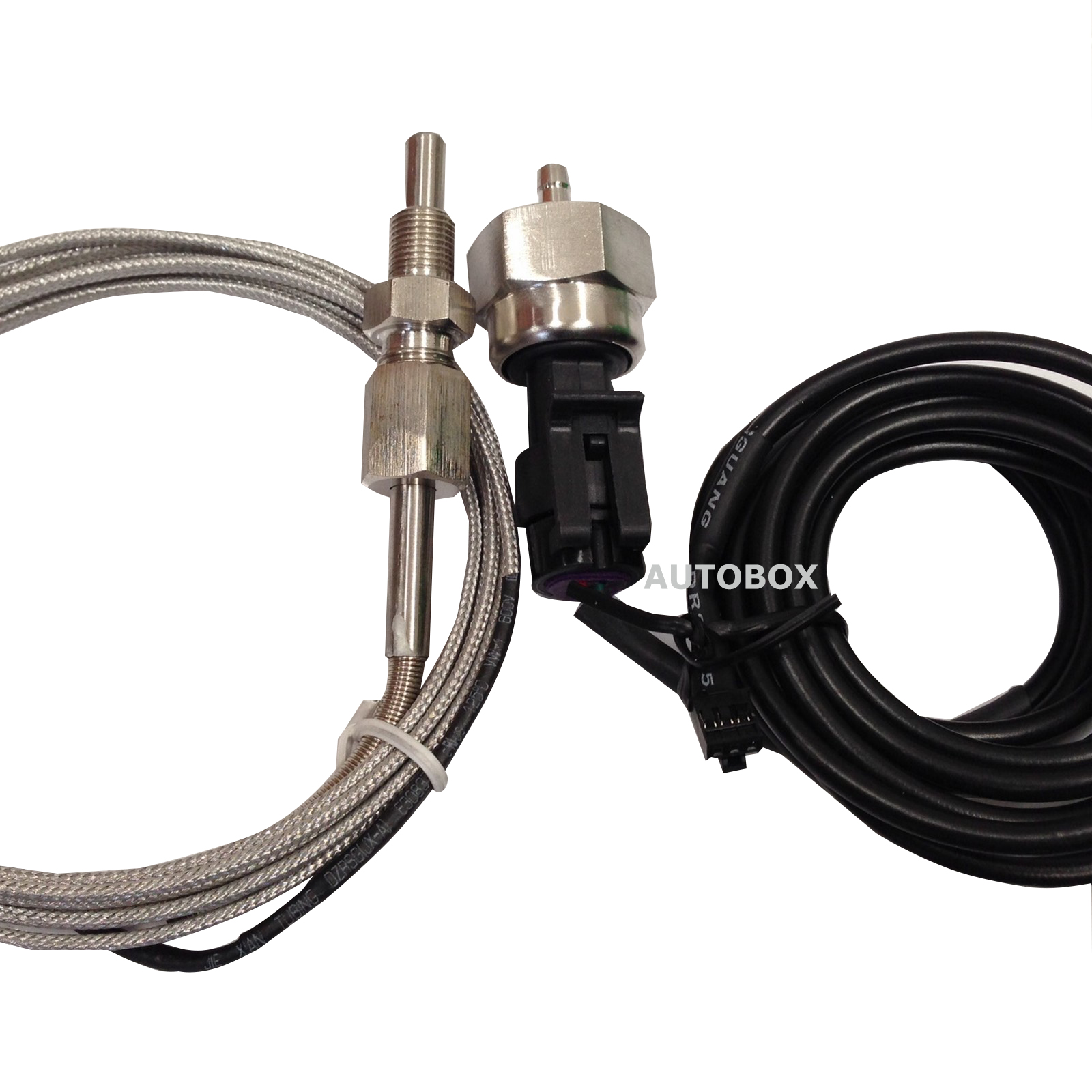

  • High-quality OEM style electronic plug-in sensors with weatherproof connectors. (2m long) Electronic Boost Sender and Exhaust Temperature Probe included
  • Faster installation times and minimal wiring thanks to the new saas link system, power up one gauge and use the included link cable to power up multiple gauges.
Features

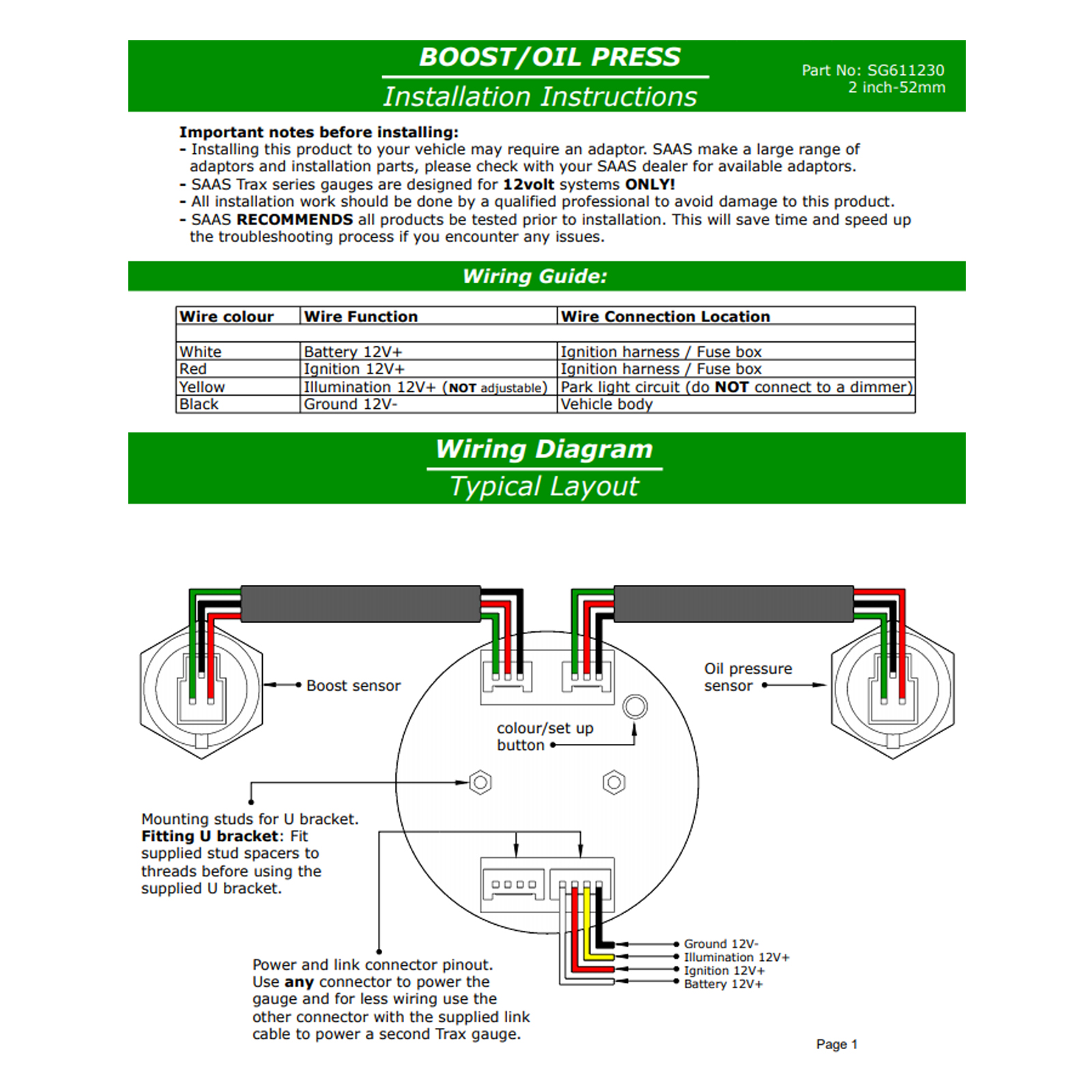

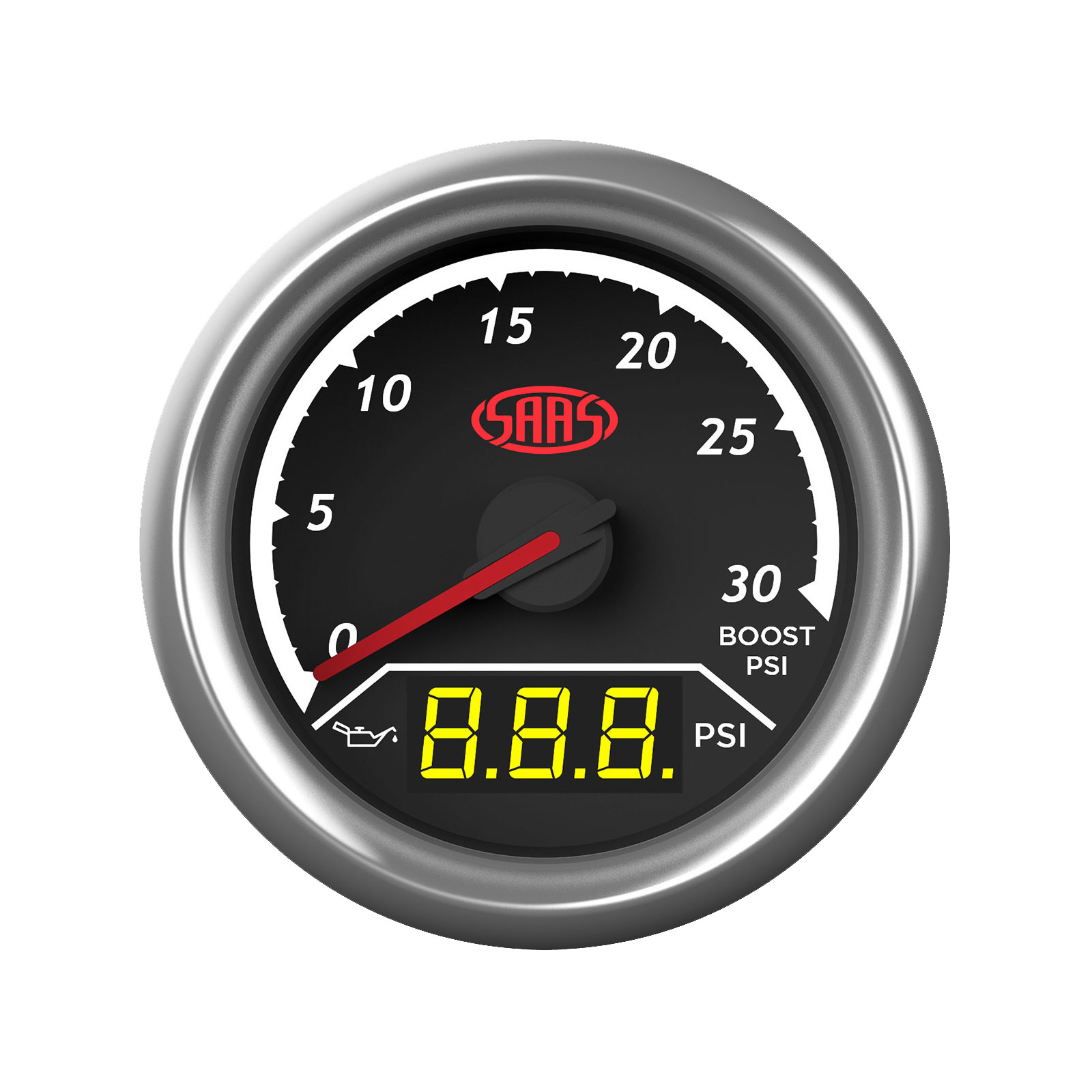

DIESEL BOOST and OIL PRESSURE GAUGE FEATURES:

  • Analogue face Diesel Boost Gauge from 0 - 30psi.
  • Digital face Oil Pressure Gauge from 0 - 140psi with the bright white display.
  • Selectable 7 colour LED back-light with night time dimming function. (hardwire)
  • Boost warning: Needle and back-light will flash and the gauge will beep when a preset level is passed. (adjustable)
  • Oil Pressure warning: Digital display and back-light will flash and the gauge will beep when pressure drops below a preset level. (adjustable)
  • Selectable gauge warning tone. (on-off)

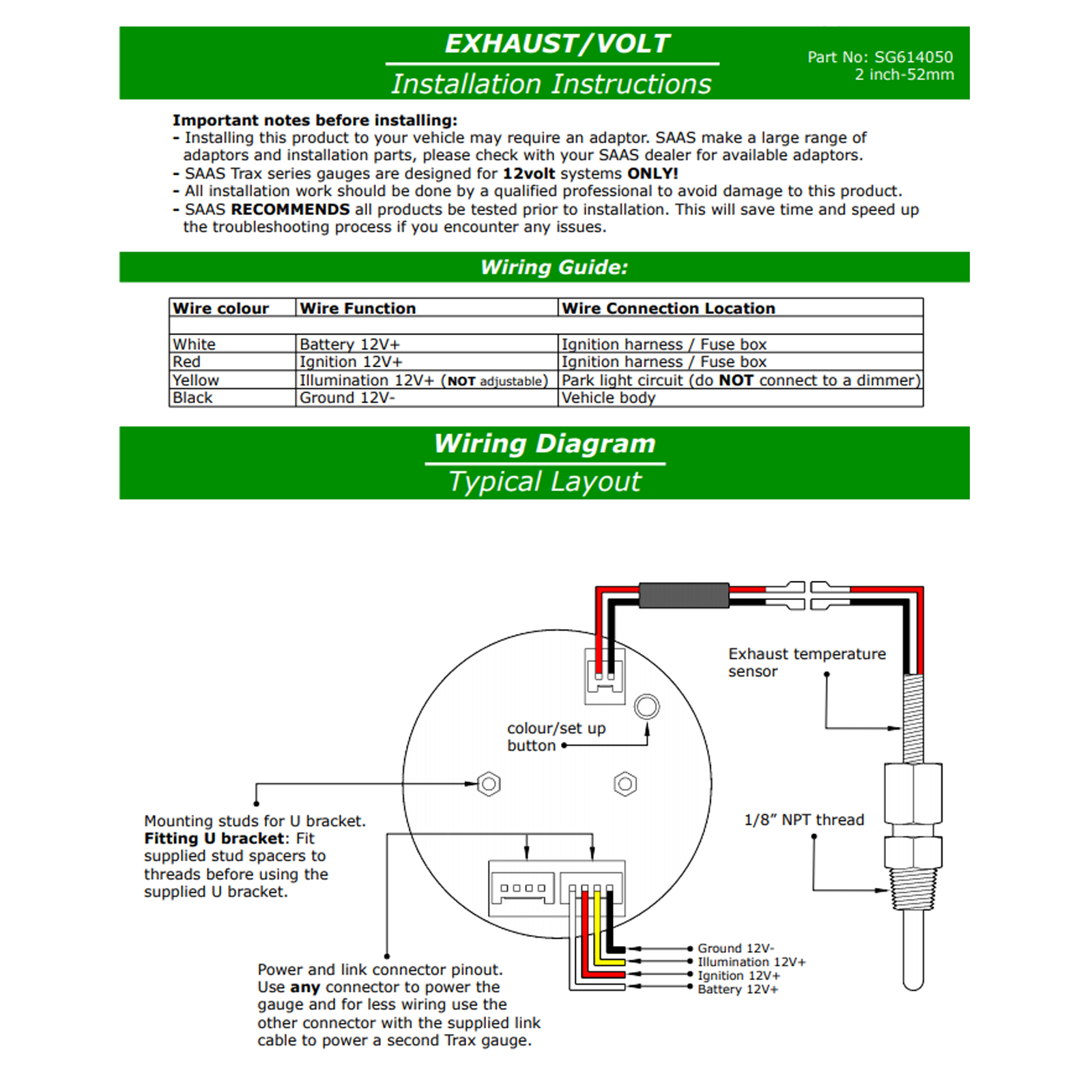

EXHAUST TEMPERATURE and VOLT GAUGE FEATURES:

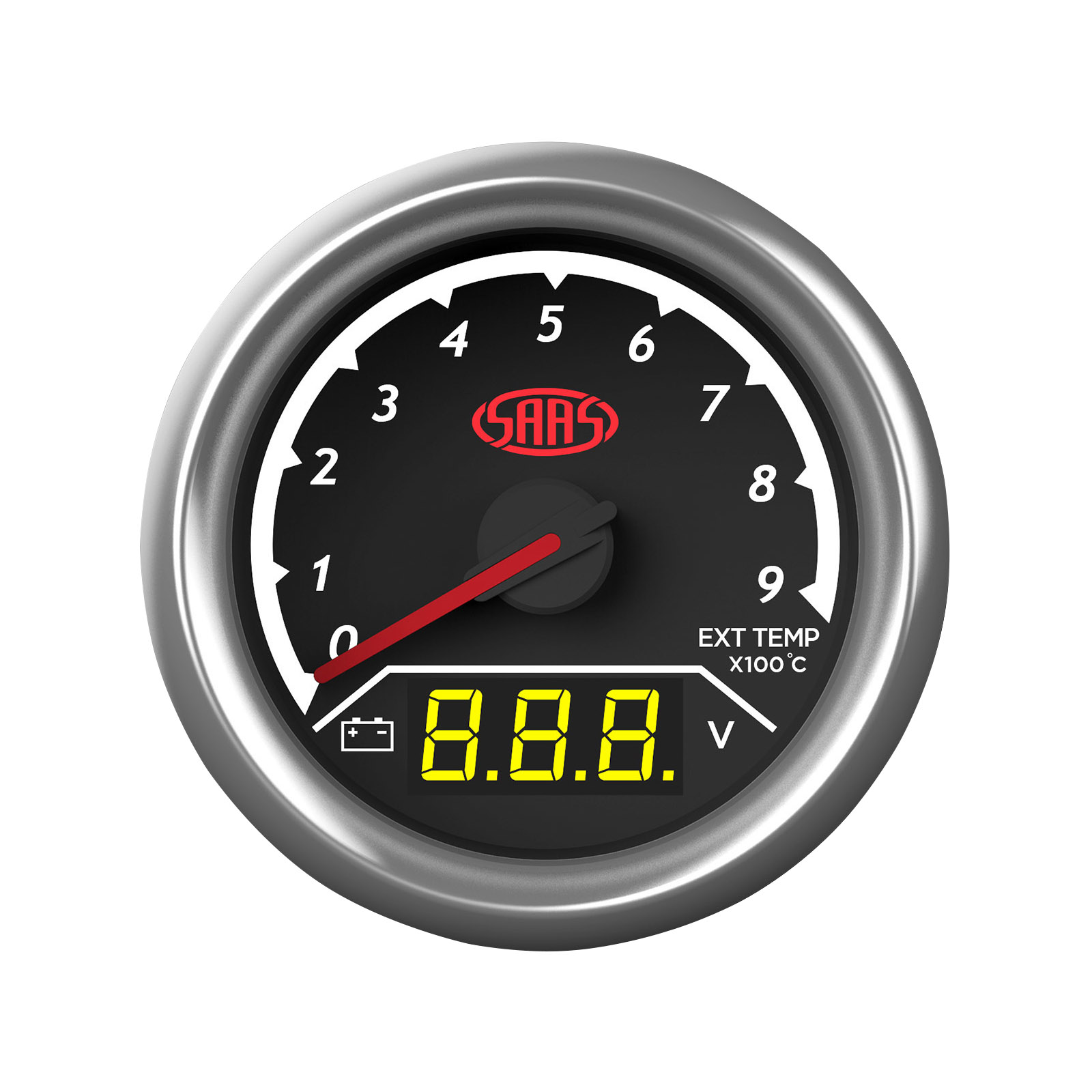

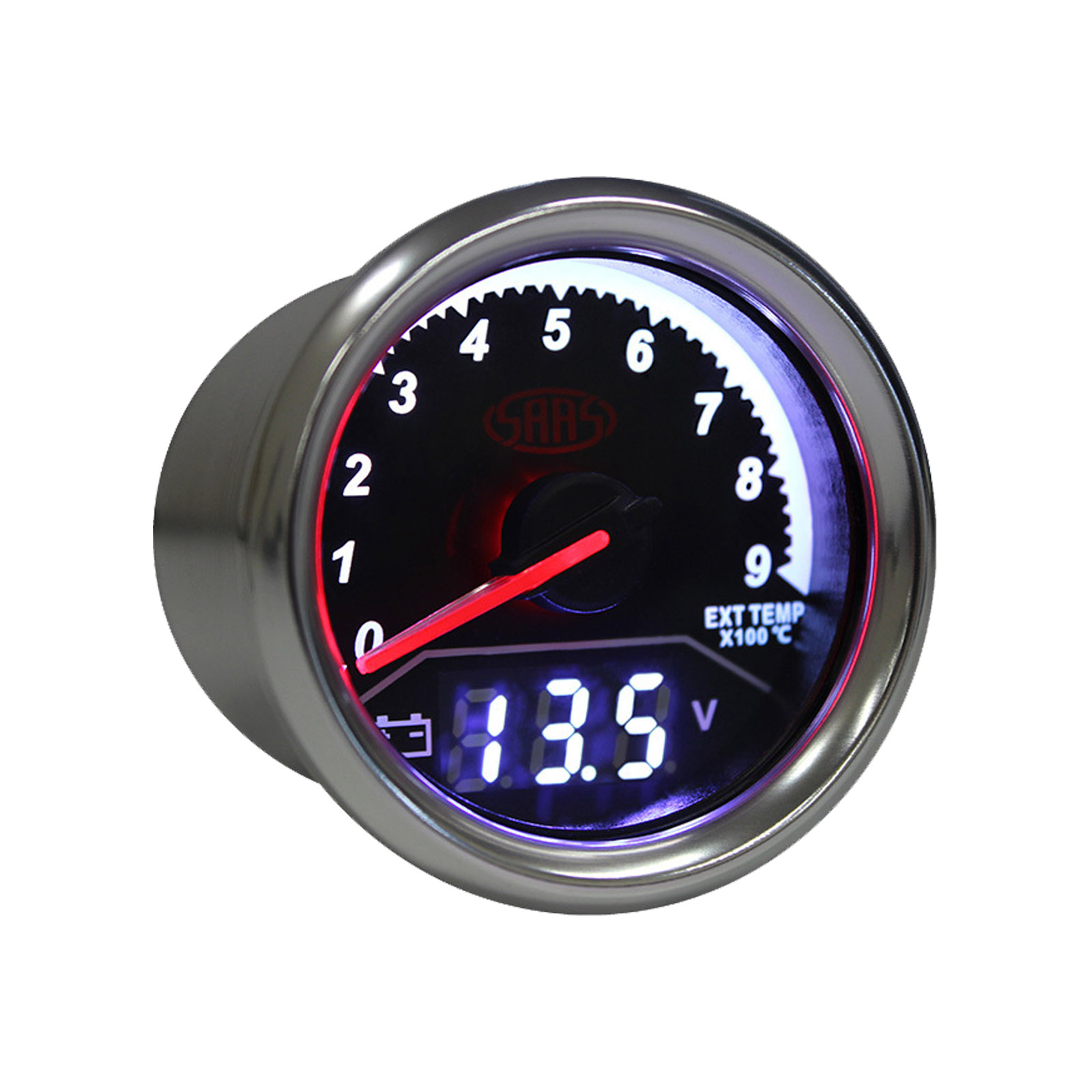

  • Analogue face Exhaust Temp gauge from 0 - 900c.
  • Digital face Volt Gauge from 8v - 18v with the bright white display.
  • Selectable 7 colour LED back-light with night time dimming function. (hardwire)
  • Exhaust Temp warning: needle and back-light will flash and the gauge will beep when a preset level is passed. (adjustable)
  • Volt warning: digital display and back-light will flash and the gauge will beep when the voltage drops below a preset level. (adjustable)
  • Selectable gauge warning tone. (on-off)
Specifications

What's in the Box?

  • 2in1 Diesel Turbo Boost and Oil Pressure Gauge
  • 2in1 Exhaust Temperature and Volt Gauge
SKU SG614050-SG611230
Model # SG614050-SG611230
Brand SAAS
Shipping Weight 1.2000kg
Shipping Width 0.150m
Shipping Height 0.180m
Shipping Length 0.120m
Shipping Cubic 0.001710000m3
