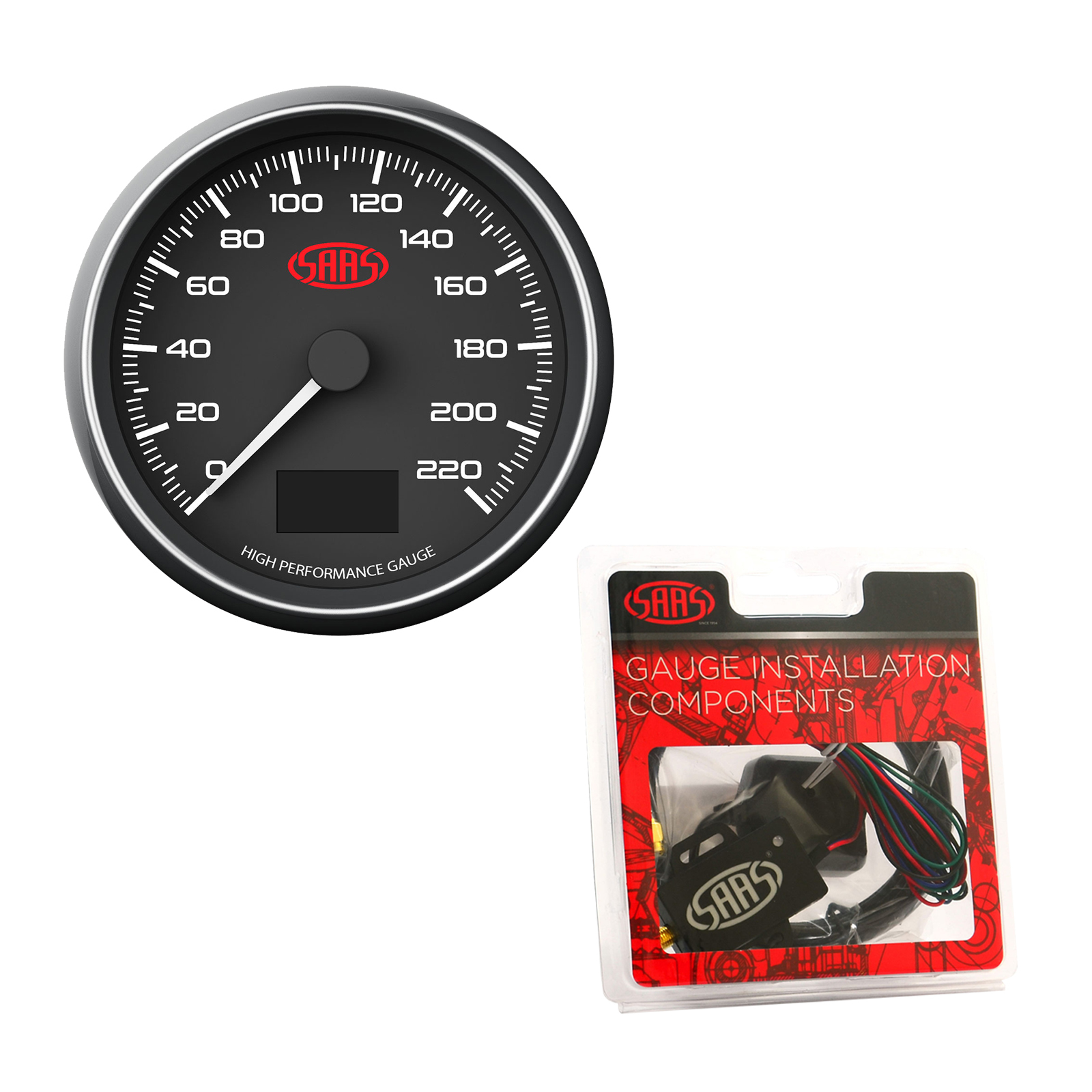

SAAS GPS Speedometer 0-220 KPH 3 1/8" 80mm In Dash Tripmeter Black Muscle Series

SAAS Speedometer 0-220 KPH 3 1/8" 80mm Black

and

SAAS Speedometer GPS Sensor and Antenna

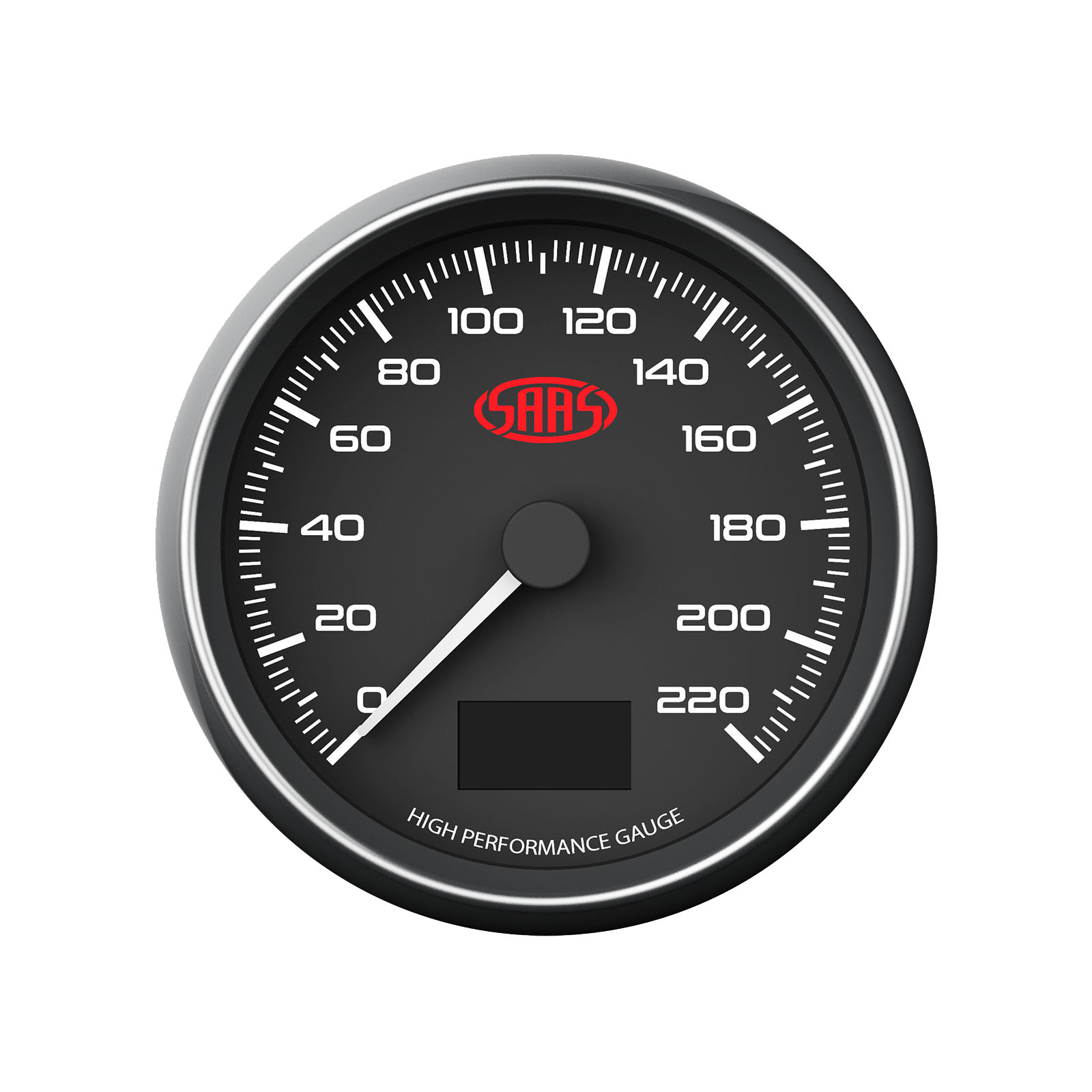

SAAS Speedometer 0-220 KPH 3 1/8" 80mm Black

Presenting the latest in SAAS Muscle Series Gauges - our full-featured 0-220 KPH Digital/Analogue Speedometer designed for in-dash installation.

FEATURES:

• Separate TRIP (A) and TRIP (B) Odometer
• Maximum (Peak) Speed Recall
• Built-In Adjustable Speed Alert
• Read Speed in either KPH or MPH
• Transfer your vehicle's original odometer reading onto the digital display
• Multi-Vehicle Pulse Rate Selector input that works with all electronic speed generators (optional parts may be required for cable-driven speedometers).
• OLED Multifunction Display window shows all user functions and setup functions

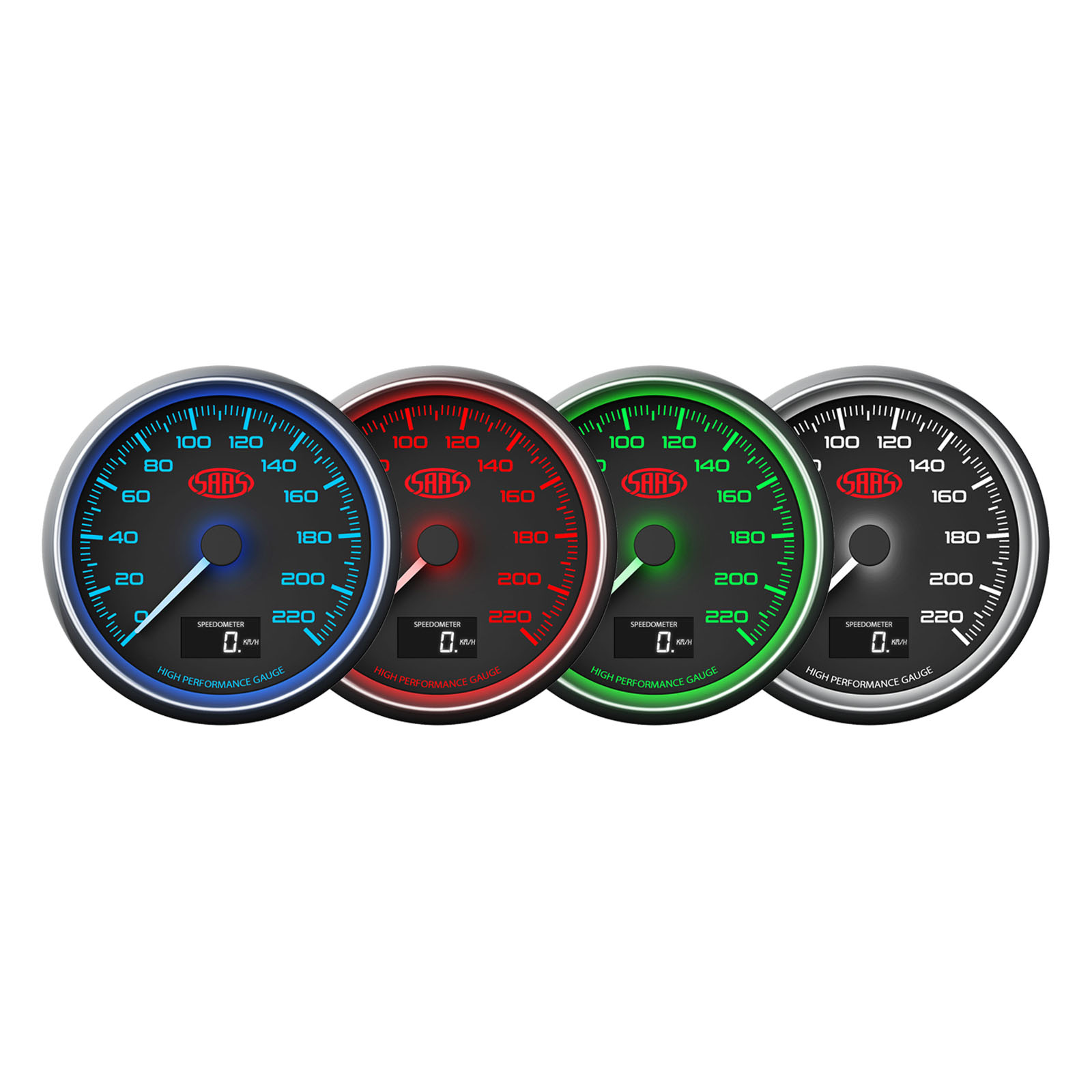

• Advanced Multi-Colour LED Lighting with 5 levels of dimming for each mode. Available colours include Red, Green, Blue, White
• Adjustable Needle Viewing Angle. Get a 100% read on your analogue needle.

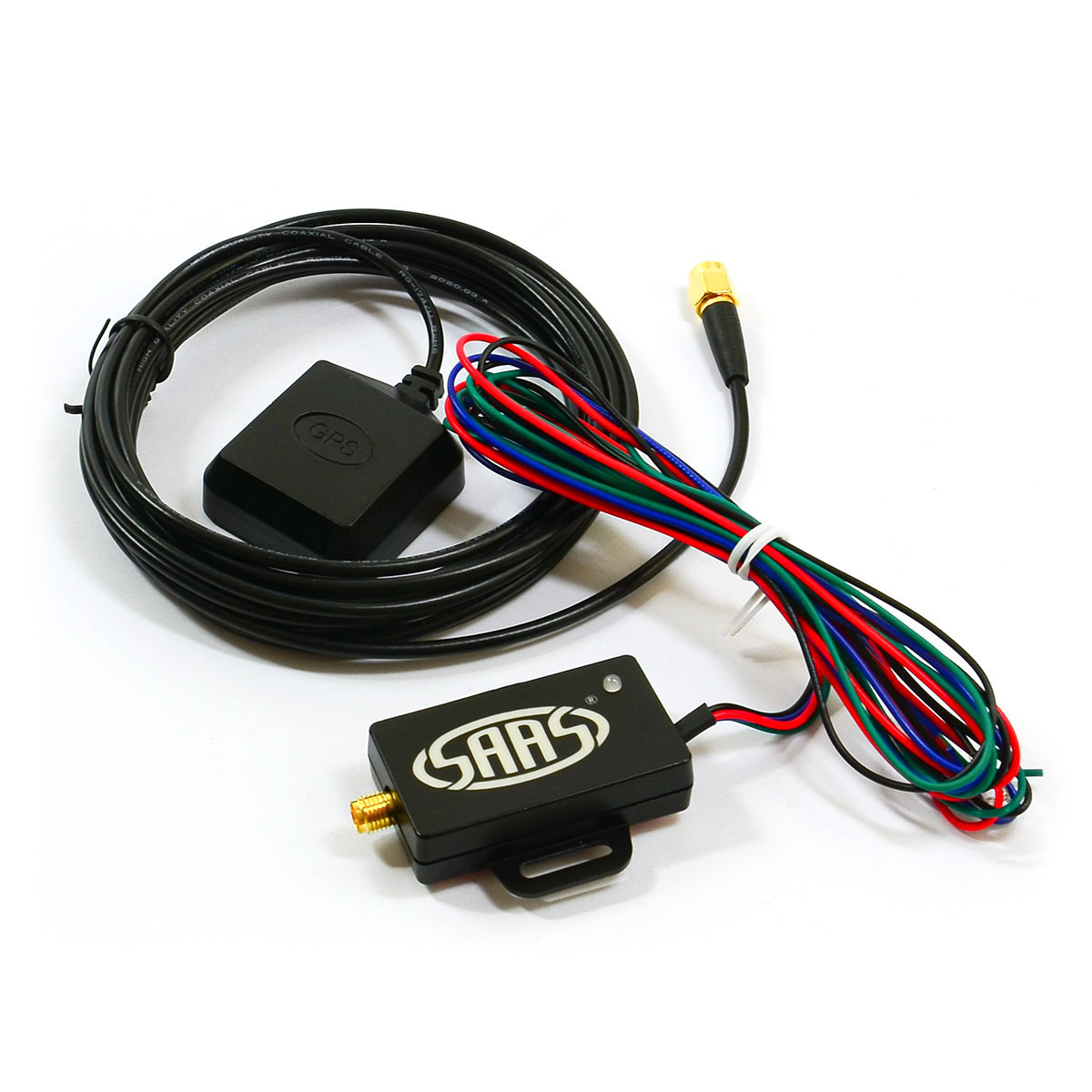

SAAS Speedometer GPS Sensor and Antenna

The perfect companion to our in-dash electronic Speedometer, our SG31650 Universal GPS Speed Sender can actually mate to any Speedometer, Odometer or Tachograph that requires an accurate speed signal (pulse).

If you have an older vehicle that does not have a Vehicle Speed Sender (sometimes also known as hall effect), then it can be both difficult and expensive to find a suitable solution. The SAAS GPS Sender provides a calibration-free unit which uses data received from the Global Positioning Satellite network. It calculates the 3-dimensional ground speed and provides a pulsed output with a high degree of accuracy.

FEATURES:

• Direct match to our SG31631/SG31632 in-dash speedometers
• Super fast and easy install (when mated to SAAS Speedometers)
• High Accuracy with 0.2% deviation (cable drive speedos are typically 3-5%)
  • Velocity < 0.06m/sec (~ 0.22 kph)
  • Altitude to within 10m
  • Horizontal to within 5m
• Anti GPS Drift technology
• Shockproof and circuit protected
• Pulse compensation for when driving through tunnels (5000 pulses per km)
• Low current draw
• Fast satellite acquisition time
  • First time setup < 60sec
  • Temporary power loss < 13 sec
  • Loss of satellite lock < 2sec

CABLE ASSIGNMENT:

• RED: Power + DC8~32V (may require resistor in higher V installs)
• Black: Ground/Earth
• GREEN: Speed Pulse Signal +'ve output
• BLUE: Speed Pulse Signal -'ve output
