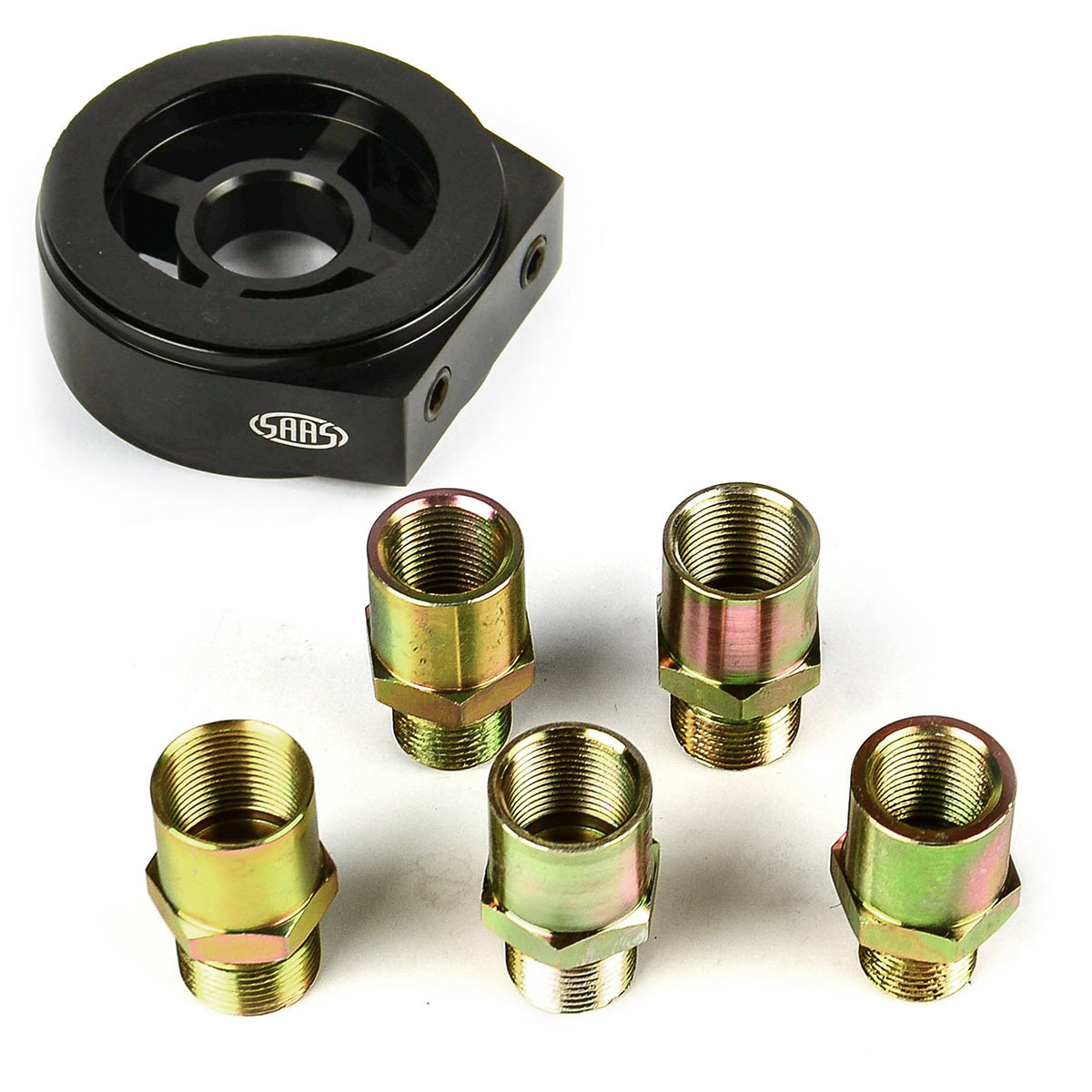

Oil Filter Sandwich Plate inc 5 Fittings Black Billet

• Sealing face diameter 55mm ID / 75mm OD
• 78mm diameter and 28mm thick sandwich plate
• 3 x 1/8-27 NPT accessory ports (blanking plugs supplied)
• Locates between your engine block and oil filter and allows for the installation of gauge senders to suit our SAAS range of gauges

Fitting Notes:

• Check you overall clearance from the end of your installed oil filter to ensure you can remove/service the oil filter
• Ensure your oil filter has the correct thread size and will seal against the sandwich plate face
  • If you are unsure of your filter thread, we recommend you use a filter manufacturer website to search for your vehicle's filter and obtain the relevant specs for the appropriate filter
• Mock up your sandwich plate with your intended accessories/senders/switches - HAND TIGHTEN ONLY at this stage
• Clean oil filter mount face and dummy fit the sandwich plate and bolt to the engine block by HAND TIGHTENING the oil filter adaptor bolt. The sandwich plate must seat flush against the block and not be able to be rotated once the oil filter adaptor bolt is hand nipped up. If you are able to rotate the sandwich plate at this point, you most likely have an oil pump bolt that is not suitable with the sandwich block.
• Once you are sure you have no rotation, remove the sandwich plate and provide a smear of oil to the gasket face and re-seat against the block.
• Slowly align the sandwich plate so your accessory outlets are facing the desired direction.
• Carefully tighten the oil filter adaptor bolt to 60Nm (44 ft lbs) whilst ensuring the plate does not rotate and avoid pinching/twisting the plate-to-block gasket.
• Remove and re-seat your accessories/senders/switches - even though these are 1/8NPT ports, it is recommended you apply a small amount of thread sealer or PTFE tape to avoid possible leaks.
• Proceed with oil filter installation per OE requirements.
