SAAS Oil Separator Catch Can for Toyota Landcruiser 79 Series 2009-On 1VD-FTV

SAAS Oil Separator Catch Can Toyota Landcruiser 79 Series 2009-Current 1VD-FTV

Suits the 4.5 Litre 1VD-FTV Turbo Diesel in the Toyota Landcruiser 79 Series 2009-Current models

An oil separator kits protect your modern diesel engine by sustainably reducing the amount of oil entering the engine from blow-by gas in the crankcase ventilation system.

Kit includes:

• SAAS Black Oil Catch Can
• SAAS Oil Catch Can Fitting kit for the 79 Series Toyota Landcruiser including all hardware and instructions required

Compact 4WD internal baffled catch tank for all diesel and petrol engine vehicles.

The tank has been designed with unique push-in lock fittings (no need for hose clamps), and a 3-way rotating mounting option bracket so the tank can be secured in all directions.

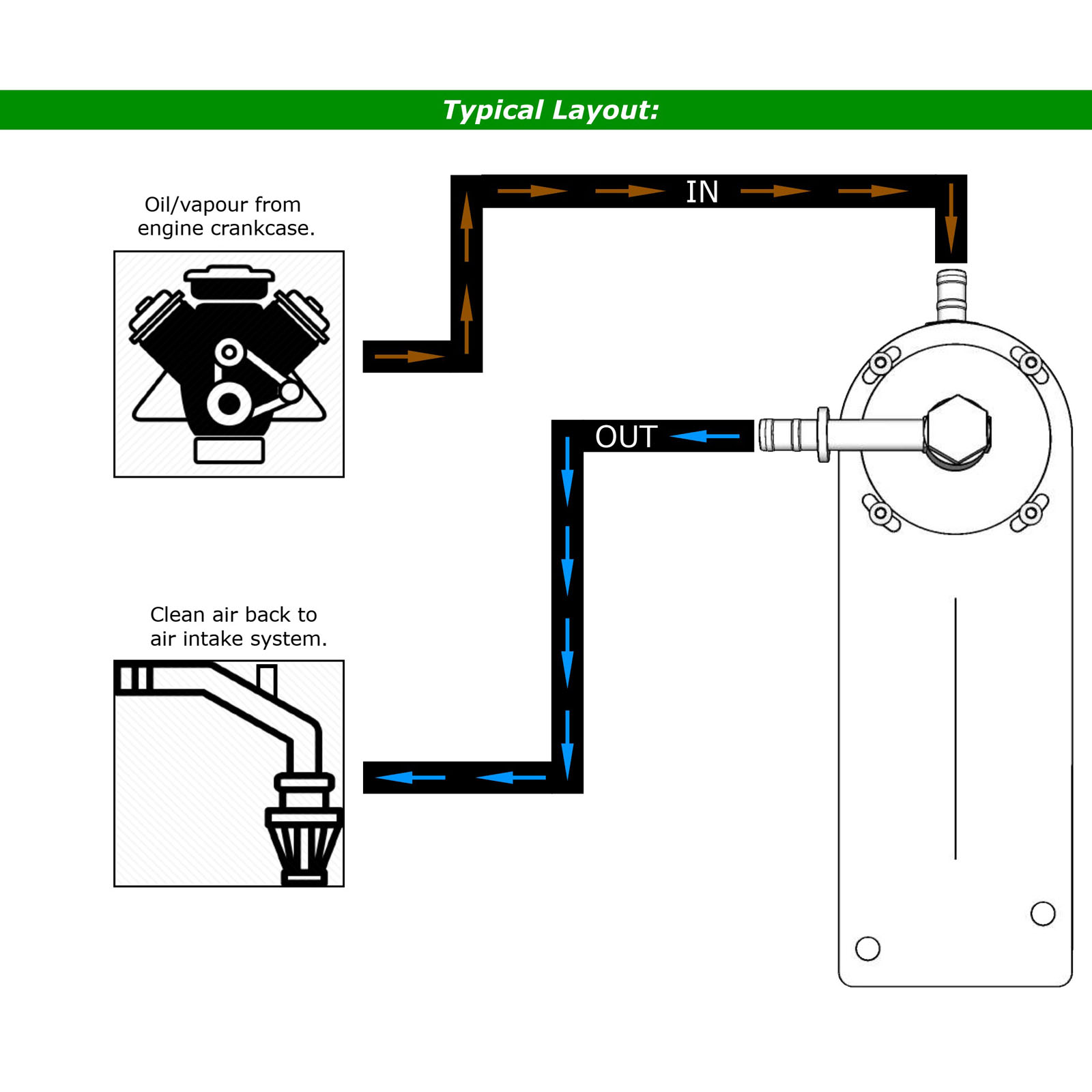

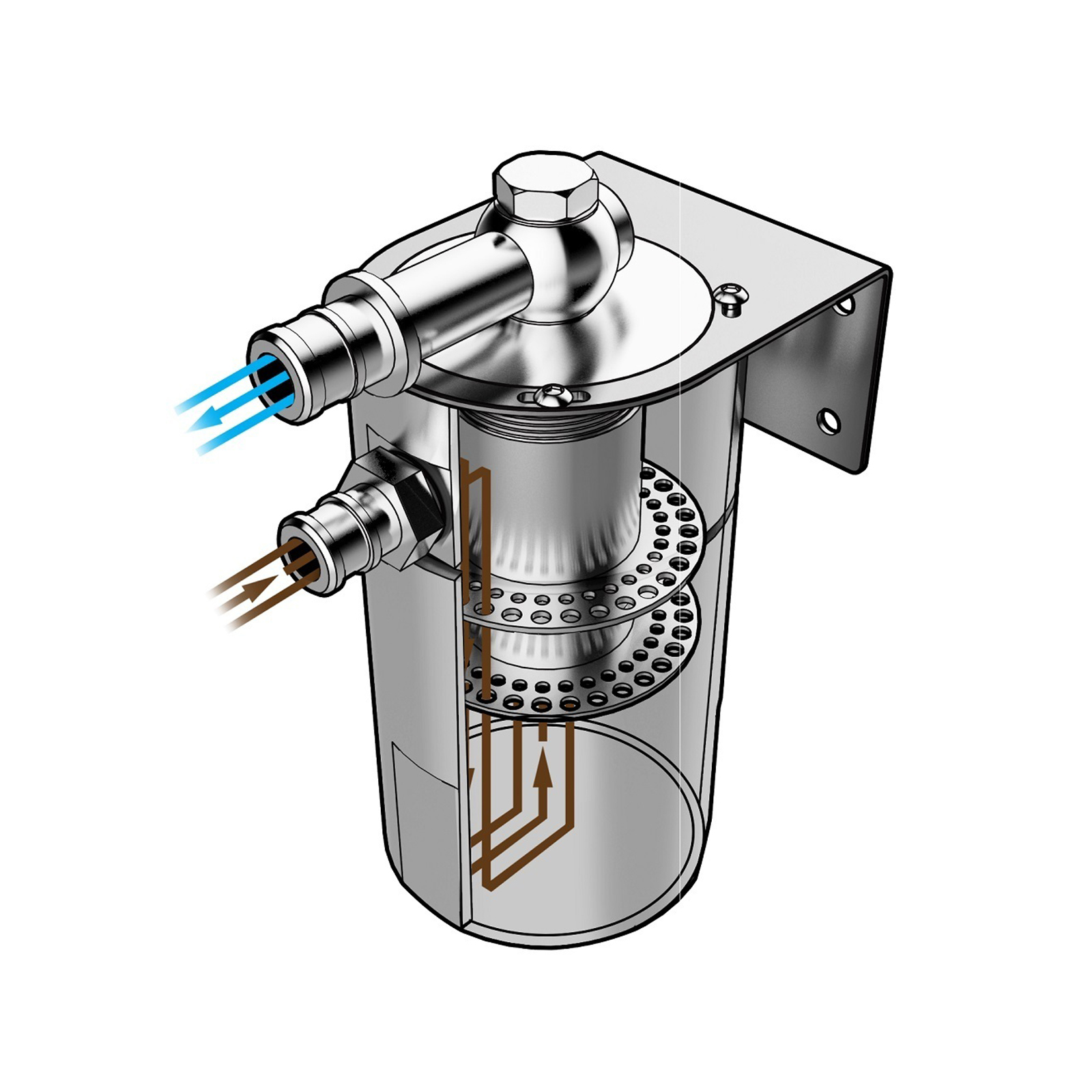

The internal pipe is directed to the bottom of the tank, which allows the oil to reside on the bottom (allowing clean air to vent back through the baffle system, free from oil).

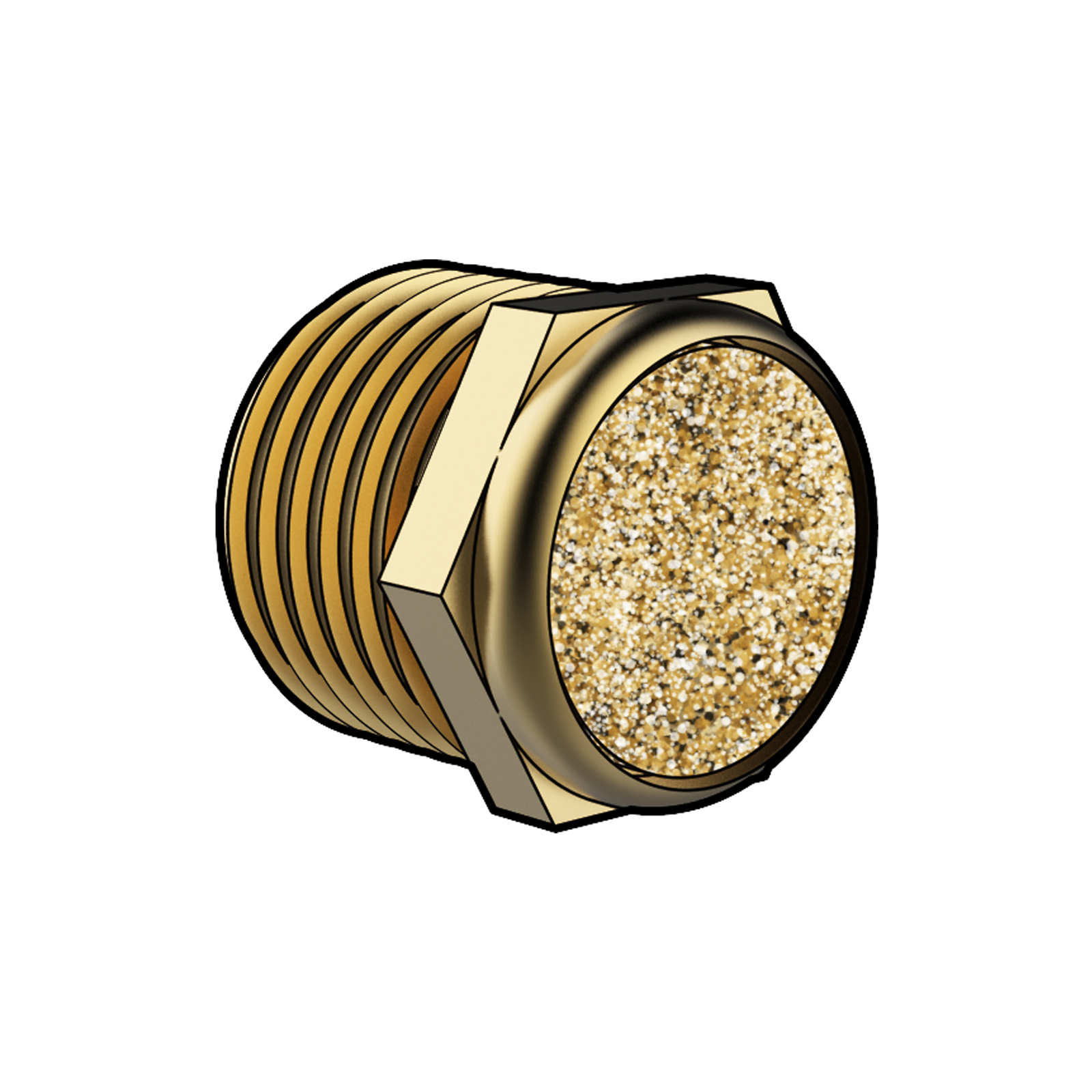

Tank includes a 40 Micron bronze filter on outlet designed to separate oil particles from the air.

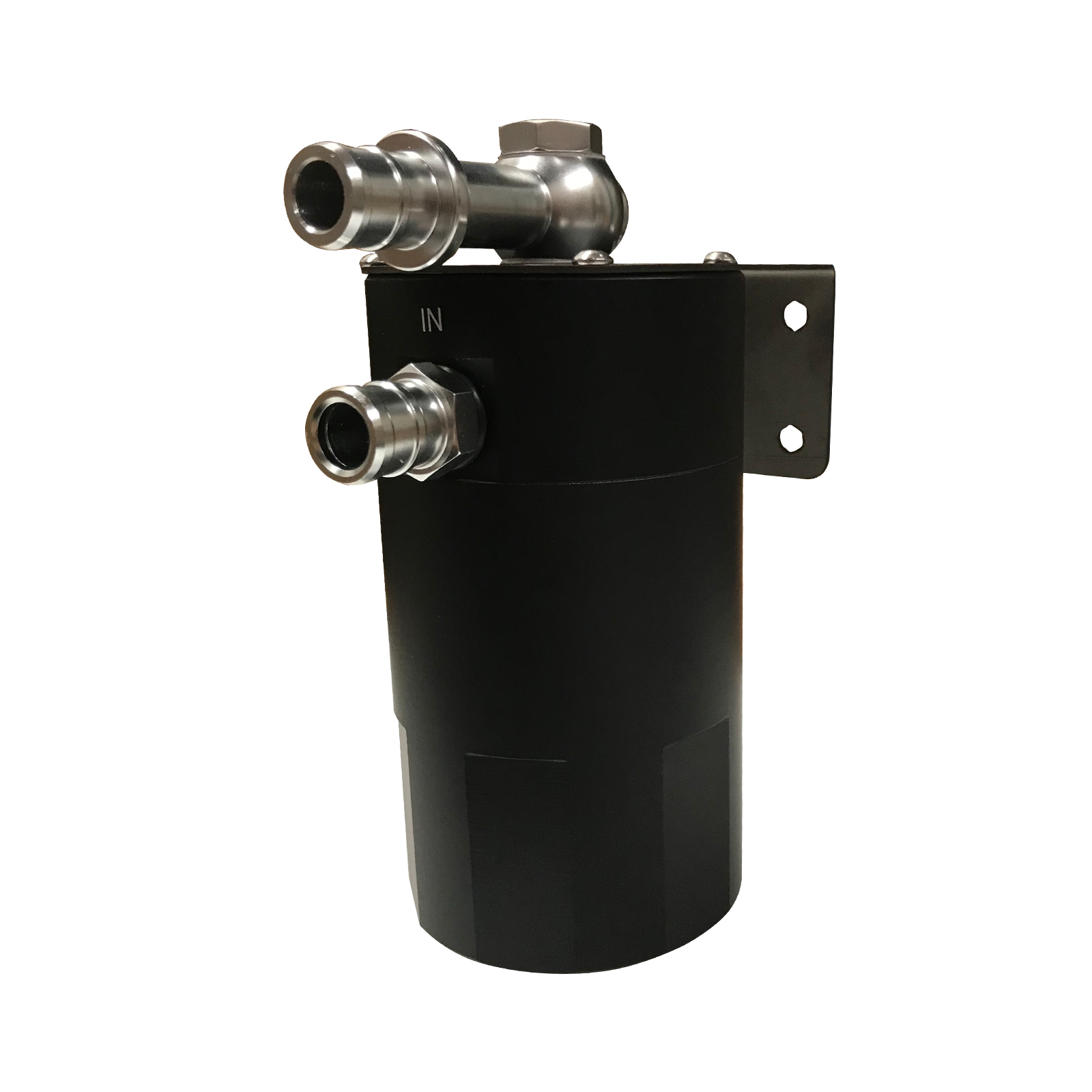

Catch Can:

• 500 cc capacity
• 180mm (height)
• 80mm (width)
• Machined from T6061 grade billet aluminium
• Internal Baffles
• 3-way rotating mounting option
• 360 degree Top Swing Banjo Outlet fitting
• Push-in lock Fittings (no need for hose clamps)
• Supplied with 16mm hose fittings (ID~12mm) (thread is M16 x 1.5)
• Supplied with 600mm Drain hose with tap and tank fitting
• Colour Black (Silver also available)

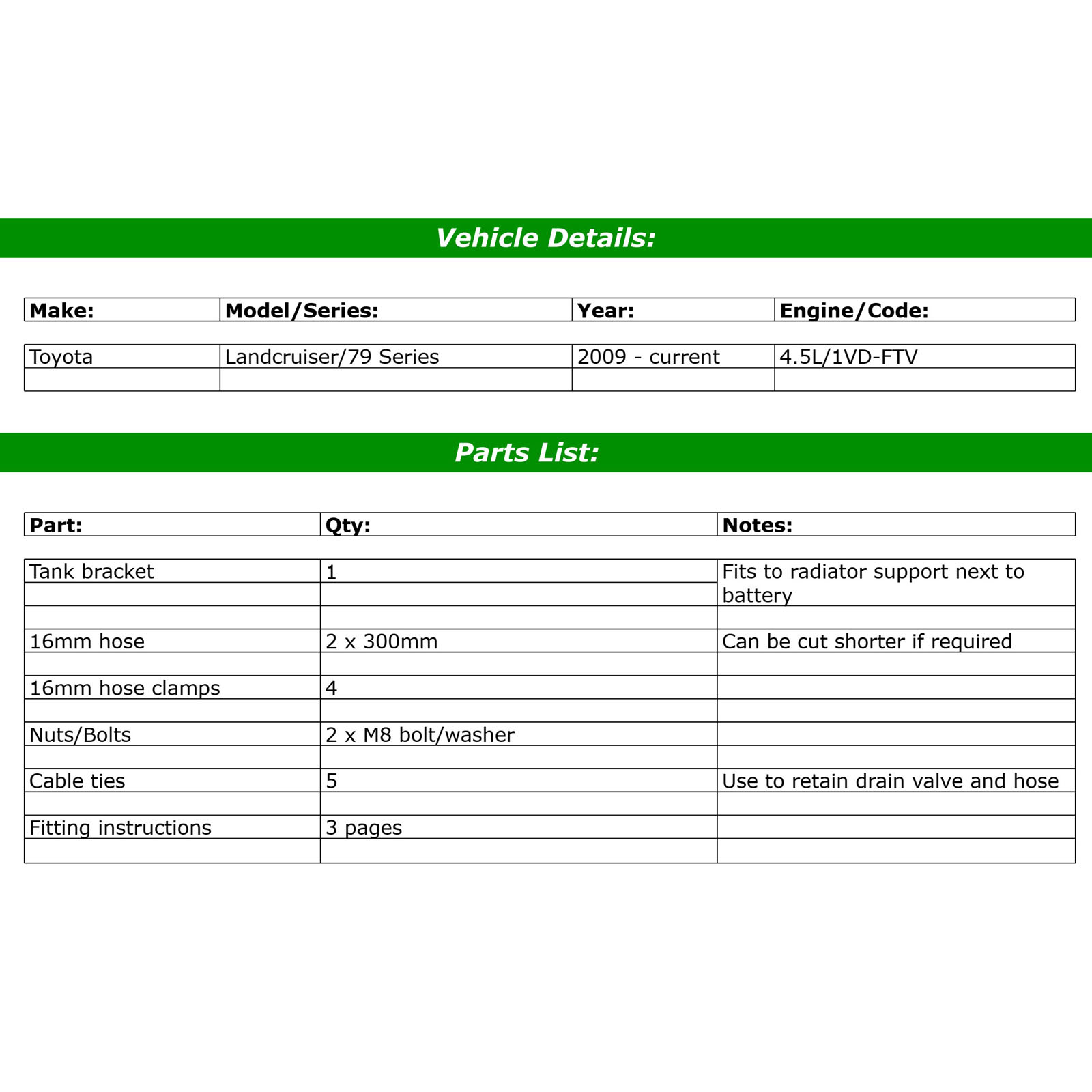

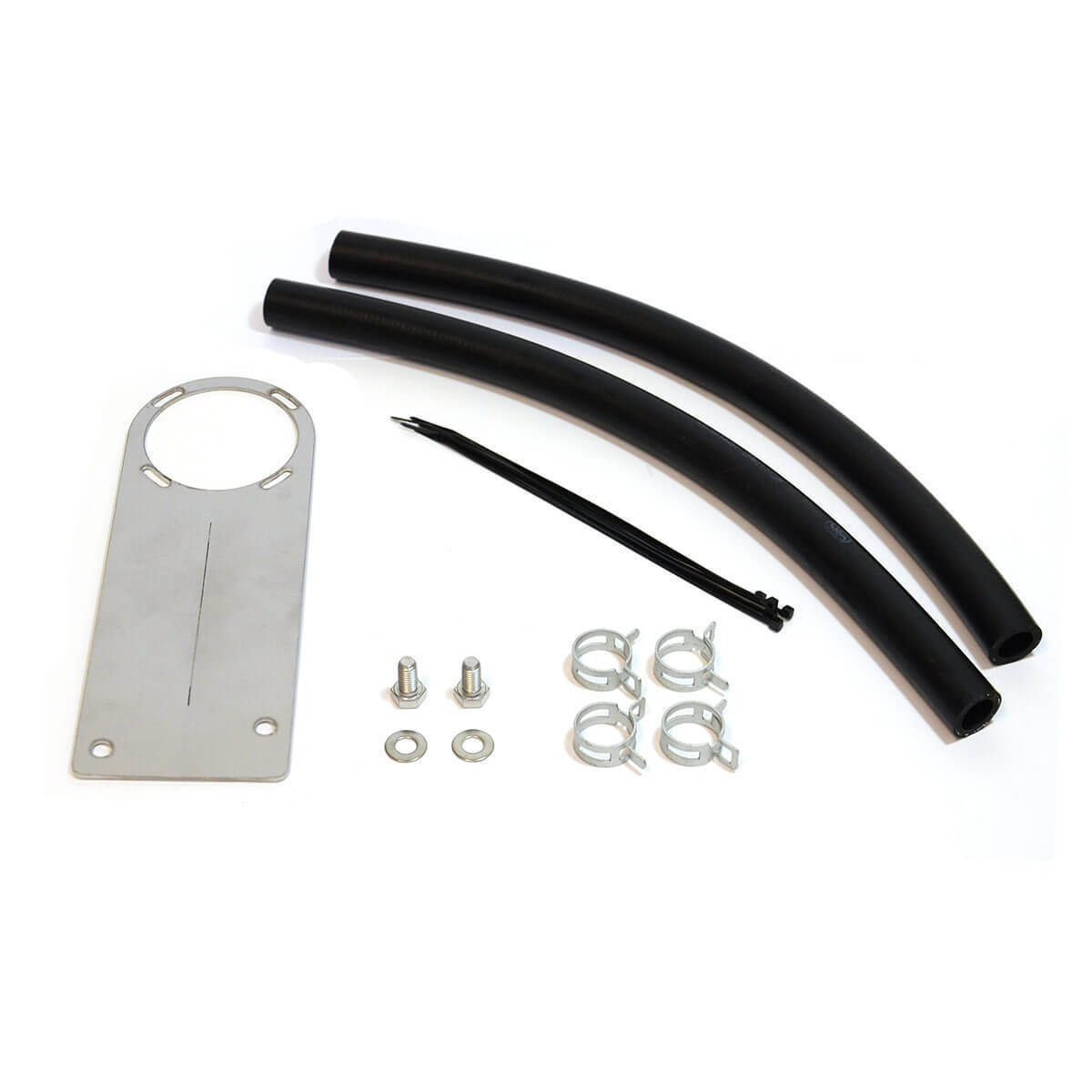

Fitting Kit:

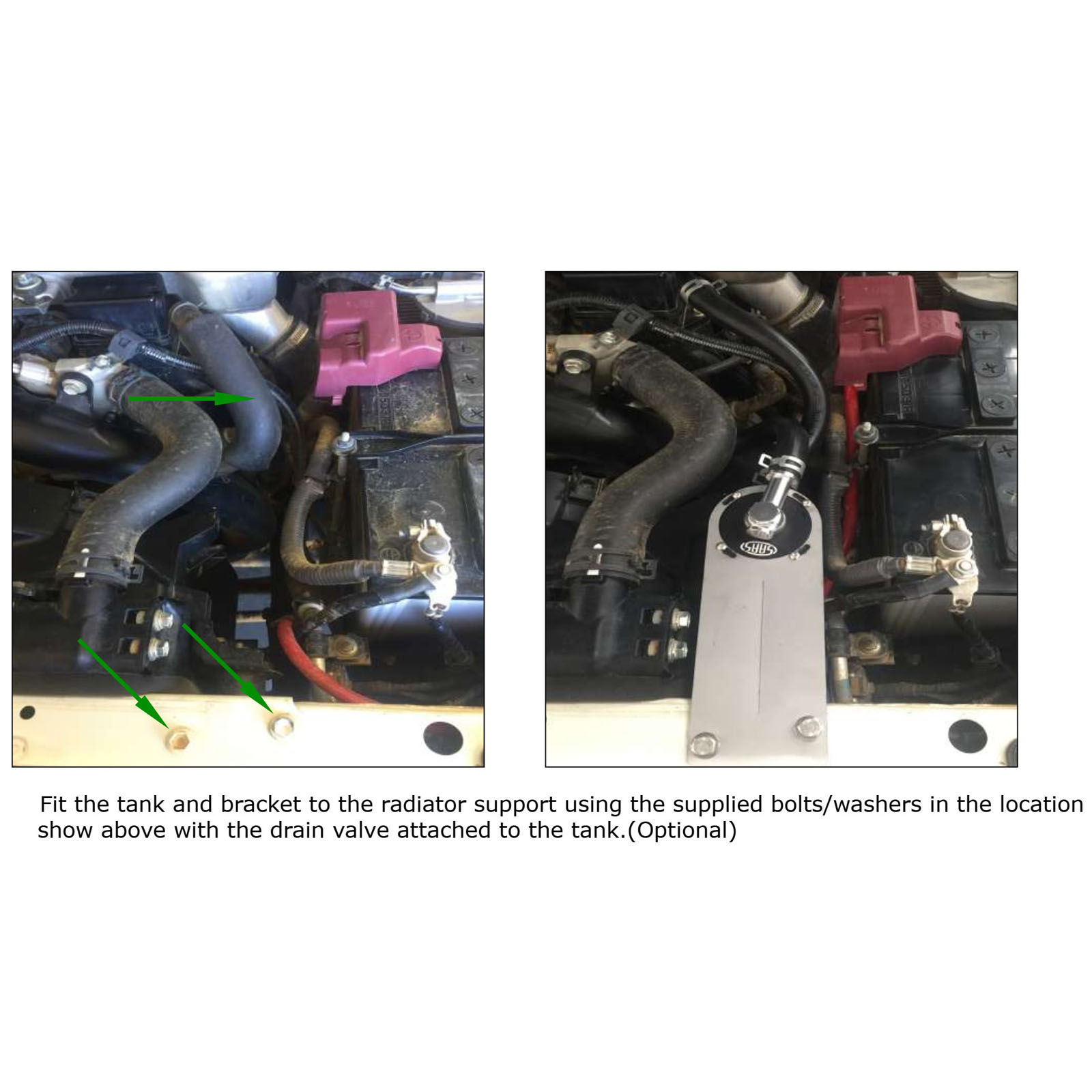

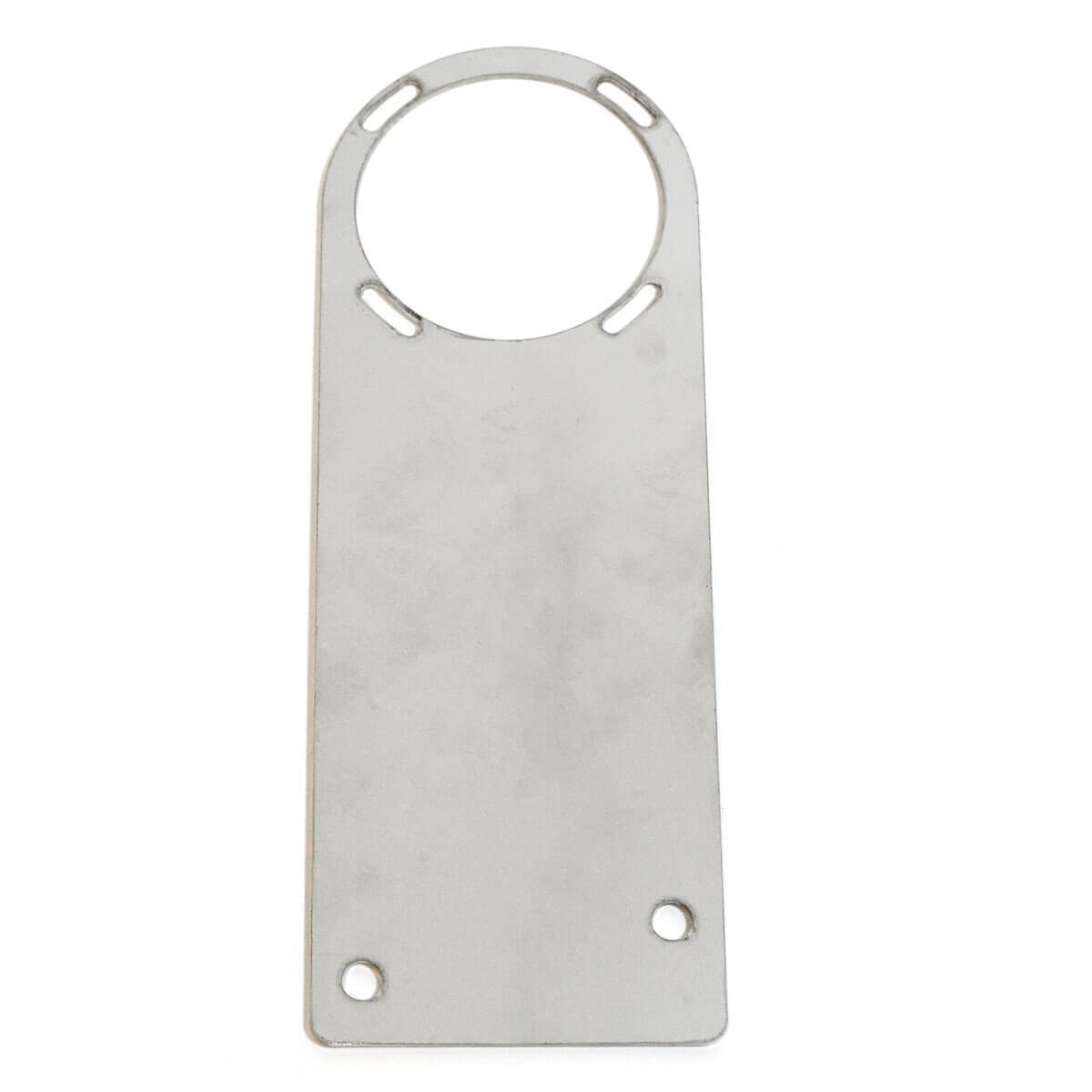

• Tank bracket which fits to radiator support next to battery
• 16mm Hose and fittings to suit 79 Series Toyota Landcruiser installation
