SAAS Oil Separator Catch Can Ford Ranger PX II III 3.2 2.2 Turbo Diesel 2015-On

SAAS Oil Separator Catch Can Ford Ranger PX II III 3.2 2.2 Turbo Diesel 2015-On

Suits the 2.2 (P4AT) and 3.2-litre (P5AT) Turbo Diesel

in the Ford PX Ranger from 2015-Current Model

An oil separator kits protect your modern diesel engine by sustainably reducing the amount of oil entering the engine from blow-by gas in the crankcase ventilation system.

Kit includes:

• SAAS Billet Alloy Oil Catch Can
• SAAS Oil Catch Can Fitting kit for the PX Ranger including all hardware and instructions required

Compact 4WD internal baffled catch tank for all diesel and petrol engine vehicles.

The tank has been designed with unique push-in lock fittings (no need for hose clamps), and a 3-way rotating mounting option bracket so the tank can be secured in all directions.

The internal pipe is directed to the bottom of the tank, which allows the oil to reside on the bottom (allowing clean air to vent back through the baffle system, free from oil).

Tank includes a 40 Micron bronze filter on outlet designed to separate oil particles from the air.

Catch Can:

• 500 cc capacity
• 180mm (height)
• 80mm (width)
• Machined from T6061 grade billet aluminium
• Internal Baffles
• 3-way rotating mounting option
• 360 degree Top Swing Banjo Outlet fitting
• Push-in lock Fittings (no need for hose clamps)
• Supplied with 16mm hose fittings (ID~12mm) (thread is M16 x 1.5)
• Supplied with 600mm Drain hose with tap and tank fitting
• Colour ' Silver Aluminium (Black also available)

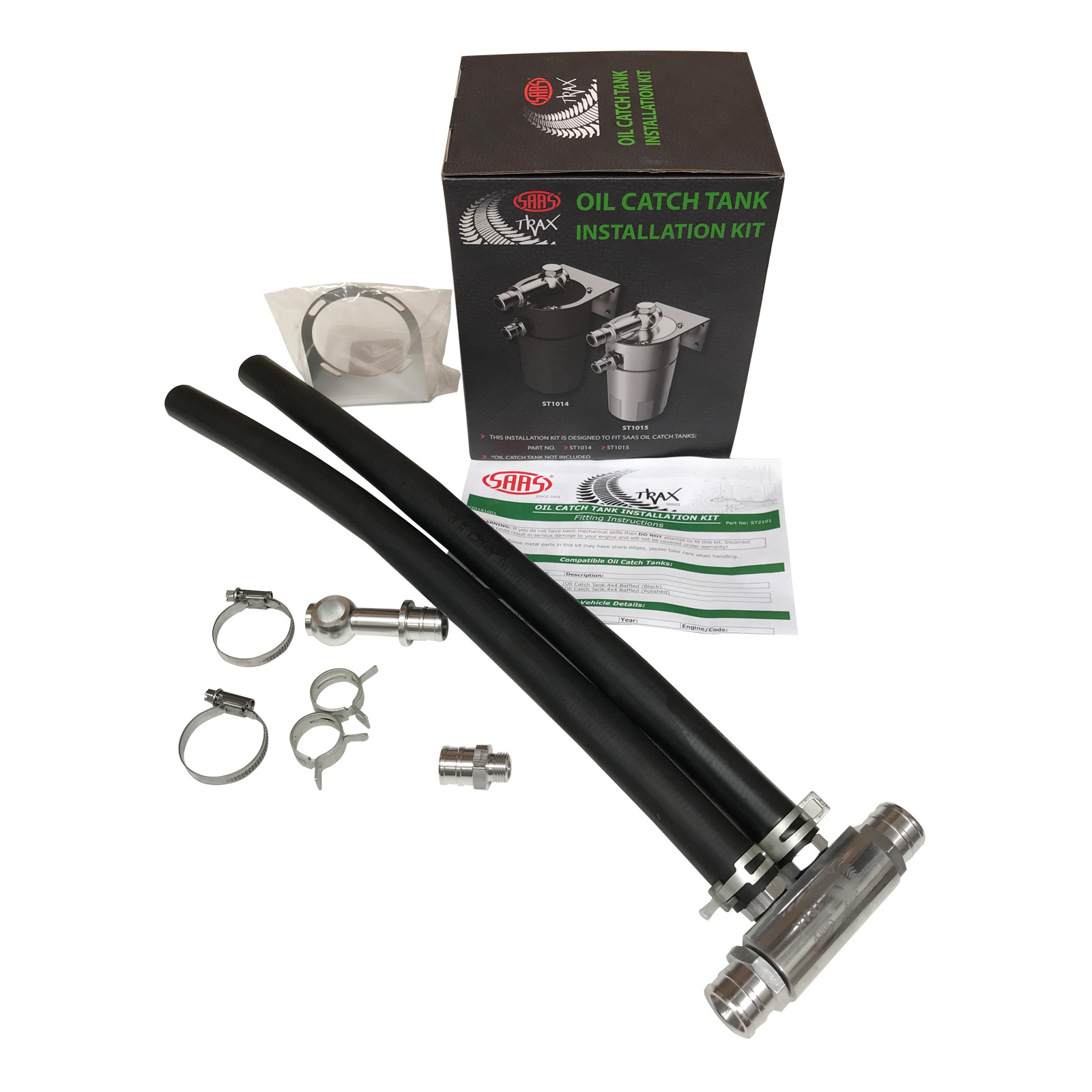

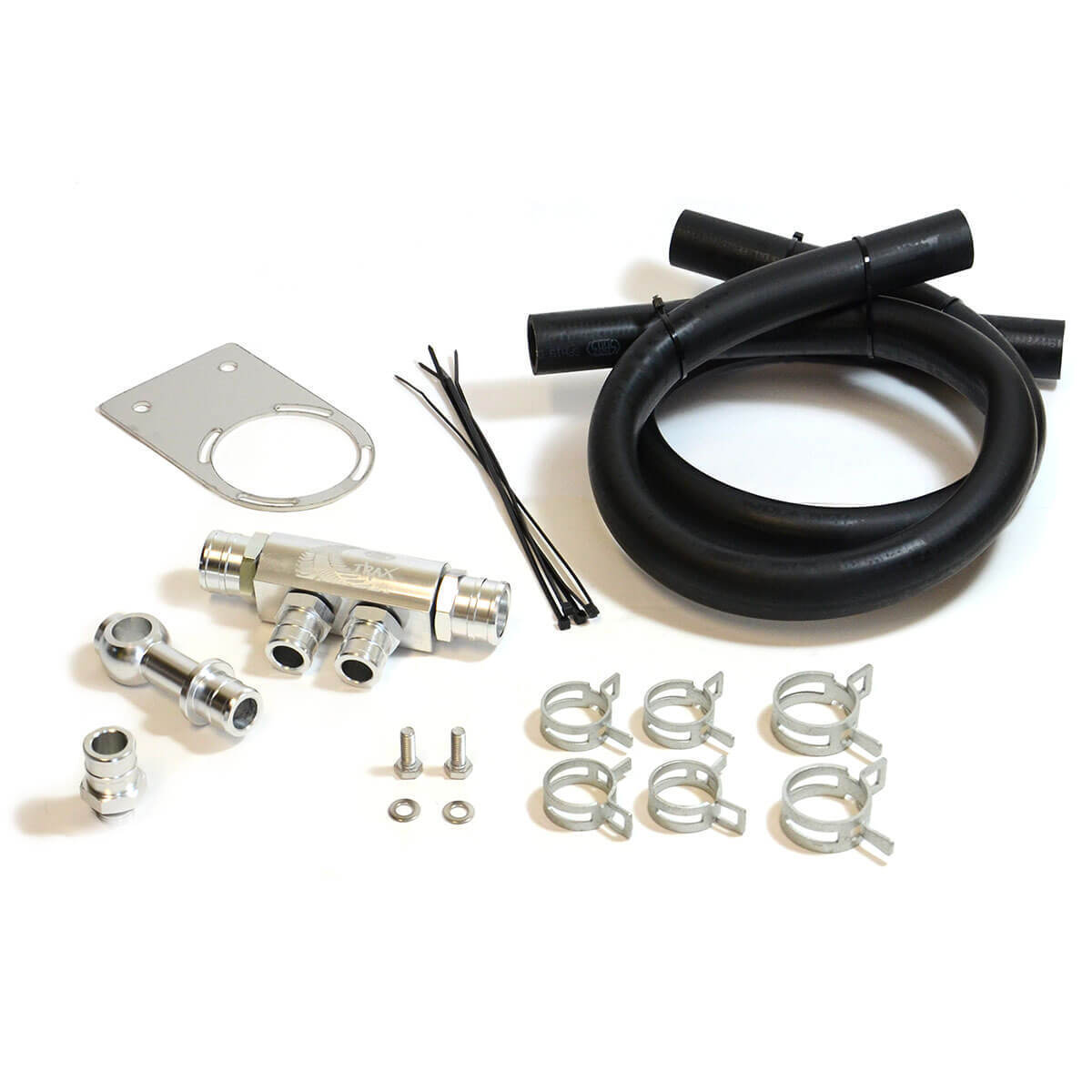

Fitting Kit:

• Tank bracket which mounts on the radiator support
• 19mm Hose and fittings to suit Ford Ranger installation
• Hose splitter box (pre-installed) as shown in the photo, making for easy installation
