Silicone Intercooler to Throttle Pipe for Mitsubishi Triton 2.5L 3.2L ML-MN 2006-2015

SAAS Silicone Intercooler to Throttle Pipe

for Mitsubishi Triton 2.5L 3.2L ML 2006-09 | MN 2009-15

SSH3103

 SUITS:

• 4WD Model with Variable Vane turbo IHI VT16/VT17
• EXCLUDES 2WD ML/MN with 100KW engine
• EXCLUDES 4WD ML 4M41 with TF035(HL) turbo
• 2.5L and 3.2L
• 4D56 2.5L Turbo Diesel
• 4M41 3.2L Turbo Diesel
• Mitsubishi Triton ML 2006 - 2009
• Mitsubishi Triton MN 2009 - 2015
• Mitsubishi Challenger PB PC 2.5L

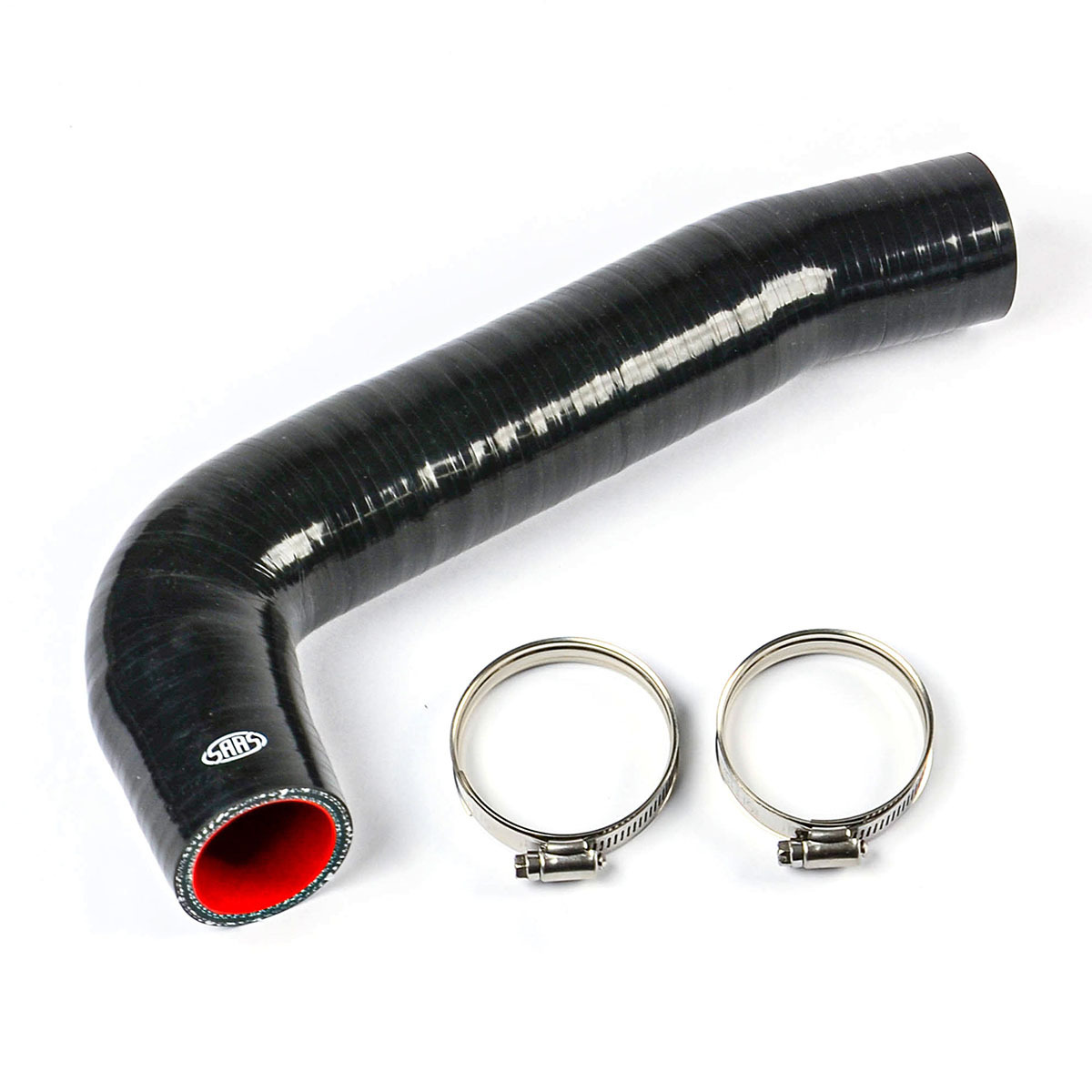

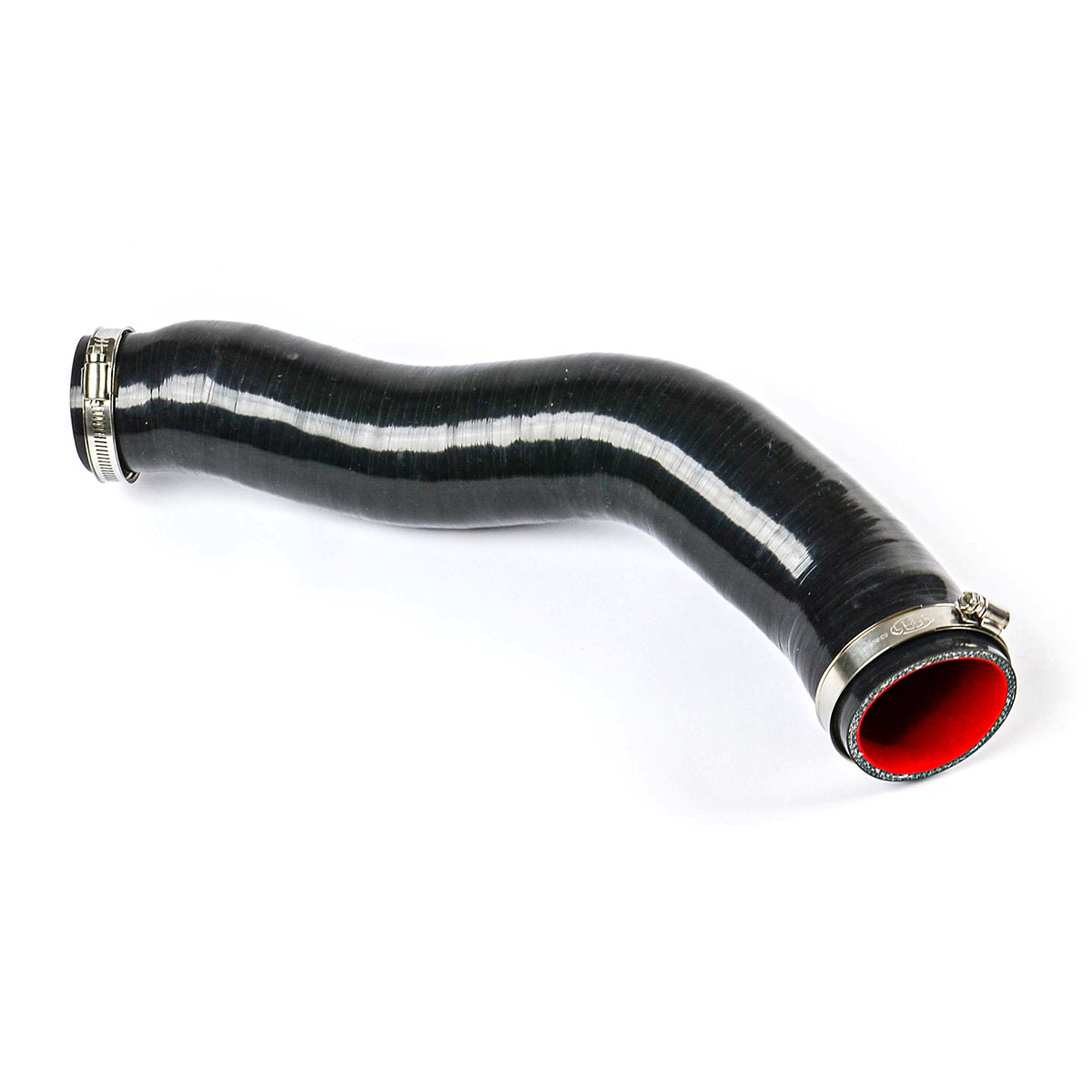

Our 5 Ply Silicone intercooler hoses are the ideal replacement/upgrade for factory or OE style rubber hoses and come supplied with our dual bead stainless hose clamps

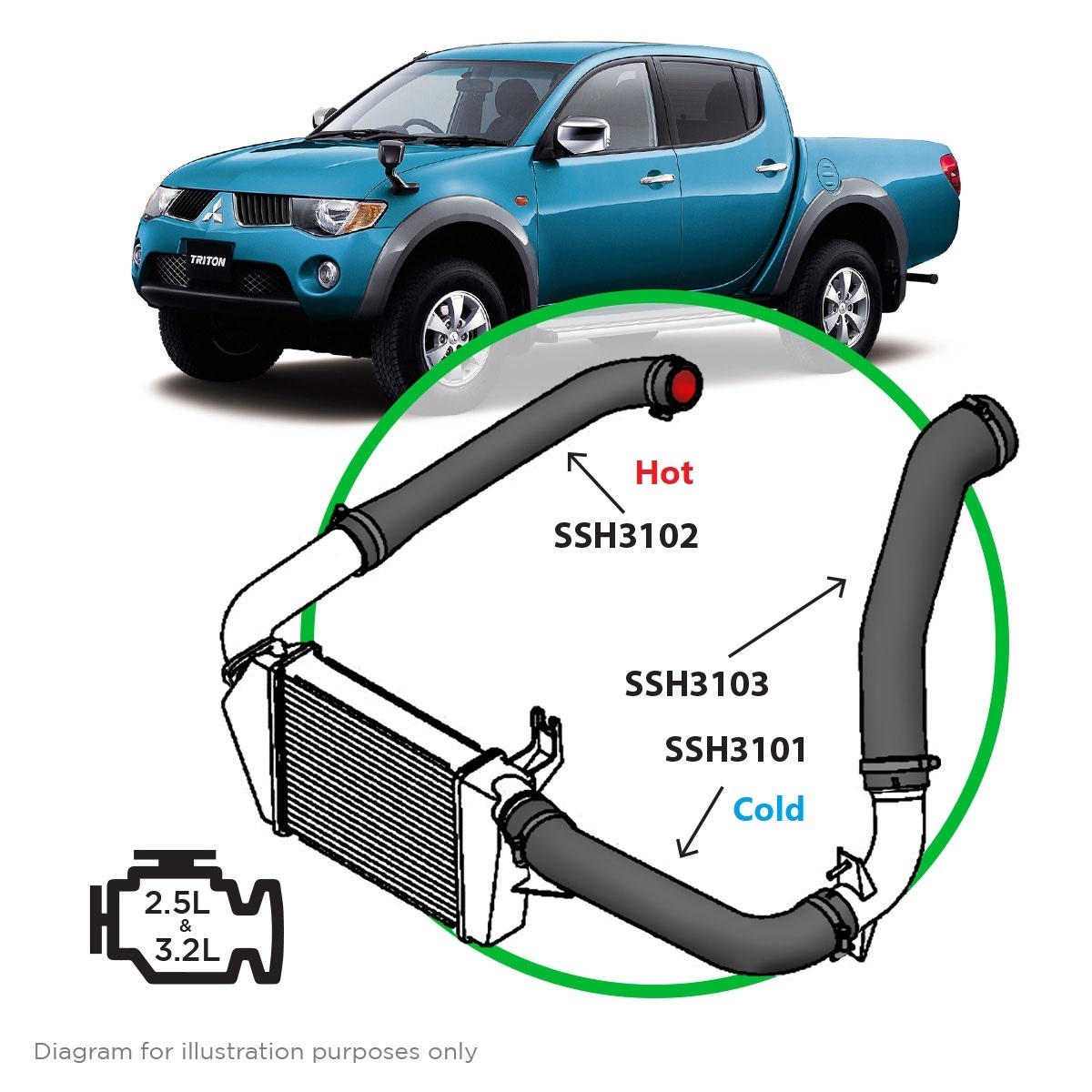

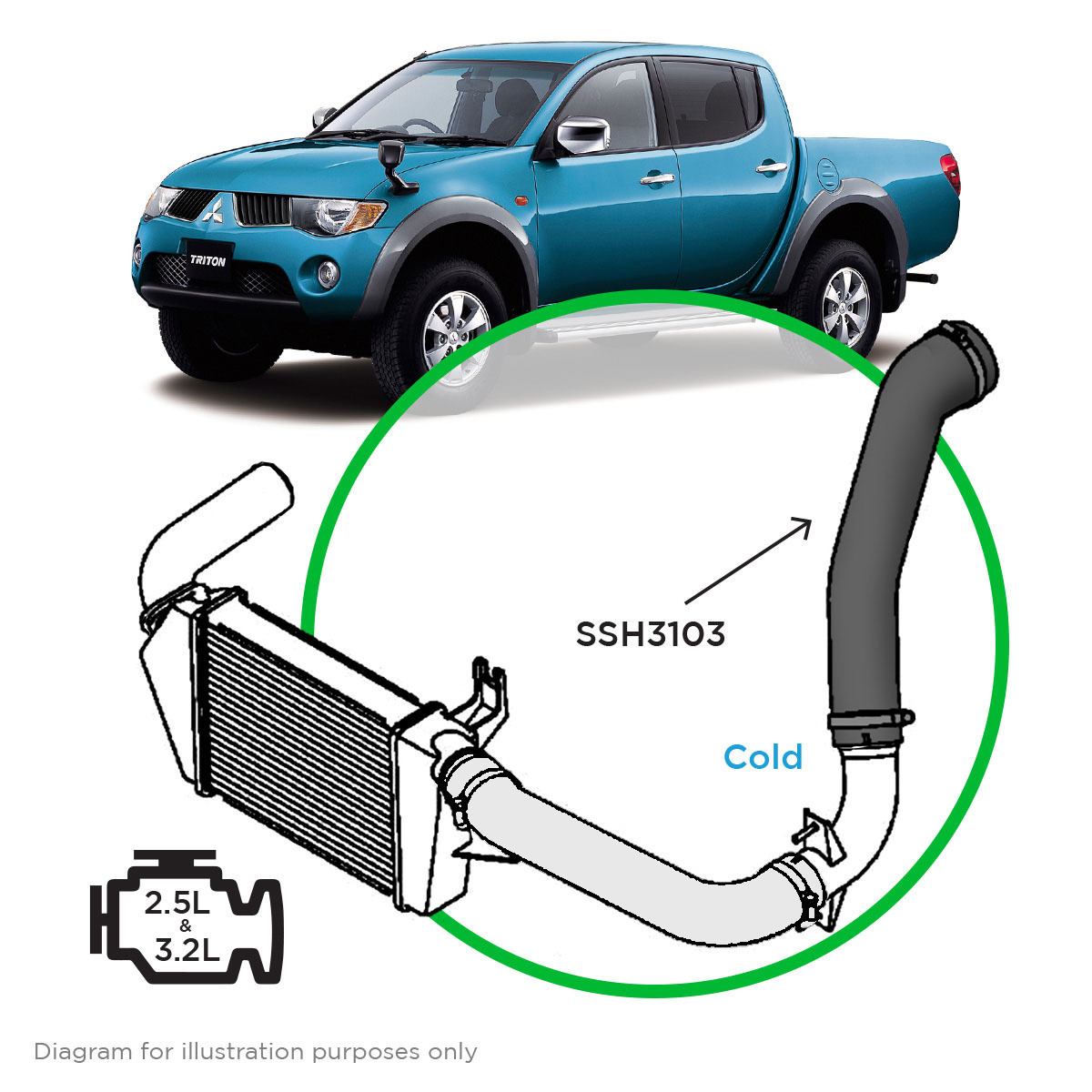

The SAAS SSH3103 is designed to replace the factory intercooler intake pipe to throttle (refer to layout diagram).

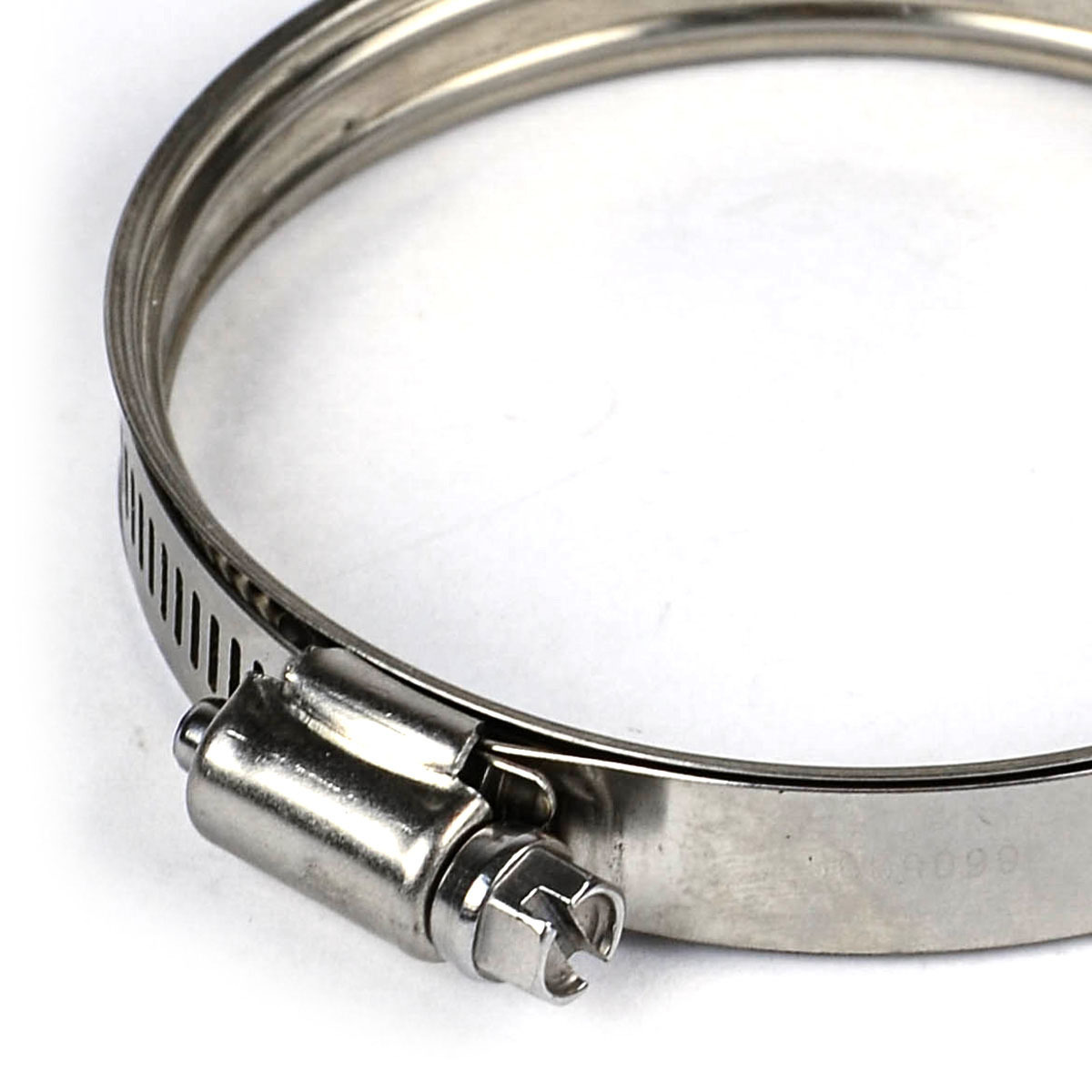

The hose also features our new Stainless Dual Bead clamps which provide greater clamping pressure whilst mitigating the risk of cutting into your hose. Don’t be caught out with a split rubber hose roadside – upgrade to SAAS Silicone hoses today.FEATURES:

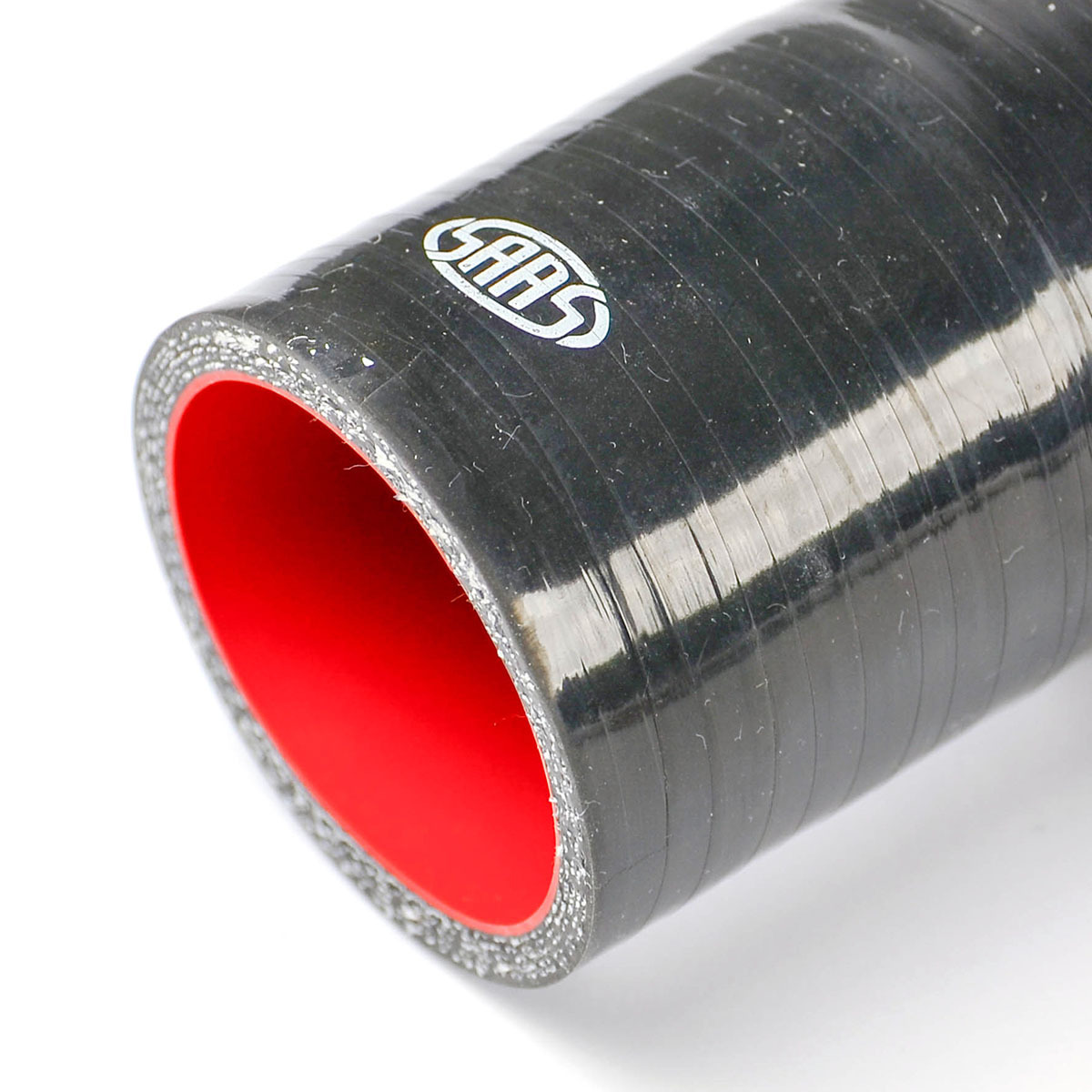

• Smooth Form 5 Ply polyester reinforced silicone
• 6mm wall thickness
• Red FMVQ Fluorosilicone lining providing greater resistance to oil mist and EGR by-products (see note)
• Stable operating temp from -50°C to +200°C
• 4:1 burst pressures at safe working loads
• Stainless Dual Bead Hose Clamps included
• Designed to be used with Factory intercooler

FVMQ Oil Resistence: FVMQ Fluorosilicones offer the highest level of oil resistence amongst the most common elastomers and are a popular solution within the aviation industry
